Disassembly/Reassembly Procedures: Radio Reassembly - Detailed 5-35
4. Slide the chassis assembly into the front housing with the volume and channel selector shafts
to the respective opening on the housing. Snap the bottom side of the chassis assembly into
the housing as shown in Figure 5-29.

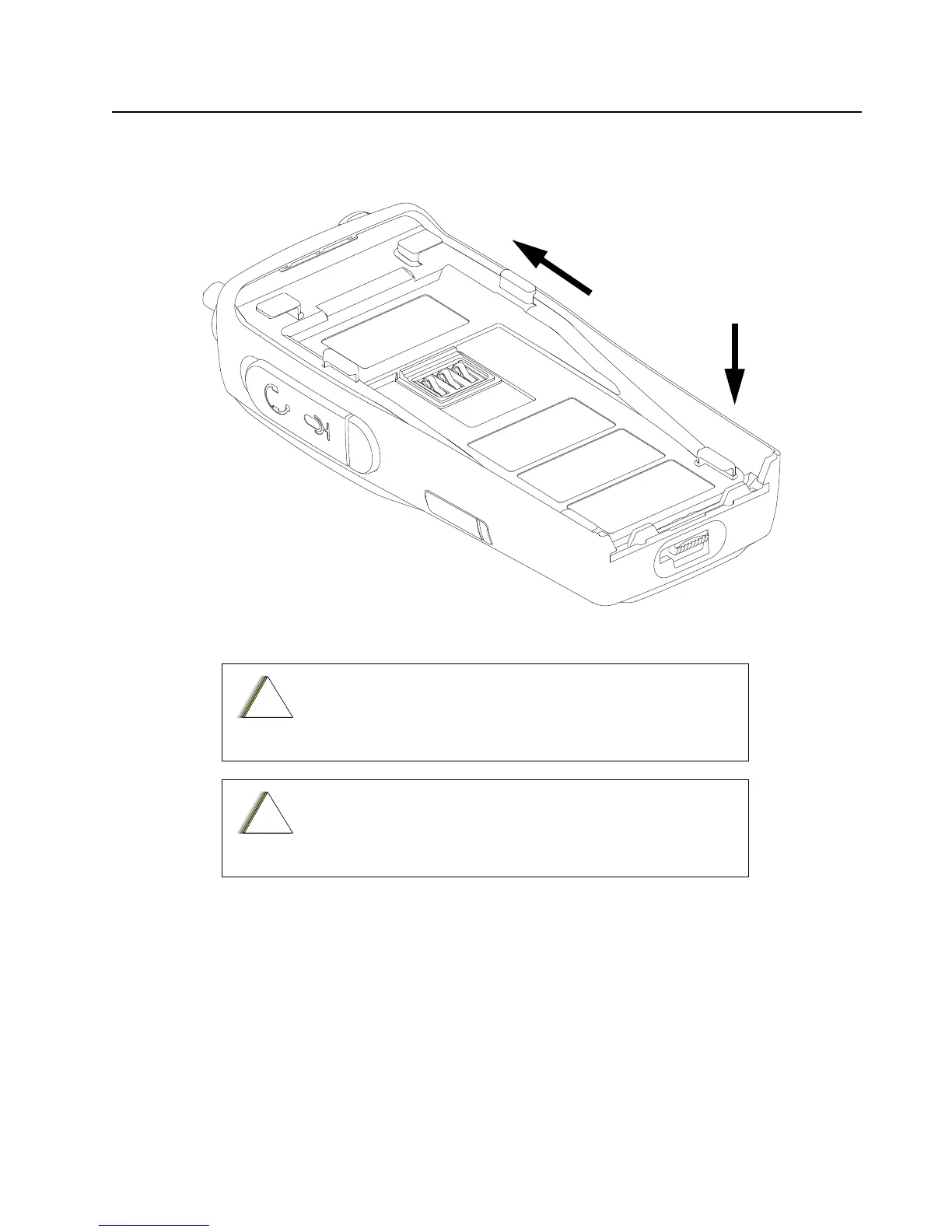

Figure 5-29. Inserting Chassis Assembly into Housing
5. Attach the volume and channel selector knobs into their respective shafts.
6. Attach the antenna and battery.
Make sure the speaker and microphone wires are not pinched
in between the audio jack shroud and housing.
Make sure the main O-ring is not pinched in between the
chassis and housing.
