Motorola DP1400 Series

5-34 Disassembly/Reassembly Procedures: Radio Reassembly - Detailed

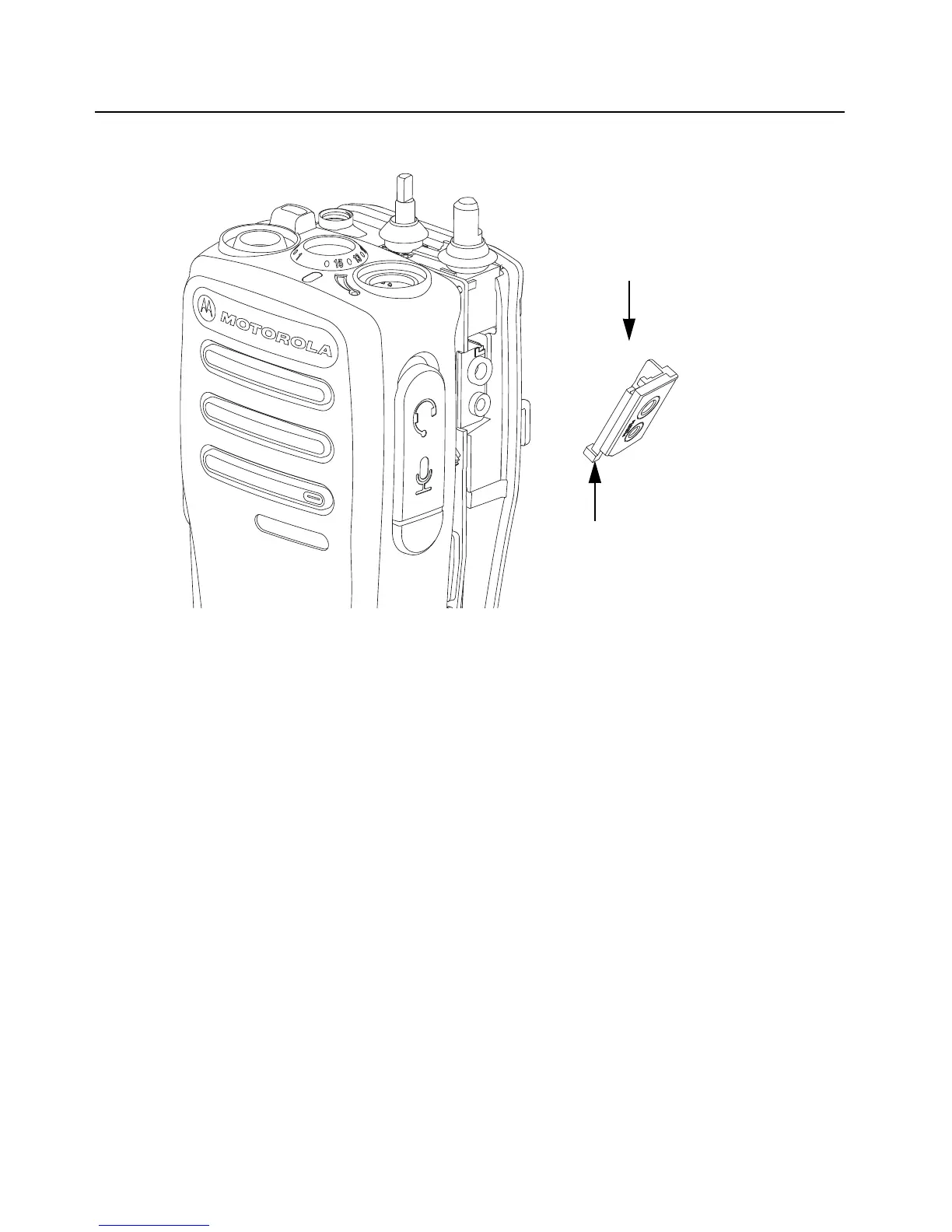

Figure 5-28. Audio Jack Shroud Reassembly
3. Attach the audio jack shroud assembly to the accessory connector on the main board by
inserting the bottom edge of the shroud first, followed by the top edge as shown in Figure 5-
28.
Audio Jack Shroud
Bottom Edge (insert first)
