Motorola GP340 Service Information

2-8 THEORY OF OPERATION
4.2 Voltage Controlled Oscillator (VCO)
(Refer to Figure 2-5 and the Voltage Controlled Oscillator schematic diagram)
The VCOBIC (U241) in conjunction with the Fractional-N synthesizer (U201) generates RF in both
the receive and the transmit modes of operation. The TRB line (U241 pin 19) determines which
oscillator and buffer will be enabled. A sample of the RF signal from the enabled oscillator is routed
from U241 pin 12, through a low pass filter, to the prescaler input (U201 pin 32). After frequency
comparison in the synthesizer, a resultant CONTROL VOLTAGE is received at the VCO. This
voltage is a DC voltage between 3.5V and 9.5V when the PLL is locked on frequency.
The VCOBIC(U241) is operated at 4.54 V (VSF) and Fractional-N synthesizer (U201) at 3.3V. This
difference in operating voltage requires a level shifter consisting of Q260 and Q261 on the TRB line.
The operation logic is shown in Table 2-1.

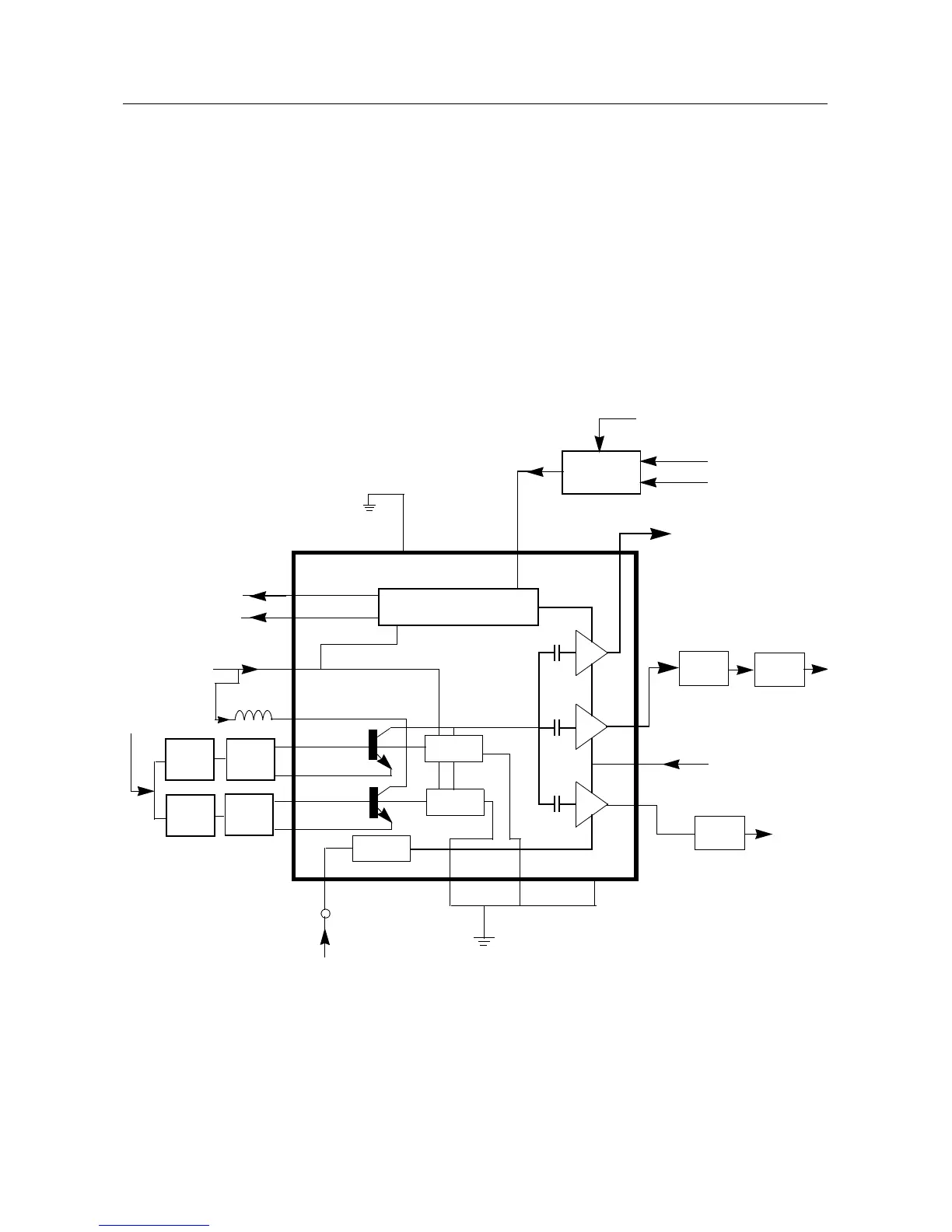

Figure 2-5 VCO Block Diagram
Presc
RX
TX
Matching
Network
Low Pass
Filter
Attenuator
Pin8
Pin14
Pin10
Level Shifter
Network
5V
(U201 Pin28)
VCC Buffers
TX RF Injection
U201 Pin 32
AUX4 (U201 Pin3)
AUX3 (U201 Pin2)
Prescaler Out
Pin 12Pin 19
Pin 20
TX/RX/BS
Switching Network
U241
VCOBIC
Rx
Active Bias
Tx
Active Bias
Pin2
Rx-I adjust
Pin1
Tx-I adjust
Pins 9,11,17
Pin18
Vsens
Circuit
Pin15
Pin16
RX VCO
Circuit
TX VCO
Circuit
RX Tank
TX Tank
Pin7
Vcc-Superfilter
Collector/RF in
Pin4
Pin5
Pin6
RX
TX
(U201 Pin28)
Rx-SW
Tx-SW
Vcc-Logic
(U201 Pin28)
Steer Line
Voltage
(VCTRL)
Pin13
Pin3
TRB_IN
LO RF INJECTION
VSF
VSF
VSF

Motorola GP340 Specifications

Power and Battery

power supply	Rechargeable Battery 7.5v
battery life with standard high capacity NiMH battery (low power)	11 hours
battery life with standard high capacity NiMH battery (high power)	8 hours
battery life with ultra high capacity NiMH battery (low power)	14 hours
battery life with ultra high capacity NiMH battery (high power)	11 hours
battery life with NiCD battery (low power)	12 hours
battery life with NiCD battery (high power)	9 hours
battery life with Li-lon battery (low power)	11 hours
battery life with Li-lon battery (high power)	8 hours

Operating Environment

operating temperature	-20°C to +55°C
sealing	Withstands rain testing per MIL STD 810 C/D/E and IP54
shock and vibration	Protection provided via impact resistant housing exceeding MIL STD 810-C/D/E and TIA/EIA 603
dust and humidity	Protection provided via environment resistant housing exceeding MIL STD 810 C/D/E and TIA/EIA 603

Transmitter Specifications

frequencies - full bandsplit	VHF: 136-174 MHz, LB1: 29.7-42 MHz, UHF: 300-350 MHz, LB2: 35-50 MHz, UHF1: 403-470 MHz
channel spacing	12.5/20/25 kHz
frequency stability	±2.5 ppm
power	136-174: 1-5W, 300-350: 1-4W, 403-470: 1-4W
modulation limiting	±2.5 @ 12.5 kHz, ±4.0 @ 20 kHz, ±5.0 @ 25 kHz
FM hum & noise	-40dB typical
conducted/radiated emission	-36 dBm <1 GHz, -30 dBm >1GHz
adjacent channel power	-60 dB @ 12.5 kHz, -70 dB @ 20/25 kHz
audio response (300-3000Hz)	+1 to -3 dB
audio distortion	3%

Receiver Specifications

frequencies - full bandsplit	VHF: 136-174 MHz, LB1: 29.7-42 MHz, UHF: 300-350 MHz, LB2: 35-50 MHz, UHF1: 403-470 MHz
channel spacing	12.5/20/25 kHz
sensitivity (12 dB SINAD) EIA	.25µV typical
sensitivity (20 dB SINAD) EN	.50µV typical
intermodulation EIA	70 dB
adjacent channel selectivity	60 dB @ 12.5 kHz, 70 dB @ 20/25 kHz
spurious rejection	70 dB
rated audio	0.5W
audio distortion @ rated audio	3% typical
hum & noise	-40 dB @ 12.5 kHz, -50 @ 20/25 kHz
audio response (300-3000 Hz)	+1 to -3 dB
conducted spurious emission	-57 dBm <1 GHz, -47 dBm <1 GHz

Weight and Dimensions

dimensions with standard high capacity NiMH battery	137 x 57.5 x 37.5 mm
dimensions with ultra high capacity NiMH battery	137 x 57.5 x 40.0 mm
dimensions with NiCD battery	137 x 57.5 x 40.0 mm
dimensions with Li-lon battery	137 x 57.5 x 33.0 mm
weight with standard high capacity NiMH battery	420 gm
weight with ultra high capacity NiMH battery	500 gm
weight with NiCD battery	450 gm
weight with Li-lon battery	350 gm
