6-10
6880904Z07-O August 13, 1996
39
38
Parts List: GP350 Basic Mechanical
REFERENCE
SYMBOL
MOTOROLA
PART NO.
DESCRIPTION
1
HLN8255
CLIP, Spring Belt
2
HNN9360
BATTERY (Also see Accessories)
HNN9361
BATTERY, FM
3
13-80463E01
ESCUTCHEON, Battery Contact
4
39-80571E01
CONTACT, Programming
5
39-80457E01
CONTACT, Battery
6
32-80545C01
GASKET, Chassis
7
01-80708Y67
CHASSIS
8
18-80143S02
POTENTIOMETER, Volume
9
42-80190R04
CLIP, Locking; 4 Used
10
26-80465E01
SHIELD, Main
11
39-80546B02
CONTACT, Speaker
12
75-80437C01
PAD, Speaker
13
01-80520E02
FLEX, Speaker/Mic
14
50-05589U05
SPEAKER
15
15-80484E01
COVER, Universal
16
13-80458E01
ESCUTCHEON, Universal
17
36-80477E01
KNOB, Freq. 16 Pos.
36-80477E02
KNOB, Freq. 2 Pos.
18
36-80476E01
KNOB, Volume
19
-
ANTENNA (See Accessories)
20
13-80471E01
ESCUTCHEON, 16 Pos
13-80471E02
ESCUTCHEON, 2 Pos
21
61-80968Y01
LIGHTPIPE
22
32-80960Y01
SEAL, Control; 2 Used
23
33-80469E01
LABEL, Name
24
75-80466E01
KEYPAD, Push-To-Talk
25
13-80467E01
BEZEL, Push-To-Talk
26
15-80450E01
HOUSING, Radio
27
HLN9208
ASSY, Analog Scrambler (Optional
28
75-80575E01
PAD, Option Board
29
50-13920A04
MICROPHONE
30
14-80577C01
BOOT, Microphone
31
35-80998Z04
FELT, Speaker
32
55-80438B01
LATCH, Battery
33
41-05944K01
SPRING, Coil; 2 Used
34
40-80485C08
SWITCH, Snap (PB401, 2, 3)
35
HLN9480
LABEL, FM Intrinsic
36
HLN9951
ASSY, DTMF Encode (Optional)
37
HLN9208
ASSY, Analog Scrambler w/DTMF
38
75-80470E01
KEYPAD, 16 Key
39
15-80450E02
HOUSING, DTMF
40
42-80126S01
CLIP. P.A.
41
03-00136783
SCREW; 2 Used
42
40-80502B01
SWITCH, Frequency (SW401T)
43
39-80559E01
CONTACT, Antenna (J1)
44
26-80692C02
SHIELD, Mixer
45
26-80519D01
SHIELD, VCO Front
46
26-80518D01
SHIELD, Synthesizer, Front
47
26-80522D01
SHIELD, Harmonic Filter (UHF Onl
48
26-80520D01
SHIELD, Synthesizer Rear
49
26-80521D01
SHIELD, VCO Rear

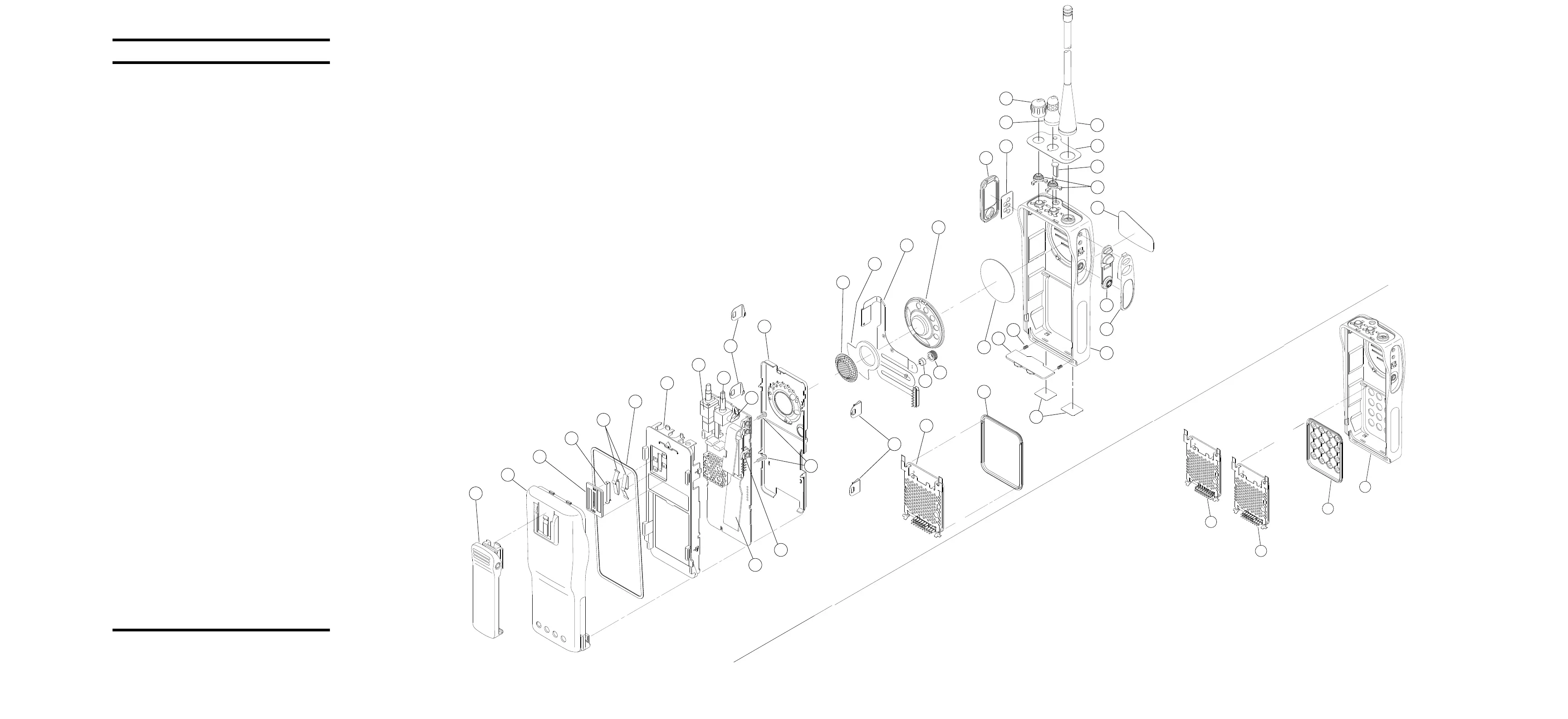

Exploded Mechanical View and Parts List (Basic)
1
4
7
2
5
8
3
6
9
43
34
40
42
10
41
11
12
13
14
29
30
27
9
15
16
33
32
31
35
28
24
26
25
18
17
23
21
22
19
20
MAEPF-25232-O
36
37
