BASIC USER GUIDE

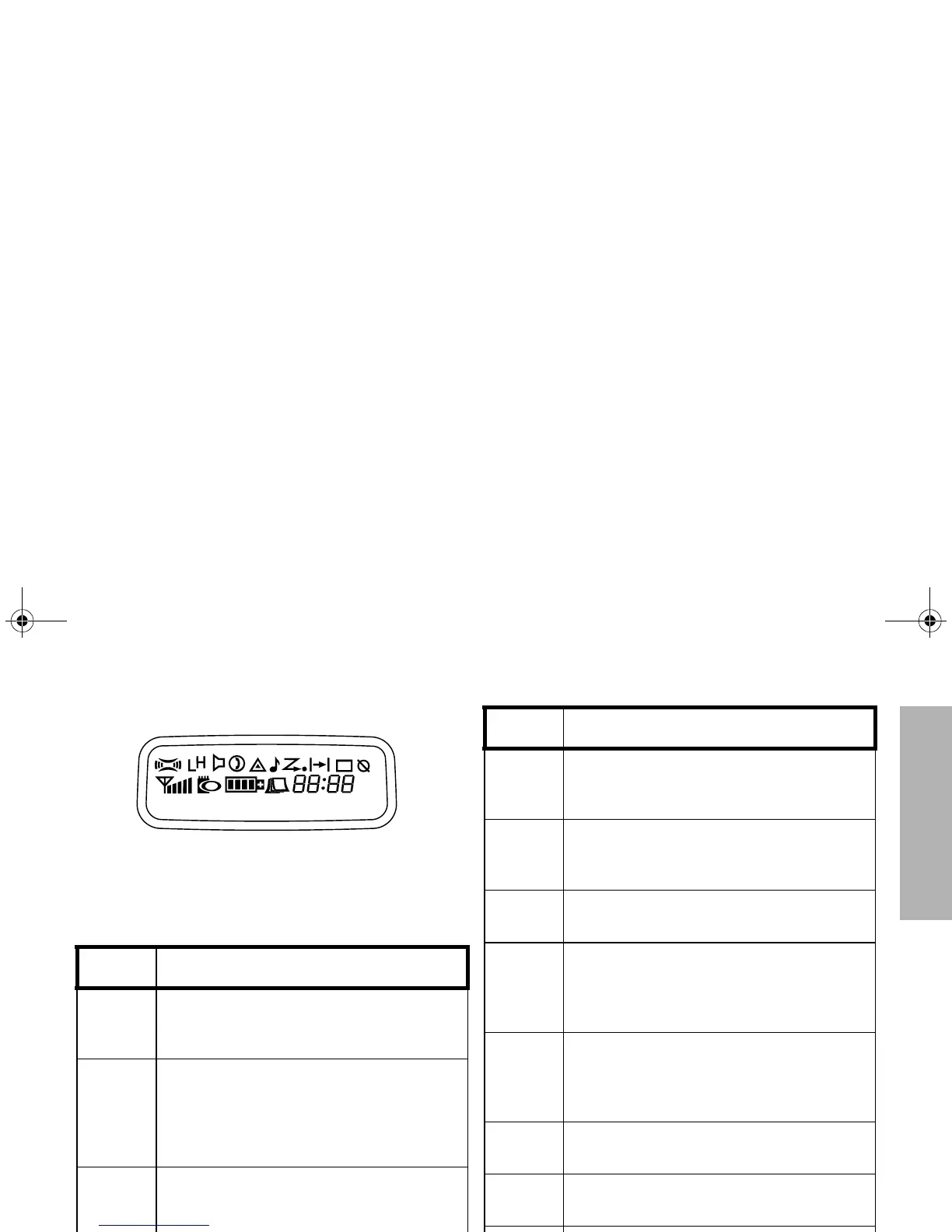

LCD Display and Icons
Displays channel, menu, and radio status
information. The top two screen rows show radio
status indicator symbols, explained in the table
below:
Symbol Name and Description
A
XPAND™ Indicator
Indicates that you have activated the
companding feature.
B
Power Level Indicator
“L” lights when your radio is configured to
transmit in Low Power. “
H” lights when your
radio is configured to transmit in High
Power.
C
Monitor Indicator
On indicates carrier squelch.
Off indicates signalling squelch.
F
Voice Recorder Indicator
Indicates that there are stored messages or
memos in the voice recorder.
H
Scan Indicator
Indicates that you are scanning. The dot is
lit during priority scan mode.
L
Keypad Lock Indicator
On indicates that the keypad and menu
keys are locked. Off indicates unlocked.
N
Option Board Indicator
Indicates that an option board is activated.
P
Battery Level Indicator
Shows the remaining charge in your battery,
based on how many bars are displayed.
Flashing, indicates flat battery.
Q
Missed Call Indicator
On indicates call in list.
Off indicates no calls in list.
Flashing, indicates new call in list.
D
DTMF Indicator
Indicates DTMF is enabled.
J
Talkaround Indicator
Indicates talkaround enabled.
!
Timer
Shows the call time.
