Radio Disassembly/Assembly GP68 Portable Radios Service Manual
Disassemble Radio
1-2
6881086C09-O March, 1997
Remove Controller Board
1. Remove the PTT lever by slipping a small
screw driver between it and the Monitor Button
and pry it out (Figure 1-5).
2. Remove the two dust covers, that cover the
accessories and cloning connectors, at the
side of the radio.
3. Unlatch the latch levers on the controller
board, and remove the ribbon cable as well as
the flex tail from the connectors (Figure 1-6).
4. Use a TORX
®
head
screwdriver to remove the
screw (Figure 1-6).
5. Gently lift the bottom of the controller board to
disconnect it from the display board
(Figure 1-6).
6. Ease the controller board downwards and lift it
away from the housing.

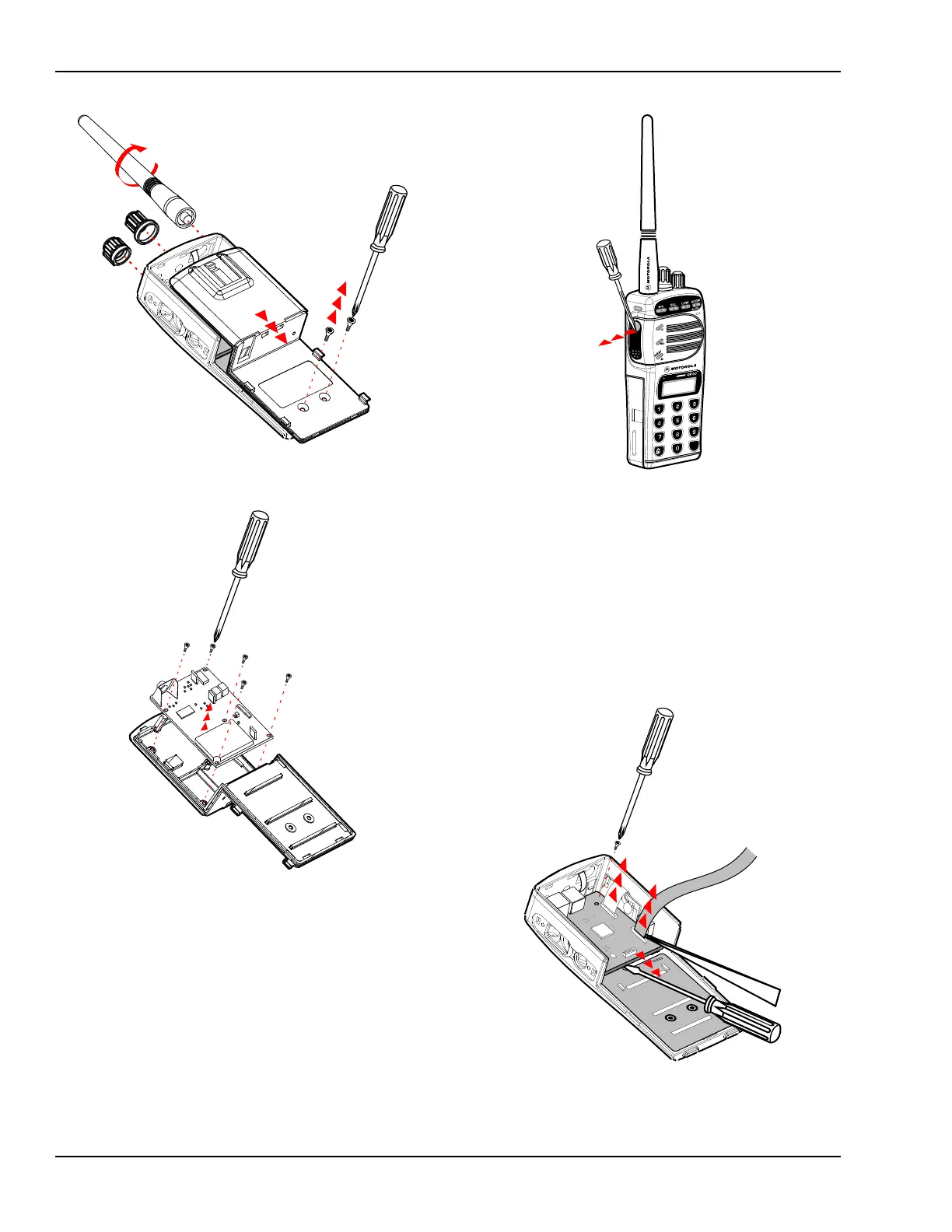

Figure 1-3 Remove Radio Chassis
Figure 1-4 Remove RF Board
Figure 1-5 Removing the PTT lever
Figure 1-6 Remove Controller Board
