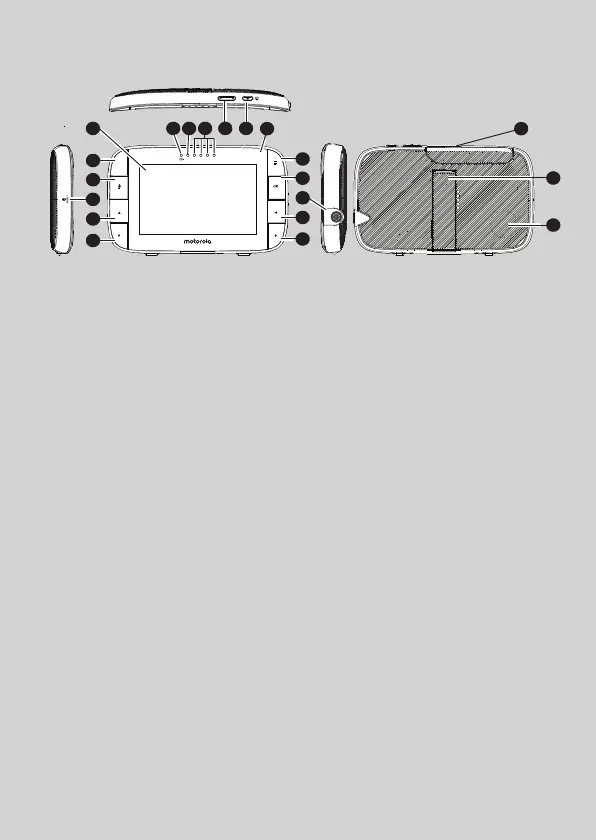

Overview of the Parent Unit
1. Display (LCD screen)
2. VIDEO ON/OFF button V
Press to turn the LCD screen
ON/OFF
3. TALK button T
Press and hold to speak to your baby
4. RESET button (recessed - use
small pin)
5. UP button +
Normal Mode: Tilt Up
Menu Mode: Up
6. DOWN button -
Normal Mode: Tilt Down
Menu Mode: Down
7. MENU button M
Press to open the Menu options
8. OK button O
9.
Power adapter socket
10. LEFT button <
Normal Mode: Pan Left
Menu Mode: Left
11. RIGHT button >
Normal Mode: Pan Right
Menu Mode: Right
12. Power Adapter LED:
BLUE when mains power
connected.
13. Unit ON/OFF LEDs (Green)
14. Audio Level LEDs (Green, Orange,
Red, Red)
15. Volume button
Press -/+ to decrease/increase
Volume level on Parent Unit
16. Power button 0
Press and Hold to turn the unit
ON/OFF
17. Microphone
18. Stand
19. Speaker
DC 5V
2
4
5
6
3
1
12
7
8
9
10
11
13 14 15 16
18
19
17
20
20. Antenna
