LED Codes
7

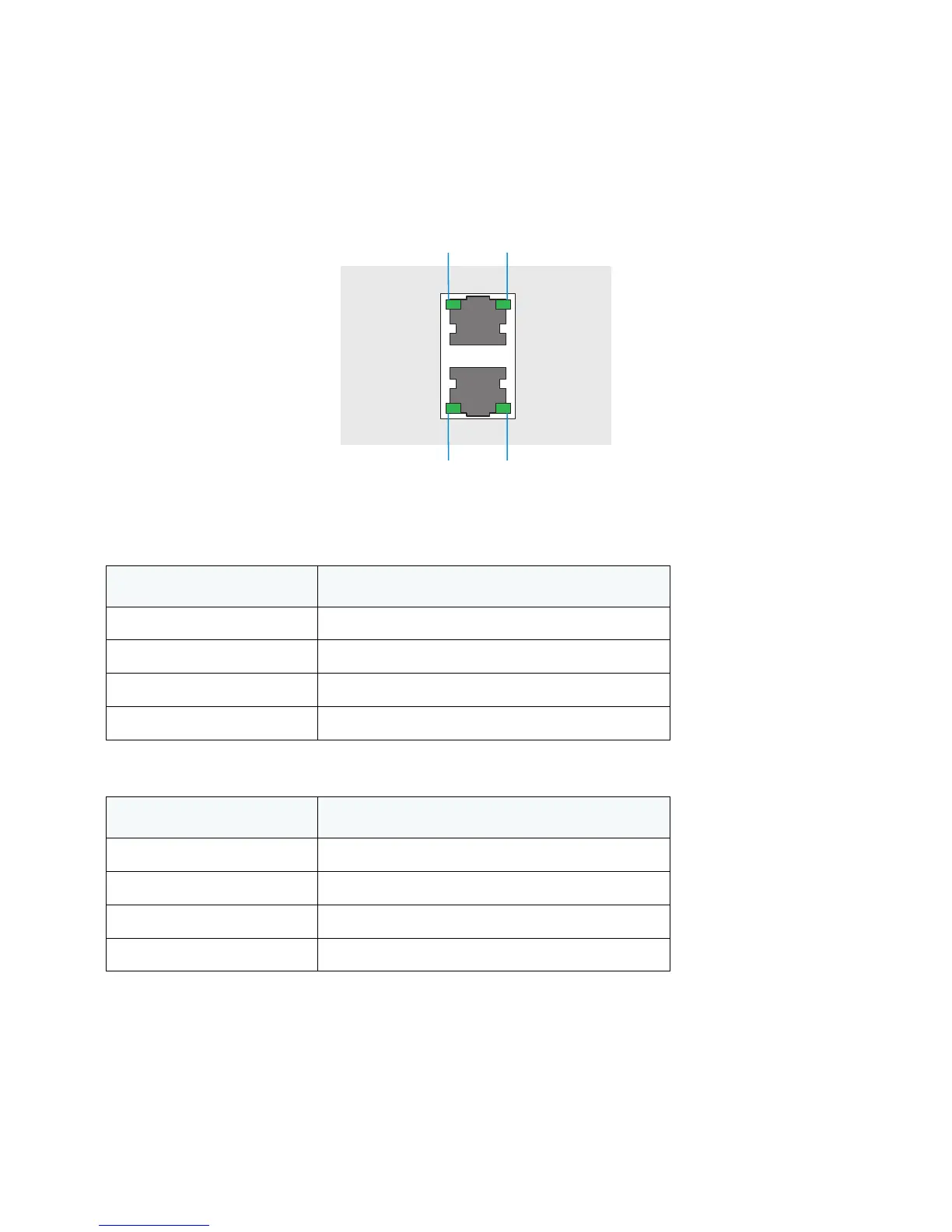

3.2 RJ-45 Gigabit Ethernet LEDs
3.2.1 RJ-45 Port Speed LED
3.2.2 RJ-45 Port Status LED
Port Speed LED Event
Off 10 Mbps
Green Solid 100 Mbps
Green Blinking 1000 Mbps
Amber Blinking Port Fault
Port Status LED Event
Off No Link or Administratively shut down
Green Solid Link present
Green Blinking Activity: Transmit and Receive
Amber Blinking Link Fault
V\PB
3RUW
VSHHG
3RUW
VWDWXV
3RUW
VSHHG
3RUW
VWDWXV
