Ajay16 Motorola v3 Disassembly Guide v1.1
Page: 11
Compiled Exclusively for MotoModders.net

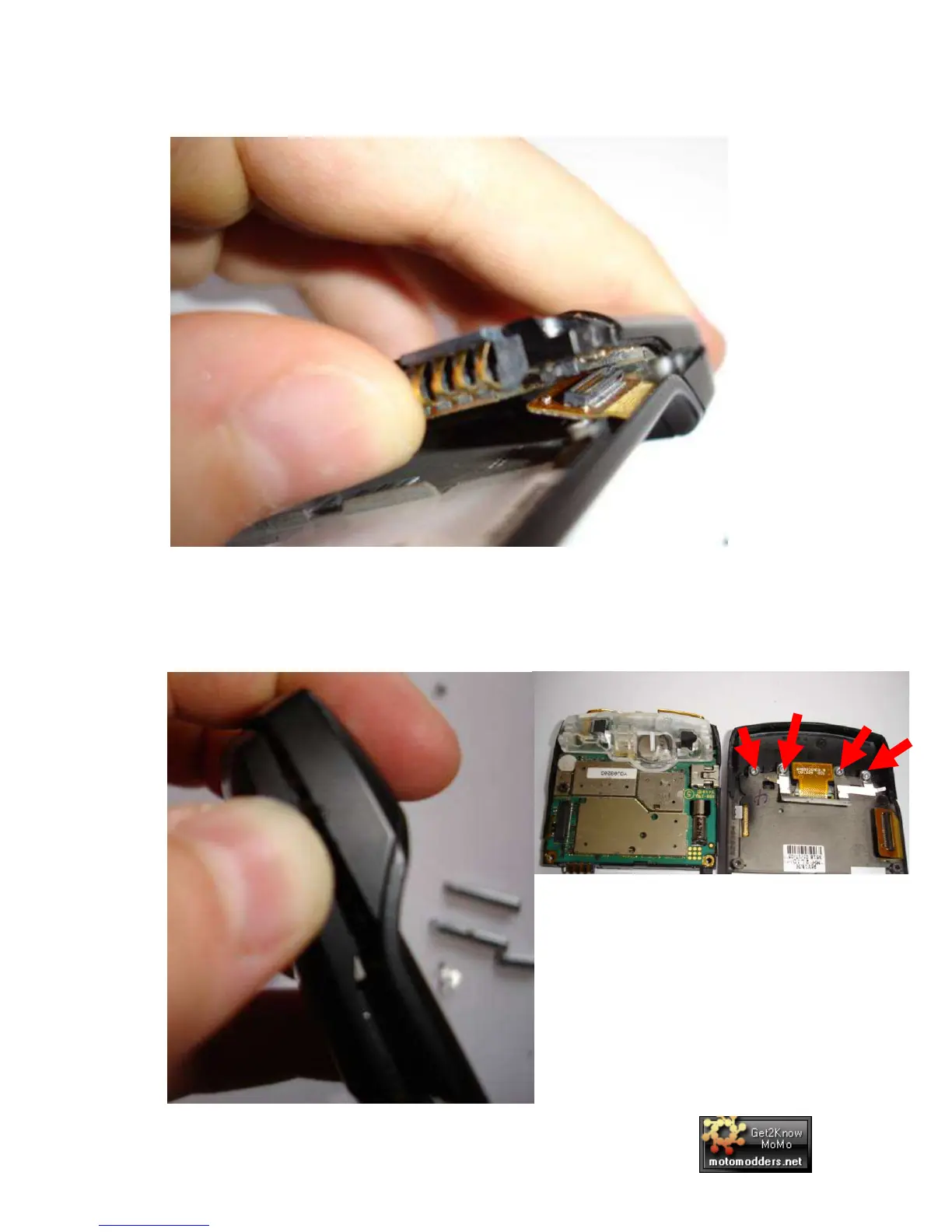

22. Pull down the ribbon with the tweezers to disconnect.
23. Push the bottom sideways away from the top this should unclip
the Aerial Cover from the lower & mic housing. If not use the
Mobile Phone Opening tool around the edge and flip up the
edges.
24. You now need to
unscrew the 4 screws
holding the lower cover
on. Use the T5
screwdriver.
