Preparing Your Radio for Use
English
3

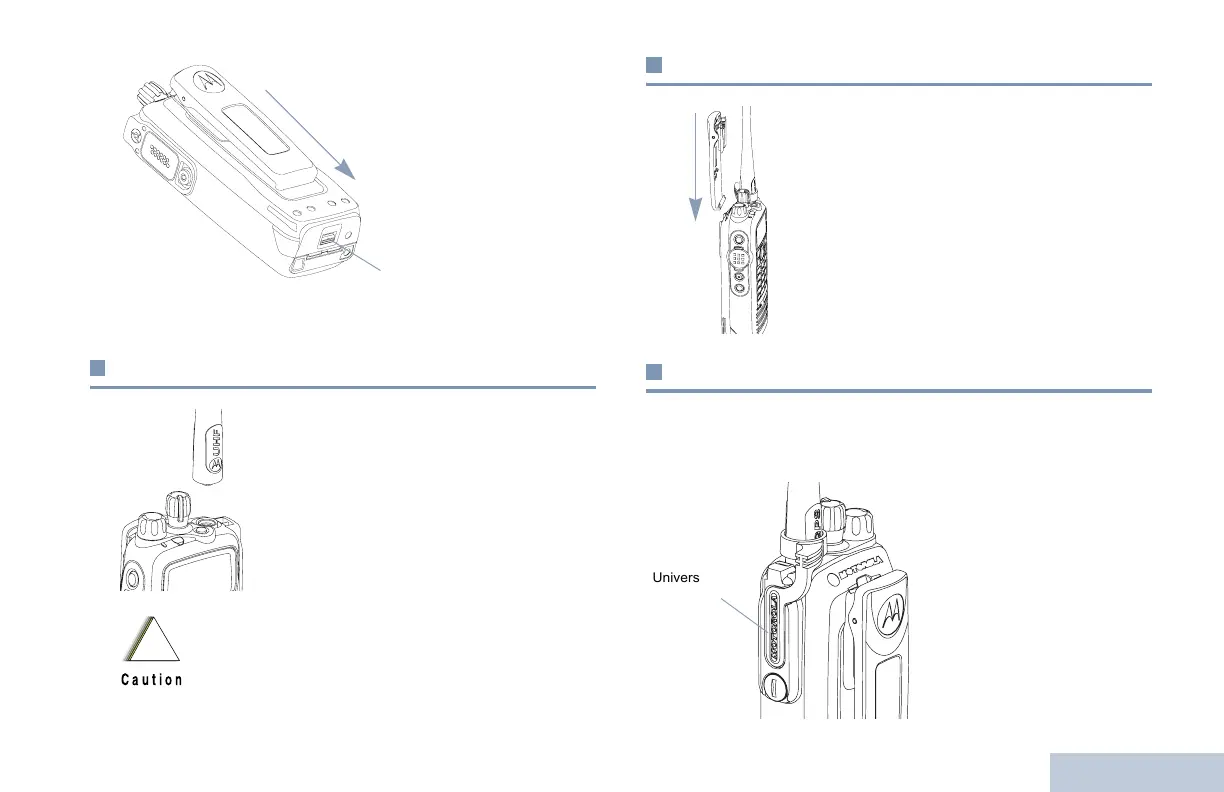

To remove the
battery, turn the
radio off. Move the
battery latch into
unlock position
and hold, and slide
the battery down
and off the rails.
Attaching the Antenna
With the radio turned off, set the
antenna in its receptacle and turn
clockwise.
To remove the antenna, turn the
antenna counterclockwise. Make sure
you turn off the radio and remove the
universal connector cover first.
Attaching the Belt Clip
Align the grooves on the clip with those on
the battery and press downward until you
hear a click.
To remove the clip, press the belt clip tab
away from the battery using a key. Then
slide the clip upward and away from the
radio.
Attaching the Universal Connector Cover
The universal connector is located on the antenna side of the
radio. It is used to connect MOTOTRBO accessories to the
radio.
Place the universal
connector cover loop over
the attached antenna. Slide
it all the way down to the
base of the antenna.
Insert the hooked end of the
cover into the slots above
the universal connector.
If antenna needs to be replaced, ensure that only
MOTOTRBO antennas are used. Neglecting this will
damage your radio. See Antennas on page 60 for a
list of available antennas.
Battery Latch
!
Caution
Universal
Connector
Cover
NAG-LACR-EMEA.book Page 3 Monday, April 28, 2008 4:59 PM
