4

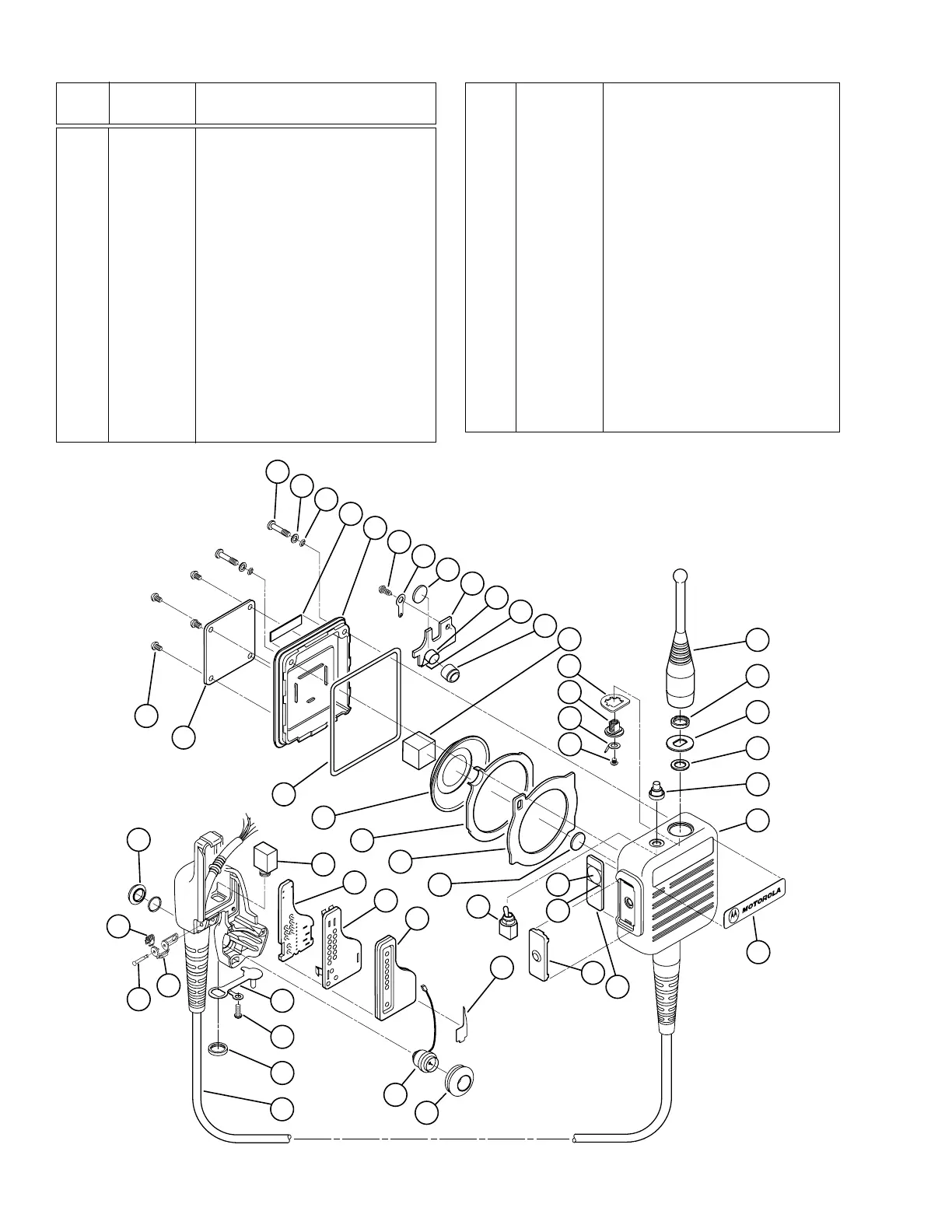

Exploded View Parts List
ITEM MOTOROLA
NO. PART NO. DESCRIPTION
1 0104007J20 ASSEMBLY, Housing, Mic Head (includes
items 28, 29, and 31)
2 0405534U01 WASHER
3 4305533U01 BUSHING, Antenna
4 0205791P01 NUT, Toggle Seal
5 2900005369 LUG
6 3205560U01 SEAL, Rubber
7 - - - - - - - - - - ANTENNA, Typical
8 0305559U01 SCREW, Pin
9 0205543E03 NUT, Spanner
10 0405327S01 WASHER, Bearing
11 7582154D33 PAD, Speaker
12 1405490Q02 BOOT, Microphone
13 SEE NOTE MICROPHONE
14 8405194S01 PRINTED CIRCUIT BOARD, Main
15 0300139047 SCREW, Cutting
16 0105955P12 ASSEMBLY, Cover
17 3305706X58 LABEL, Kit Number (NMN6247)
or 3305706X59 LABEL, Kit Number (NMN6250)
or 3305706X60 LABEL, Kit Number (NMN6251)
18 3205082E03 GASKET, O-Ring (2 req’d)
19 0382210E19 SCREW, Cover-Captive; #4-40 (2 req’d)
20 0300139982 SCREW, Machine #2-56x.188" (4 req’d)
21 0105957Q44 ASSEMBLY, Belt Clip
22 3205082E63 GASKET, O-Ring
23 SEE NOTE DOME, PTT (S1)
Note: Refer to Electrical Parts List for part number and description.
24 3205264L06 SEAL, PTT
25 8405296R03 PRINTED CIRCUIT BOARD, PTT
26 SEE NOTE SPEAKER (LS1)
27 4305407R01 SPACER, Speaker
28 3205190R05 PAD, Seal
29 7505136L03 PAD, Silicon Sponge (2 req’d)
30 SEE NOTE SWITCH, Toggle (S2)
31 4505211R02 LEVER, PTT
32 1386324A01 ESCUTCHEON
33 3305269R01 LABEL, Nameplate
34 8405213S01 PRINTED CIRCUIT, Flexible
35 0405465C01 WASHER, PLASTIC (2 req’d)
36 2900003025 LUG
37 SEE NOTE JACK, Micro (J1)
38 0104007J22 ASSEMBLY, Printed Circuit Board
39 6405241X01 BASEPLATE
40 3205235W01 GASKET
41 3205756Z01 SEAL, Earphone Jack
42 0305731J20 SCREW
43 - - - - - - - - - - part of item 37
44 - - - - - - - - - - CABLE and CONNECTOR; factory test
required, not field repairable
45 0205770Z02 NUT, Retaining
46 3205082E05 O-Ring
47 2805805Z01 ASSEMBLY, RF Connector
48 3205769Z01 ASSEMBLY, Plunger Seal
49 5505737Z01 LATCH
50 2205541V01 PIN
51 4105538V01 SPRING
