CSD Series Variable Frequency AC Drive
MOTORTRONICS
- 50 -
Note: A new speed setting or timer setting cannot be inserted into an
ongoing timer and speed function. The priority of the preset speed
signals is as follows: Jog >> Multiple Speed >> Digital Operator. The
jog contact has the highest priority and the digital operator has the
lowest priority.
Vibration Prevention Control
Fn92-94 minimizes the system mechanical vibration that is connected
to the motor.
Fn92 = Vibration prevention times (Units = 2mS) - Factory Setting = 5;
Range = 1 - 100
Determine the vibration cycle and adjust Fn92 to 1/4 of the vibration
cycle to minimize oscillation. To determine the optimum setting for
Fn92 use the following formula:
Fn92 = [Vibration Time(mSEC)/8]
Fn93 = Vibration prevention gain - Factory Setting = 0%; Range = 0 - 100%
Minimizes the magnitude of the mechanical vibration at full load.
Fn94 = Vibration prevention bias - Factory Setting = 0%; Range = 0 - 30%
Minimizes the magnitude of the mechanical vibration at no load.
Fn95 = Reserved
Fn96 = Reserved
Fault Contact Control - Factory Setting for Fn97 & Fn98 = 0000
Fn97 - Fn98 define the fault contact on TM2 pins 1 and 2 and what
fault contact the application requires.
Fn97 = XXX0: Fault contact is not energized during auto restart operation
after any fault (excluding OL faults).
XXX1: Fault contact is energized during auto restart operation after
any fault (excluding OL faults).
XX0X: Fault contact is not energized during momentary power loss
detection.
XX1X: Fault contact is energized during momentary power loss
detection.
X0XX: Fault contact is not energized after external emergency stop
signal is received.
X1XX: Fault contact is energized after external emergency stop signal
is received.
0XXX: Fault contact is not energized during external baseblock.
1XXX: Fault contact is energized during external baseblock.

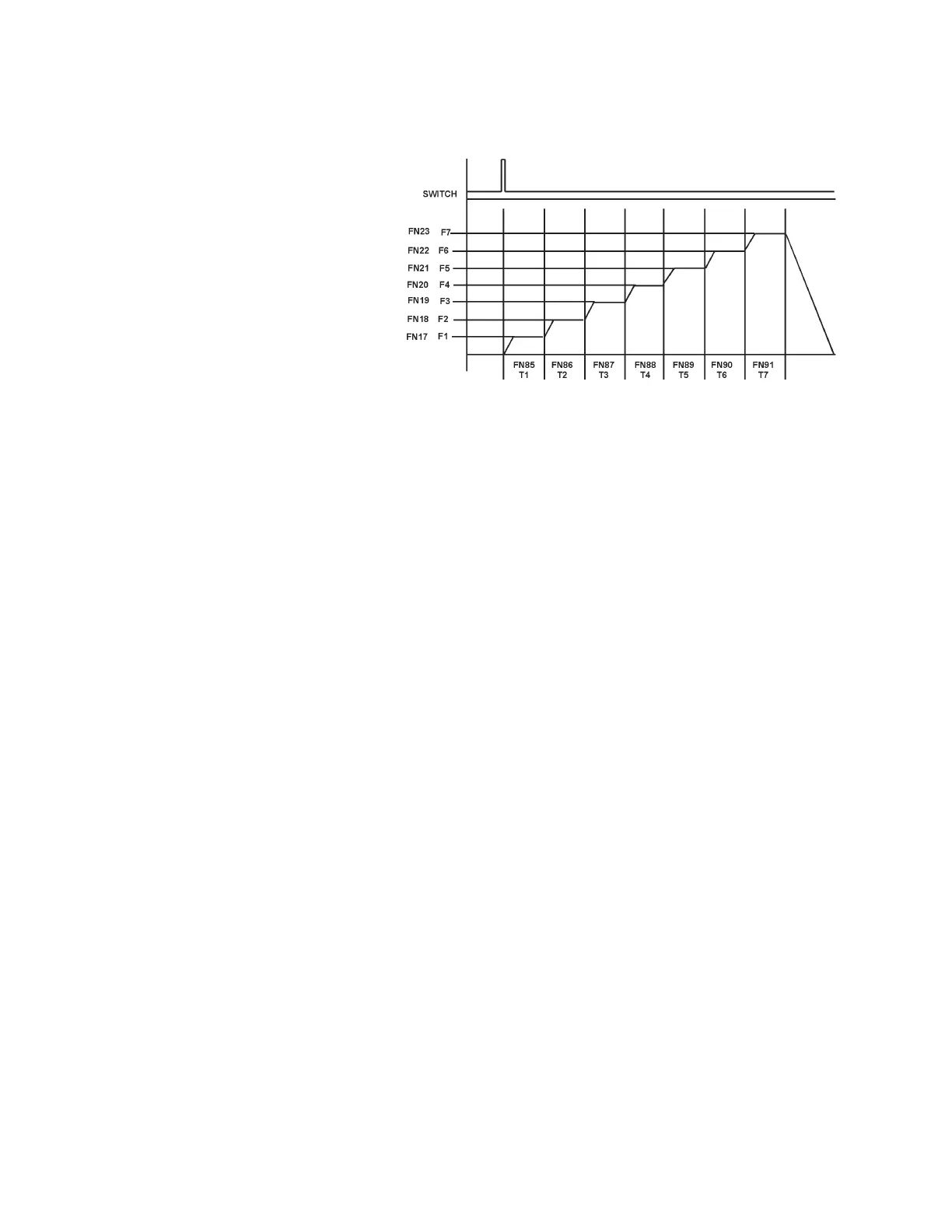

Figure 5 - 10B
2nd Process Time Parameter
To Next Page
