MOTUL BIOCLEAN - Wiring Diagram

18
Operating Instructions Motul BioClean Parts Washer – English
10. Wiring diagram
Version : EGT 1.1

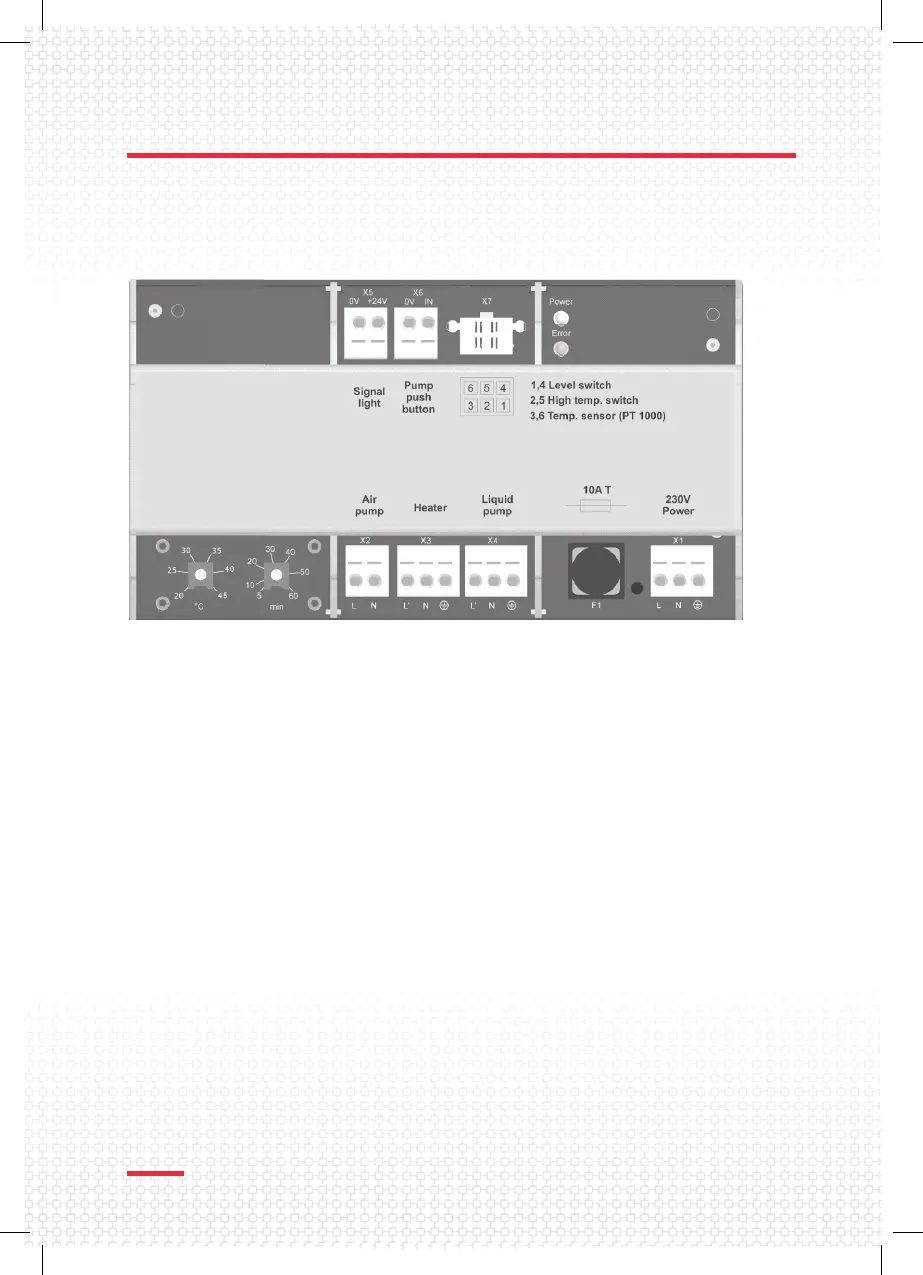

Connections X1 Power supply
X2 Air pump
X3 Heater
X4 Liquid pump
X5 Signal light
X6 Pump push button
X7 Sensor plug
Error
Red LED blinking: Level low, top up device
Red LED permanently on: Unplug device, check for possible overheating, check level
switch and level, if necessary let cool down and plug in again
for reset. If reset is not possible, there is an error in the temper-
ature switch or control board.
