23
EN

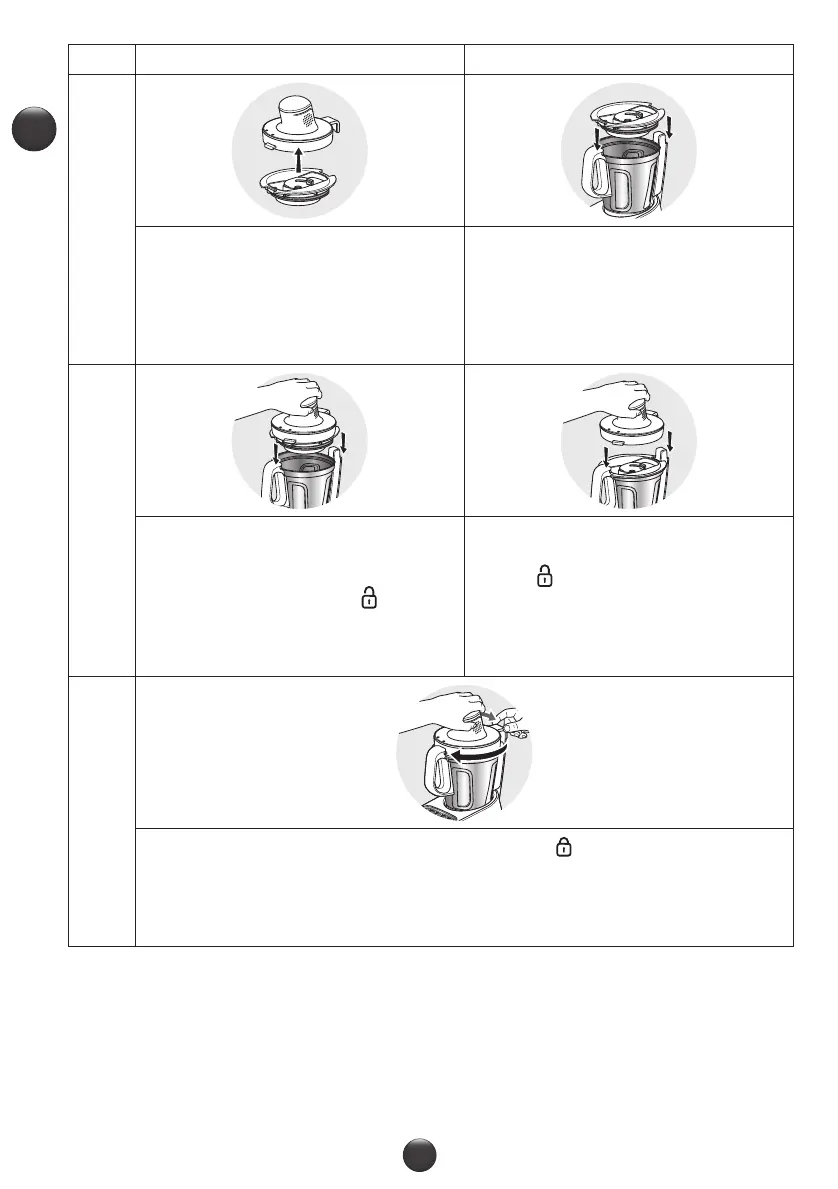

Steps Scenario 1 Scenario 2
3
Clip the cup (D2) to the motor-unit lid
(D1), making sure you position the lug
(D1a) of the motor unit at the edge of
the notch (D2a) on the cup (D2), and
press until you hear a "click" (Fig. 5). The
cup is now in place.
Place the cup (D2) on the jug making
sure you place the notches (D2a) of the
cup (D2) around the handle (F1) and rear
column (A1) (Fig. 20)
4
“click”
Place the assembled motor-unit lid (D1,
D2+D3) on the jug (F), making sure you
position:
- the "open padlock " symbol
in front
of the handle (Fig. 6)
- the notches (D2a) of the cup around the
handle (F1) and rear column (A1) (Fig. 7)
Fit the motor-unit lid (D1) on the cup
(D2), making sure you position the "open
padlock" in front of the handle (F1) and
press until you hear a "click" (Fig. 21).
5
To lock the lid in place to position the “locked padlock” opposite the handle (F1):
To do this, with one hand, turn the lid assembly in a clockwise direction in order to
slide the locking tab (D1a) of the motor unit into the handle (F1), and with the other
hand, support the rear part of the lid so as to slide the second locking tab (D1a) into
the rear column (A1) on the base (A). (Fig. 8).
