Mountain Buggy Carrycot - Configuration 2: Fitting Instructions (continued); Fitting the Carrycot to the Frame; Fitting the Feet to the Carrycot

10
Terrain
• Align Hole 1 of sliding plate with Hole A of Carrycot.
Align Hole 2 of sliding plate with hole C of Carrycot.
• Place screws into Holes 1 and 2. Using Allen key,
tighten in a clockwise direction.
Warning: check that Carrycot attachment devices are correctly engaged before use.
Fitting the Carrycot to the Frame
1. Ensure snap locks are rotated so screw holes are on top.
2. Open snap locks.
3. Place Carrycot between side tube and centre bar of
stroller. Locate centre bar lug then move sliding plate
down centre bar until groove in sliding plate locks onto
located lug.
4. Push snap locks  rmly down  at, making sure you hear
the lock ‘click’, indicating they are fully locked.
To  t a second Double Carrycot onto a Double or Triple Stroller
repeat above instructions.
To remove Carrycot from frame: open snap locks and lift Carrycot o frame.
Fitting the Feet to the Carrycot
1. Take one foot and place provided screw through
hole in narrow end of foot.
2. Screw whole unit into one of the 4 holes located
on bottom of Carrycot.
3. Ensure foot is screwed tightly.
4. Repeat process for all 4 feet.
To remove: unscrew each foot from bottom of Carrycot.

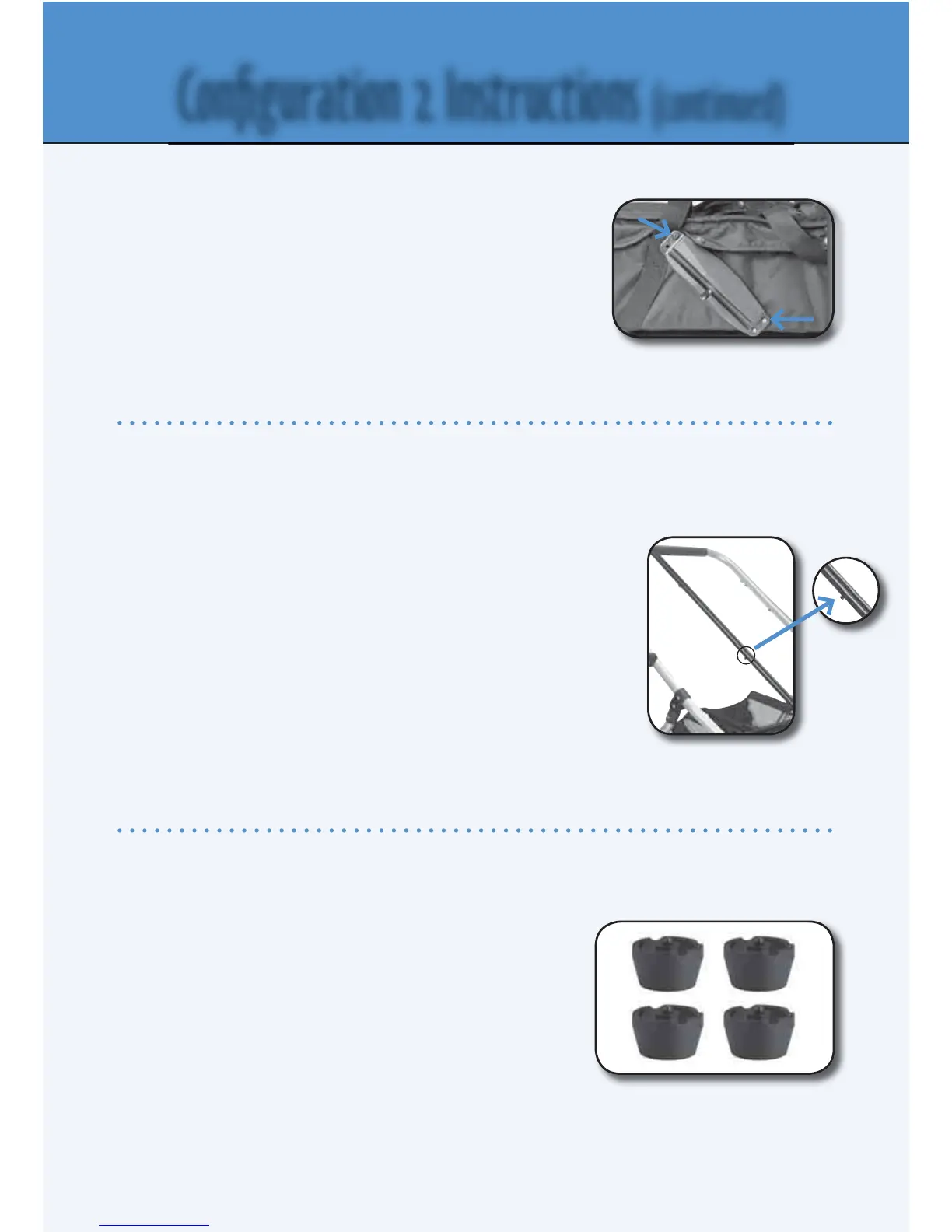

Confi guration 2 Instructions (continued)
1
2
TERRAIN
1
