Movement EDGE - Assemble Leg Support Pulleys and Cables

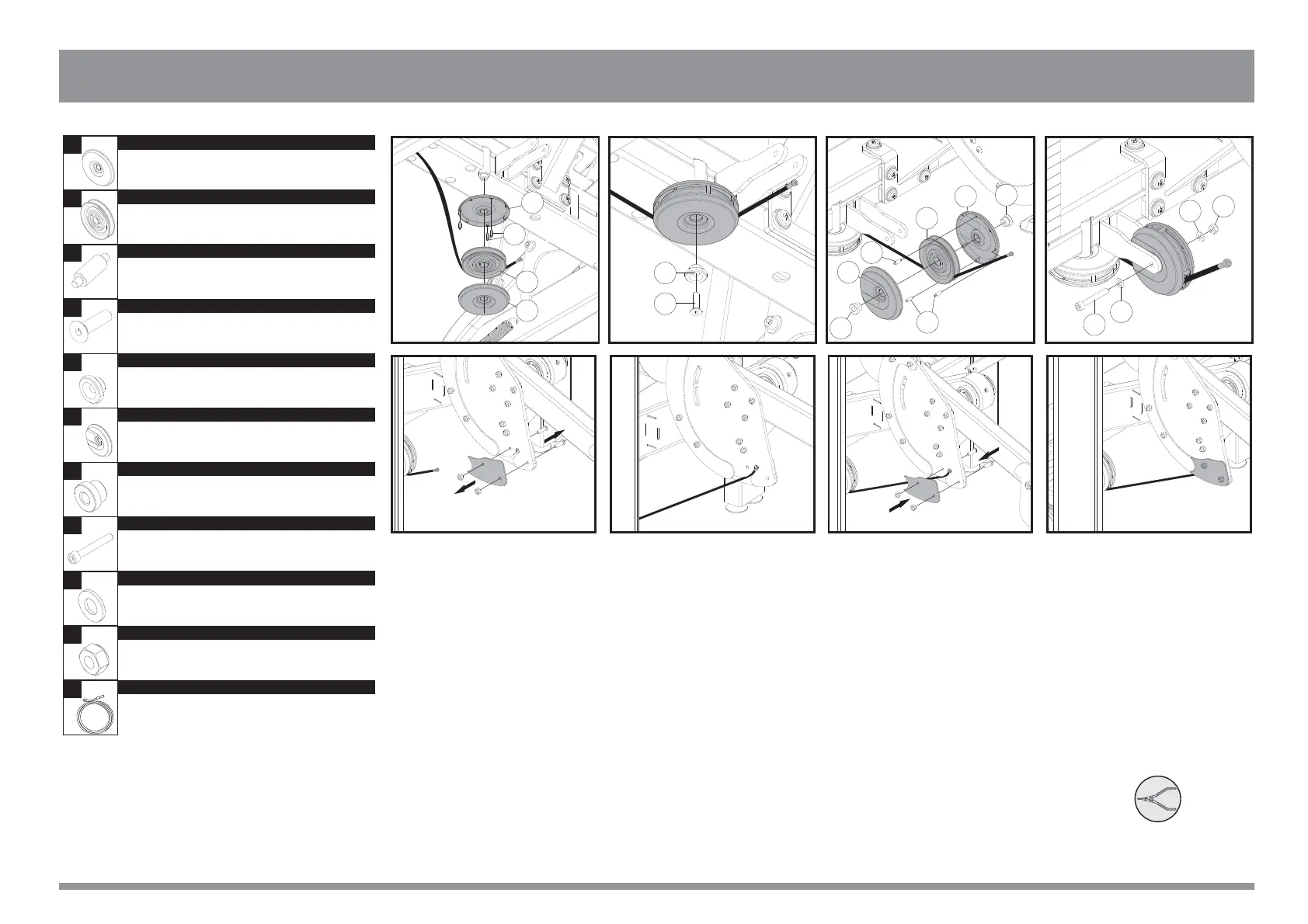

STEP 14 - ASSEMBLE THE CAM AND THE LEG SUPPORT
29
Alicate para anel elástico
Tools
ASSEMBLE
Steel cable
NAME
Lock pin of the steel cable
NAME Qty
6x
11
F
Pulley cover
NAME Qty
2x
9
Pulley
NAME Qty
2x
10
Internal Hex Flat Head Bolt
M8X30
NAME Qty
1x
42
Bush
NAME Qty
1x
43
Pulley cover
NAME Qty
2x
44
Bush
NAME Qty
2x
45
Screw Hex. Socket Cyl. Head
M8X55
NAME Qty
1x
46
Flat washer
M8
NAME Qty
2x
47
Hex Nut Insert Nylon
M8
NAME Qty
1x
48
11
9
10
9
42
43
11
11
10
44
44
45
45
46
47
47
48
