Movement IDEA - Page 65

5

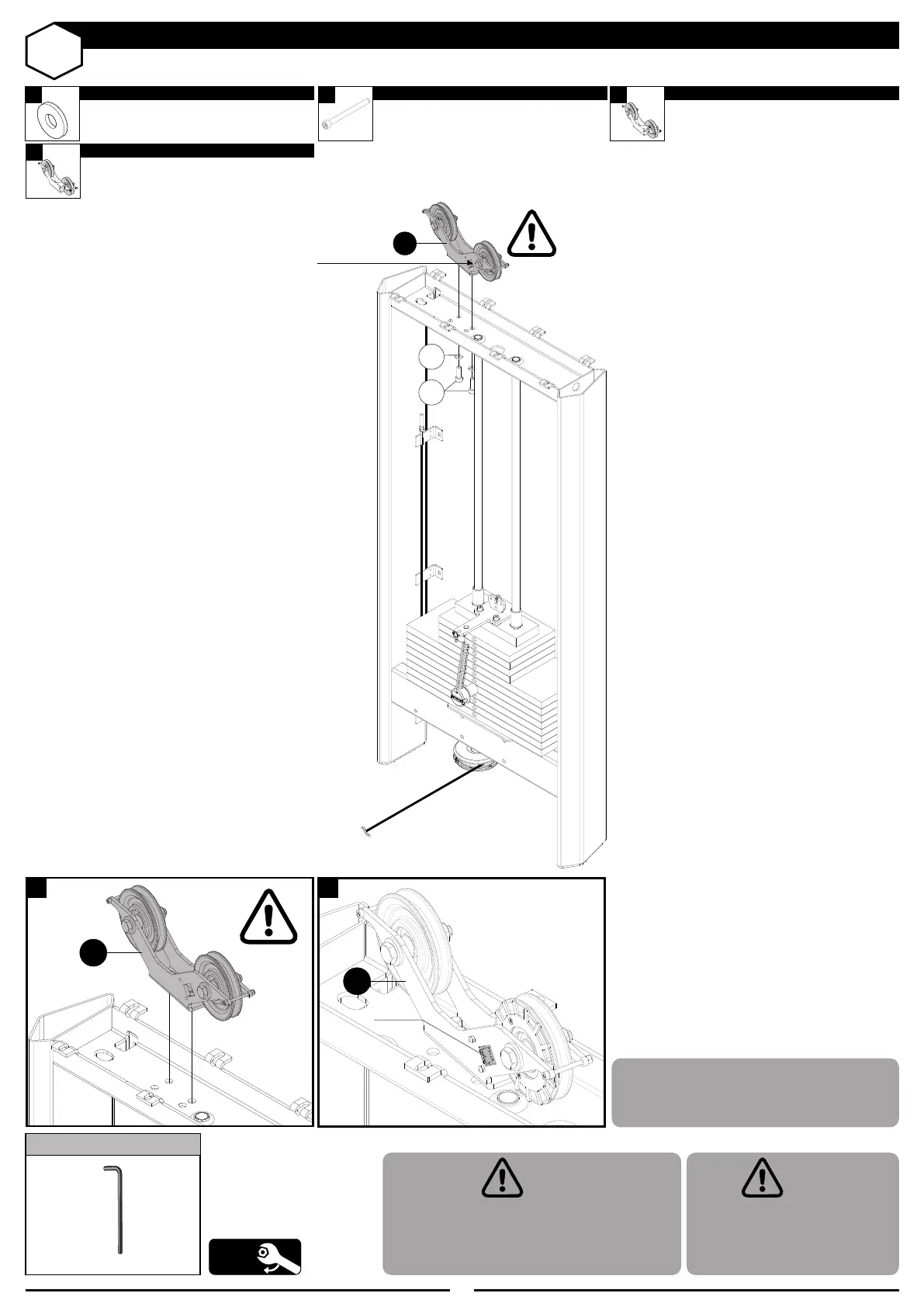

STEP 10
22
18
Flat washer - M8
NAME Qty
2x
19
Screw Hex. Socket Cyl. Head
M8X25
NAME Qty
2x
N1
Pulley support
NAME
N2
Pulley support with encoder
NAME
TOOLS
Allen n° 8
100%
N1
Board
N2
222
1
18
19
N1
Hole
ASSEMBLY
DANGER!
The encoder plate should
be directed to the user as
per the image above.
DANGER!
The pullery support
should be assembled on
the holes highlighted as
shown in figure 1.
NOTE
The pulley support with encoder only
accompanies the IDEA PLUS line
