CAMPER
TROLLEY
Congratulations
on
the
purchase
of
your
new
Camper
Trolley,
and
thank
you
for
choosing
a
product
from
Mover
Technology.
We
hope
this
product
will
bring
you
many
years
of
satisfaction.
It
is
important
that
you
read
this
manual
thoroughly
before
using
your
Camper
Trolley.
Technical
Data:
Battery
voltage:
Batteri,
spasnding:
Battery
type:
Battery
operating
capacity:
Battery
charger:
Battery
remote
control:
Max.
load
stress:
Speed
unloaded:
Speed
loaded:
Motor:
Safety
function:
Solar
cell:
Hauling
capacity:
Caterpillar
tracks:
Weight:
Contents
of
transport
crate:
On
unpacking
the
Camper
Trolley,
check
that
all
parts
are
in
the
crate.
In
case
of
missing
content:
Contact
your
dealer.
Operating
Manual:
1
pee
Camper
Trolley:
1
pee
Charger,
230
V
1.0
A:
1
pee
Remote
control:
1
pee
Transportation
bag:
1
pee
+
Suspension
hardware,
composed
of
the
following
parts:
Cotter
ring:
1
pee
Stabilization
pipe:
2
pee
Suspension
fitting:
2
pee
Extension
tube
for
fitting
1
pee
+
Screws
and
nuts
for
suspension
fitting.
The
EC
Declaration
of
Conformity
is
available
via
the
manufacturer.
Mover-technology
ApS
Ved
Stranden
1
9560
Hadsund
-
DK
14.4
V.
14.4
Volt
Lithium
Approx.
30
min.
operation
230
V
-
14.4
V.
Capacity
1.0
A.
1
pee
AA
-
9.0
V.
500
kg.
Approx.
9
m./min.
Approx.
8
m./min.
2
pee
14.4
V
planetary
gear
motors.
3
min.
Auto
shut-off.
18.0V1.17W.
Trailers
up
to
1500
kg.
2
pee
with
terrain
rubber
profiles.
36.38
lb.
10
I

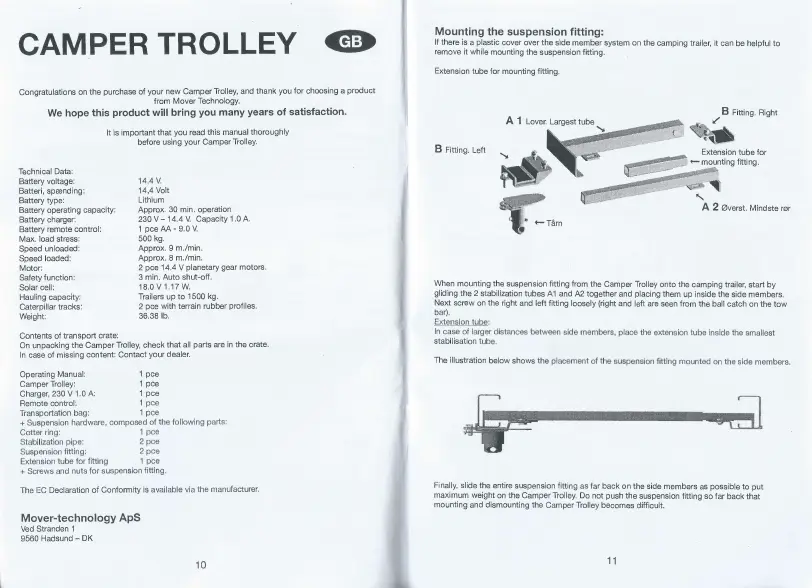

Mounting
the
suspension
fitting:
If
there
is
a
plastic
cover
over
the
side
member
system
on
the
camping
trailer,
it
can
be
helpful
to
remove
it
while
mounting
the
suspension
fitting.
Extension
tube
for
mounting
fitting.
When
mounting
the
suspension
fitting
from
the
Camper
Trolley
onto
the
camping
trailer,
start
by
gliding
the
2
stabilization
tubes
A1
and
A2
together
and
placing
them
up
inside
the
side
members.
Next
screw
on
the
right
and
left
fitting
loosely
(right
and
left
are
seen
from
the
ball
catch
on
the
tow
bar).
Extension
tube
:
In
case
of
larger
distances
between
side
members,
place
the
extension
tube
inside
the
smallest
stabilisation
tube.
The
illustration
below
shows
the
placement
of
the
suspension
fitting
mounted
on
the
side
members.
<3
Finally,
slide
the
entire
suspension
fitting
as
far
back
on
the
side
members
as
possible
to
put
maximum
weight
on
the
Camper
Trolley.
Do
not
push
the
suspension
fitting
so
far
back
that
mounting
and
dismounting
the
Camper
Trolley
becomes
difficult.
11
