Moxa Technologies MGate MB3000 Quick Installation Guide

- 3 -

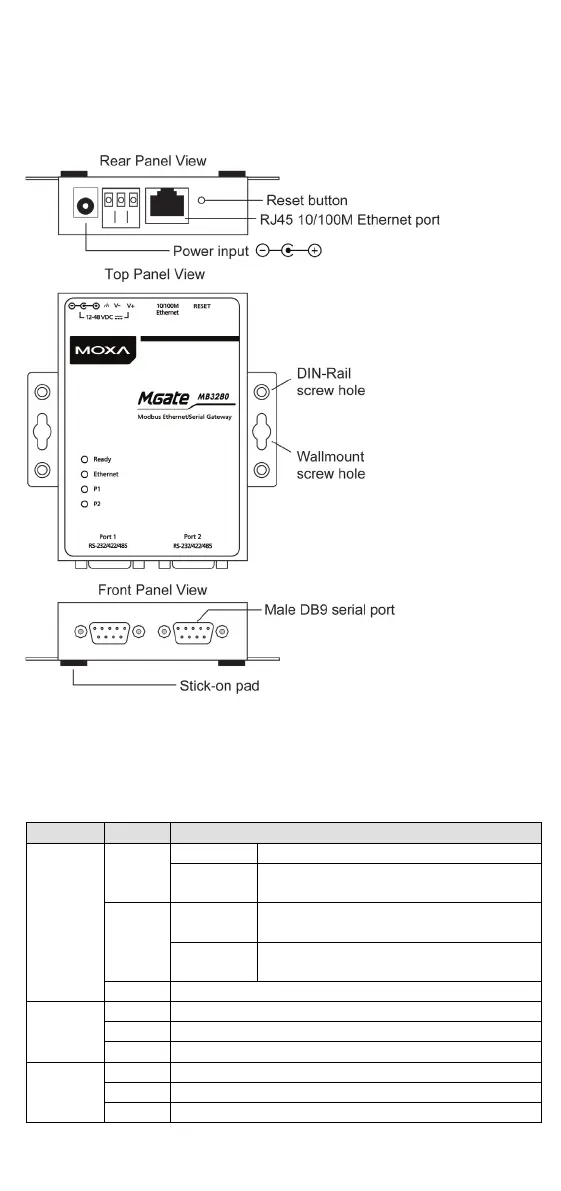

Hardware Introduction
As shown in the following figures, the MGate MB3280 has two DB9 male
ports for transmitting serial data.
Reset Button—The reset button is used to load factory defaults. Using
a pointed object such as a straightened paper clip to hold the reset
button down for five seconds. Release the reset button when the Ready
LED stops blinking in order to load the factory defaults.
LED Indicators—Four LED indicators are located on the top panel:
Name
Color
Function
Ready
Red
Steady on:
Power is on and the unit is booting up.
Blinking:
IP conflict exists, or DHCP or BOOTP
server is not responding properly.
Green
Steady on:
Power is on and the unit is functioning
normally.
Blinking: Unit has been found by the Location
command in MGate Manager.
Off
Power is off or power error condition exists.
Ethernet
Orange
10 Mbps Ethernet connection.
Green
100 Mbps Ethernet connection.
Off
Ethernet cable is disconnected or has a short.
P1/P2
Orange
Unit is receiving data from device.
Green
Unit is transmitting data to device.
Off
No data is being exchanged with device.
