Reset Button
Press the Reset button continuously for 5 sec to load factory defaults:
The reset button is used to load factory defaults. Use a pointed object
such as a straightened paper clip to hold the reset button down for five
seconds. Release the reset button when the Ready LED stops blinking.

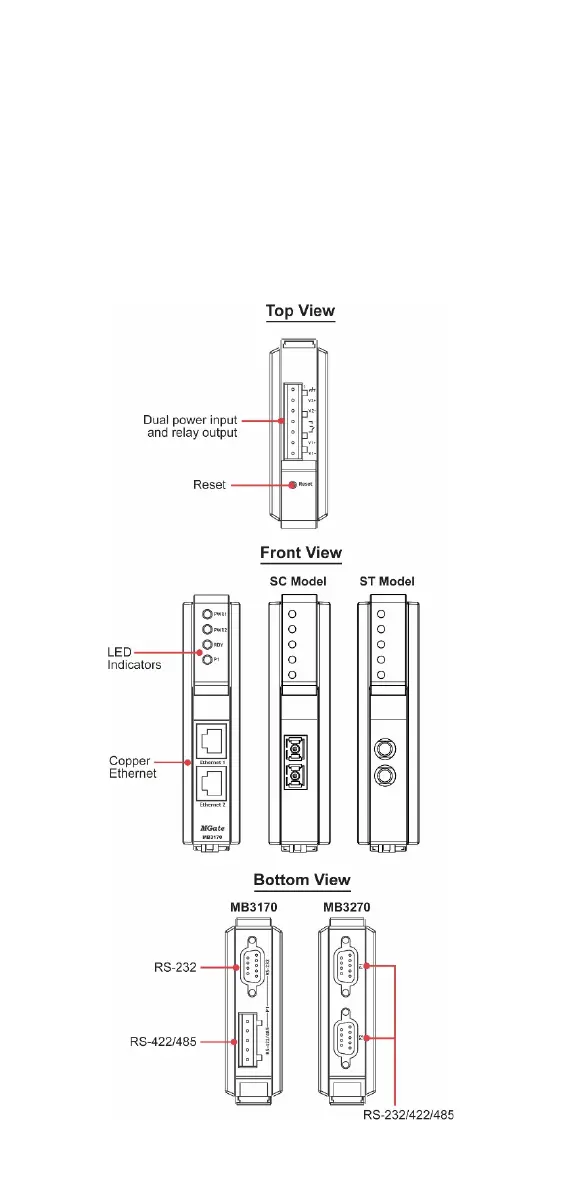

Panel Layouts
The MGate MB3170 has a male DB9 port and a terminal block for
connecting to serial devices. The MGate MB3270 has two DB9 connectors
for connecting to serial devices.
