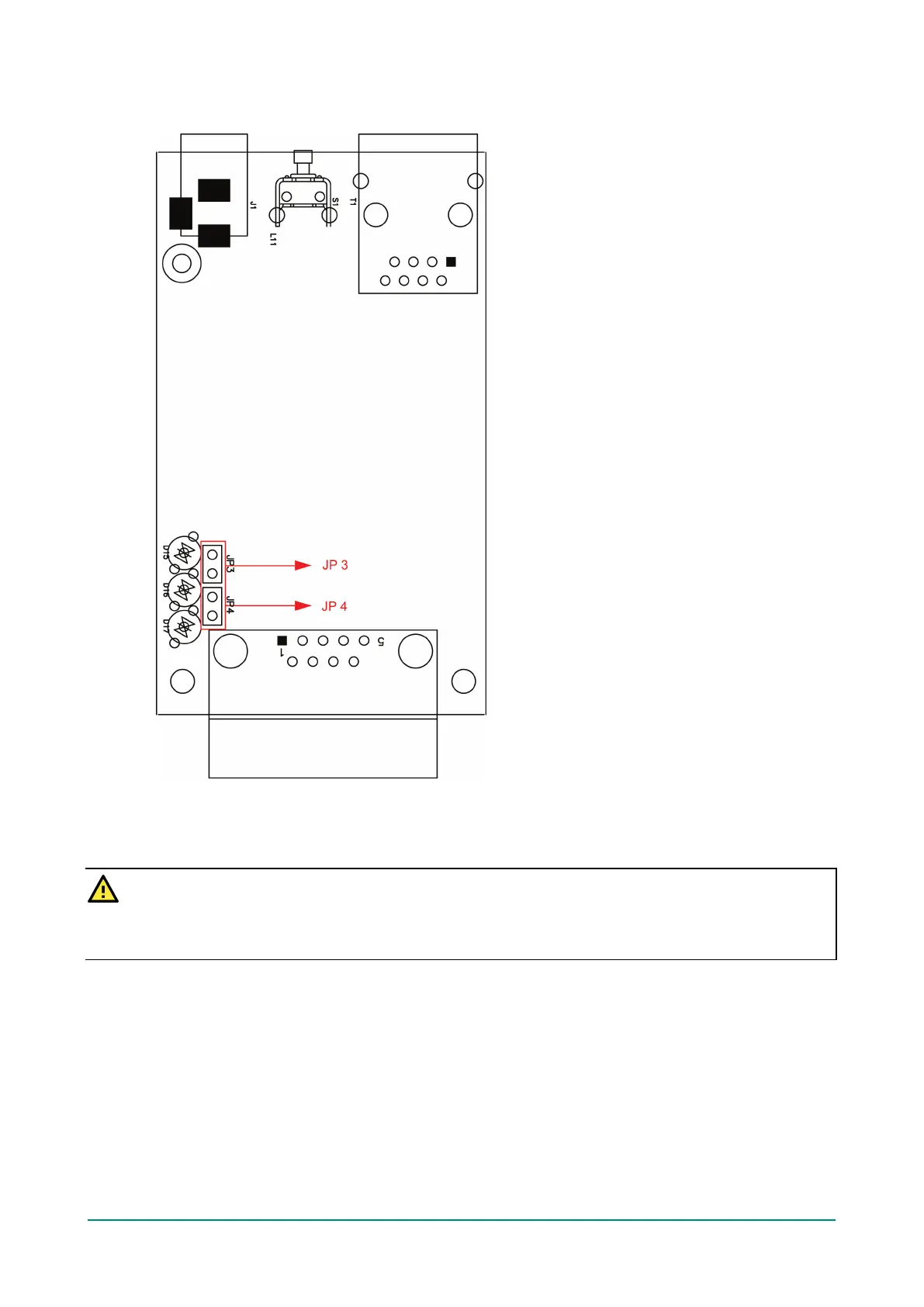

Jumpers
To set the pull high/low resistors to 150 K
Ω, leave jumpers JP3 and JP4 open (not shorted). This is
the default setting.
To set the pull high/low resistors to 1 K
Ω, short jumpers JP3 and JP4 with jumper caps.
ATTENTION
Do not use the 1 KΩ pull high/low setting on the MGate MB3000 when using the RS-232 interface. Doing
so will degrade the RS-232 signals and reduce the effective communication distance.
