Intermediate gear
Removing
1. R emove the timing gear cover.
See Timing gear cover: Removing.
2. R emove oil catc her from end of crankshaft.

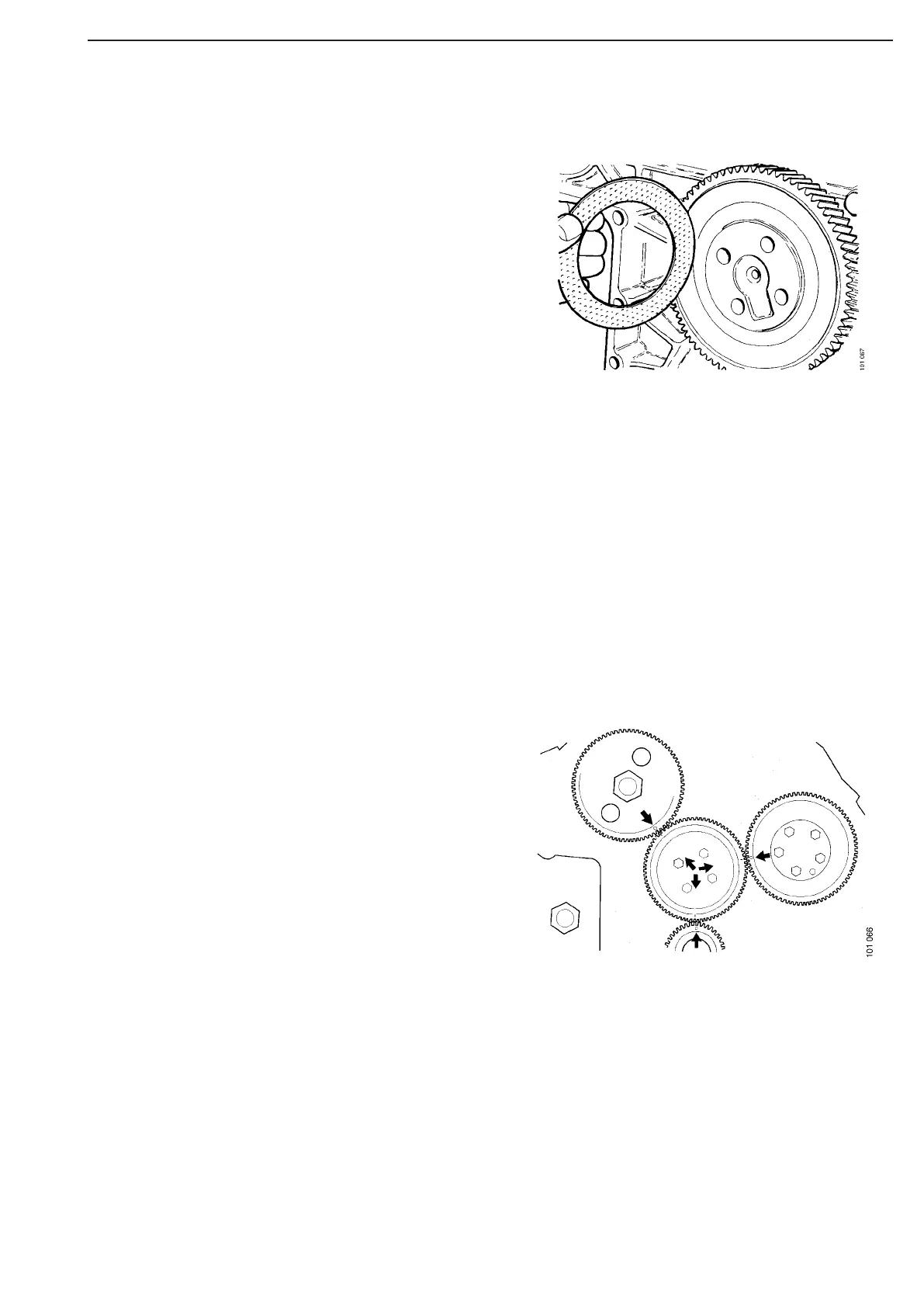

3. T urn the crankshaft so that the marks on the
camshaft gear and crankshaft gear point
towards the centre of the intermediate gear .
4. R emove the intermediate gear.
Note After the intermediate gear ha s b een
removed, the camshaft and crank-
shaft must not be moved. Pistons
and valves could then strike each
other and sustain damage.
Fitting
1. L ubricate the bearing surfaces and fit the
intermediate gear and thrust bearings so that
all marks are in the correct positions.
2. Fit the washer and tighten the bolts to a
torque of 39 Nm.
3. Fit the oil catcher on the end of the crankshaft.
4. Fit the timing gear cover.
See Timing gear cover: Fitting.
