Installation of magnetic paddle mute pad
(for detailed steering wheel settings and functions, please visit the ofcial website of MOZA Racing)
Place the steering wheel on a at surface with the plate facing down, use a hexagonal wrench to
remove the screw on the side of the shift paddle trigger lever, and then use the wrench to lift the latch
from the side of the magnetic paddle (there is no need to push it out completely, only the magnetic
paddle The trigger lever and the latch can be separated), and then stick the mute pad on the back of
the magnet hole and the protruding position on the back of the trigger lever, as shown in the gure,
and nally return the latch and replace the screw
FL: automatic ashing light
Box: inbound instruction
S1: custom button 1
S2: custom button 2
PL: activate / deactivate Pit limiter
TR: Team Radio
BB: Brake Balance adjustment
Ers: Energy Recovery System

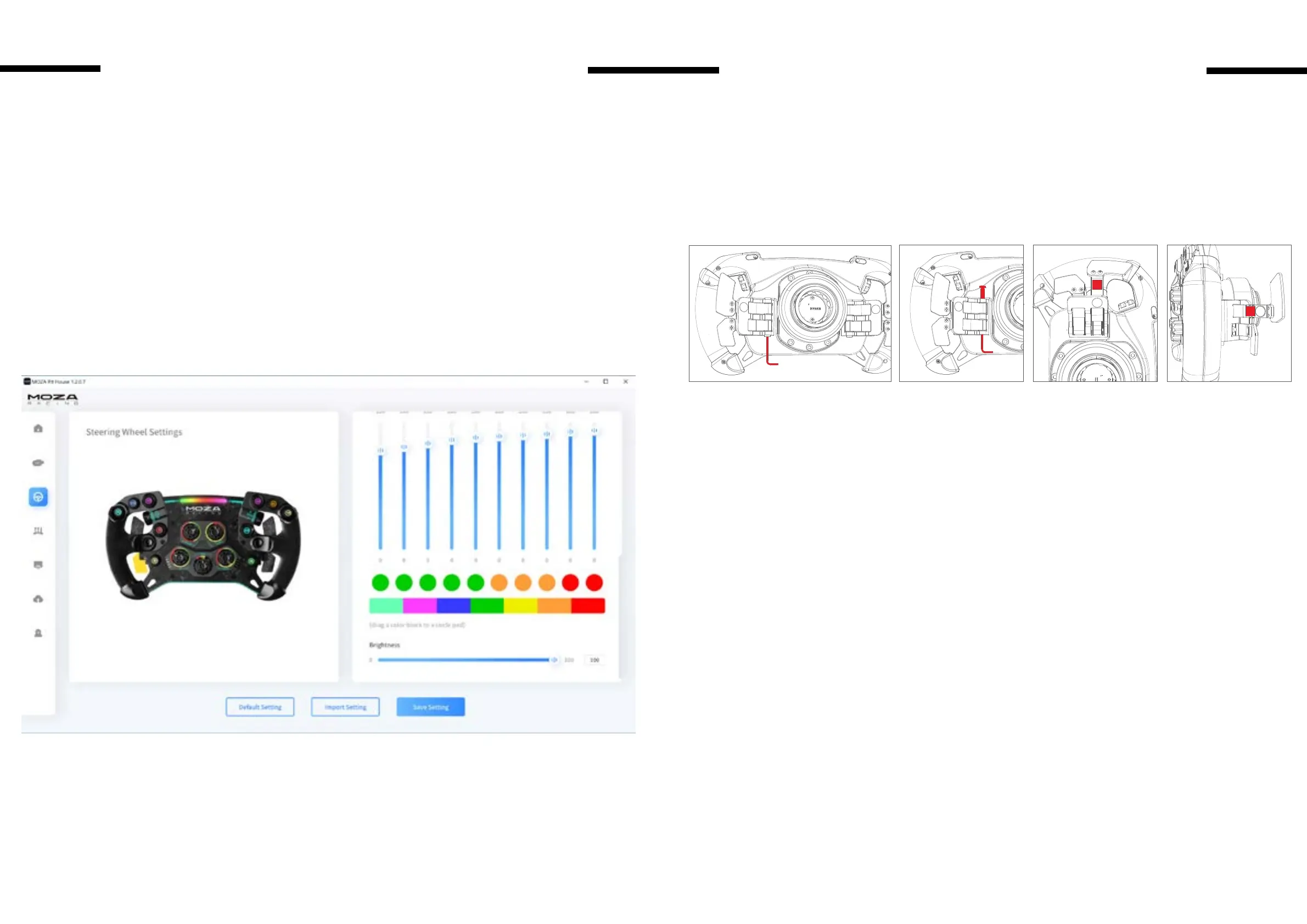

· Indicator color adjustment: drag the color block you like to the indicator to change the color
· Pickle calibration: when the pickup sensor is abnormal, click here to perform the paddle calibration
Enter the debugging mode through the quick release button, you can set the color of the illuminated
button,thespecicoperationisasfollows:
Press and hold the thumb knobs (BB and ERS) on the left and right at the same time until the gear shift
indicator ashes, and then enter the button setting mode.
Each time you press the button, you can change a color, and there are 9 colors in total.
Press and hold the right dual-clutch paddle with your right hand, and at the same time move the left
universal joystick left and right, you can quickly switch the screen UI interface
comparison table of English abbreviations
of keys and knobs
P: Park gear
WIP: Wipers
R: Reverse gear
N: Neutral
E-brake: engine brake adjustment
Turbo: turbine pressure regulation
TC: traction control adjustment
Abs: Antiblockiersystem control
and adjustment
Diff: differential adjustment
Product parameters
Ring body coating material: Alcantara from Italy
Frame material: forged carbon ber
Panel material: forged carbon ber
Paddles material: 3mm thick forged carbon ber
Size: 12 inches (300mm)
Magnetic picks: 2
Double clutch paddles: 2
Mechanical keyboard texture buttons: 10 (can be
illuminated, 9 colors adjustable)
Front knobs: 5
Thumb knobs: 2
Universal joystick: 2
Highlight LED RGB lamp beads: 10 pcs
LED color: 7 colors customized
Intelligent telemetry: support Setting the light through
MOZA Pit House: Support
Disassembly method: D1 reality racing quick release
Power supply mode: wireless
Signal transmission method: wireless
Magnetic pickup induction method: photoelectric
non-contact type
Magnetic paddle mode: dual-clutch/single-
clutch/switch
