GENERATOR START-UP PROCEDURE (MANUAL)
BEFORE STARTING
1. Place the main, GFCI, and aux. circuit breakers
(Figure 35) in the OFF position prior to starting the
engine.

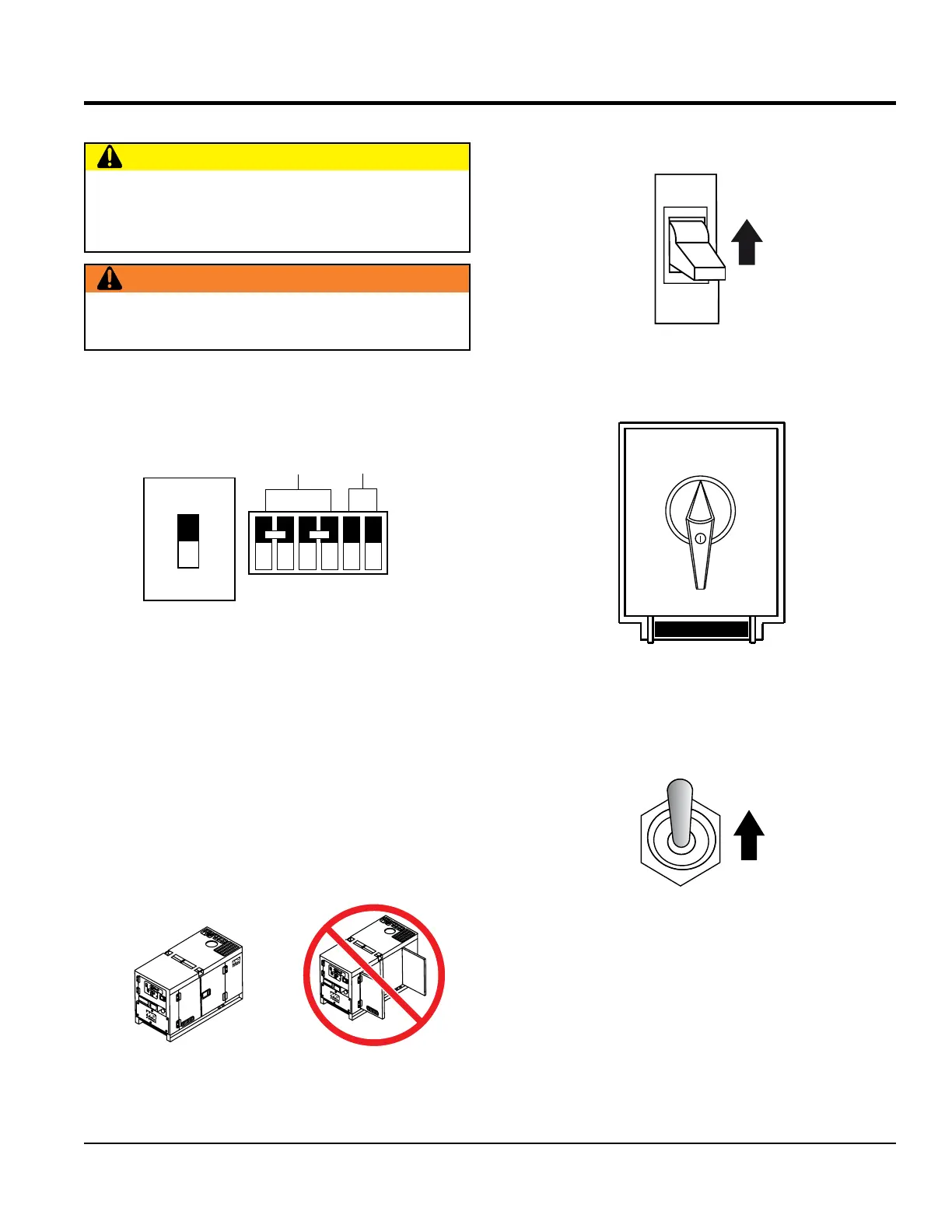

Figure 35. Main, Aux. and GFCI
Circuit Breakers (OFF)
2. Connect the load to the receptacles or the output
terminal lugs as shown in Figure 11. These load
connection points can be found on the output terminal
panel and the output terminal panel’s hard wire hookup
panel.
3. Tighten terminal nuts securely to prevent load wires
from slipping out.
4. Close all engine enclosure doors (Figure 36).
Figure 36. Engine Enclosure Doors
CAUTION
The engine’s exhaust contains harmful emissions.
ALWAYS have adequate ventilation when operating.
Direct exhaust away from nearby personnel.
WARNING
NEVER manually start the engine with the main, GFCI
or auxiliary circuit breakers in the ON (closed) position.
MAIN
CIRCUIT
BREAKER
DUPLEX
CIRCUIT
BREAKERS
CS-6369
AUX. CIRCUIT
BREAKERS
OFF
OFF
OFF OFF OFF OFF OFF
INCORRECTCORRECT
STARTING (MANUAL)
1. Place the main circuit breaker in the ON position.
Figure 37. Main Circuit Breaker (On)
2. Make sure the voltage selector switch has been
configured for the desired output voltage.
Figure 38. Voltage Selector Switch
3. Place the power switch (Figure 39) on the control
panel to the ON position (UP) and allow the controller
to boot up.
Figure 39. Power Switch
ON
PRESS TO LOCK
3 PHASE
480/277
3 PHASE
240/139
1 PHASE
240/120
