PAGE 22 — DCA70SSIU4F 60 HZ GENERATOR DSE8610 MKII • OPERATION MANUAL — REV. #0 (08/11/22)
OUTPUT TERMINAL PANEL FAMILIARIZATION
OUTPUT TERMINAL PANEL
The Output Terminal Panel (Figure 7) shown below is
located on the right-hand side (left from the control panel)
of the generator. Lift up on the cover to gain access to
receptacles and terminal lugs.
NOTICE
Terminal lugs “O” and “Ground” are considered bonded
grounds.
OUTPUT TERMINAL FAMILIARIZATION
The “Output Terminal Panel” (Figure 7) is provided with
the following:
 Three 240/120V Output Receptacles @ 50 amps
 Three Aux. Circuit Breakers @ 50 amps
 Two 120V GFCI receptacles @ 20 amps
 Two GFCI Circuit Breakers @ 20 amps
 Five Output Terminal Lugs (U, V, W, O, Ground)

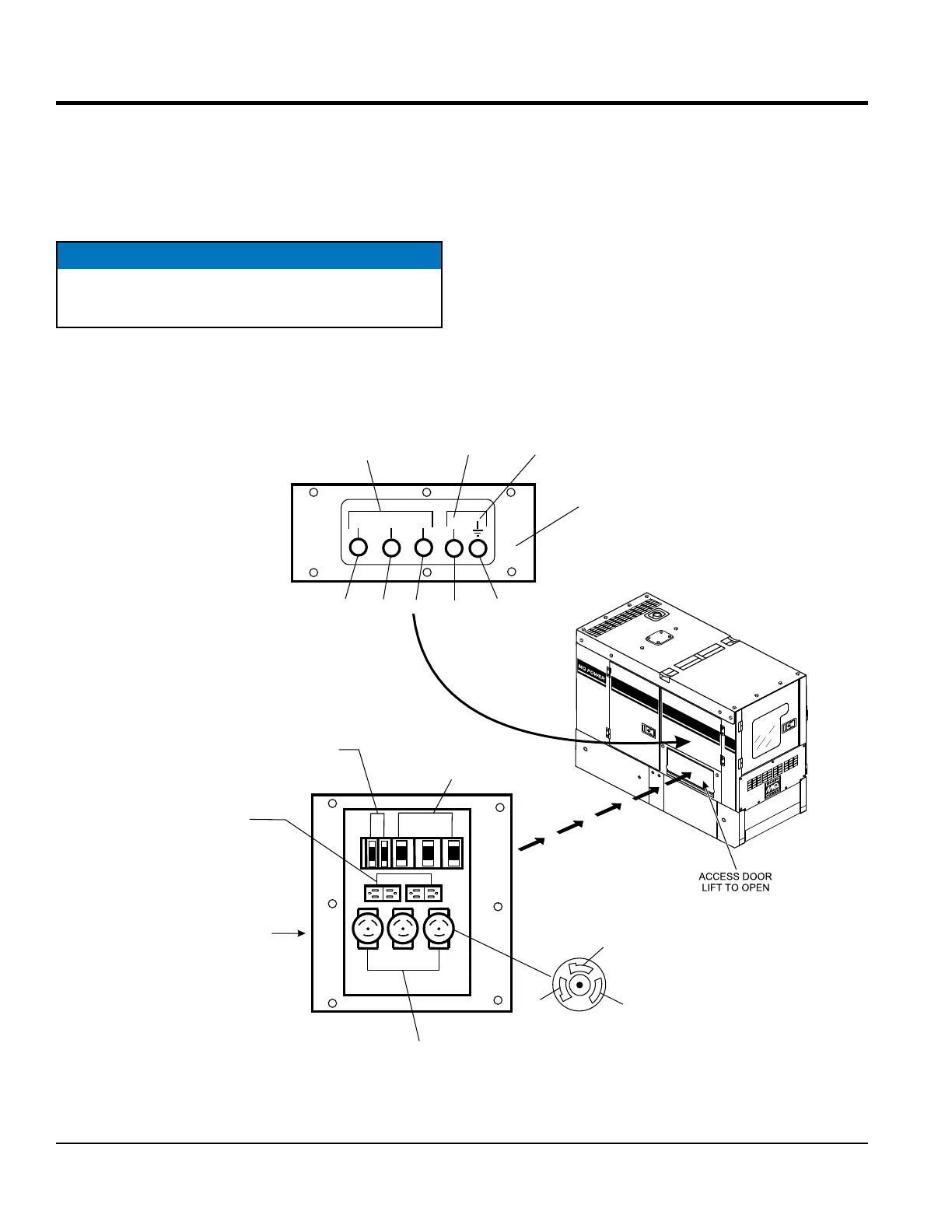

Figure 7. Output Terminal Panel
AUX. POWER RECEPTACLES
240/120V, 50 AMPS
120 VAC, 20 AMP
GFCI RECEPTACLES
Y
X
W
CS-6369
TWIST-LOCK
CIRCUIT BREAKERS
FOR GFCI RECEPTACLES
RECEPTACLE
AND
CIRCUIT BREAKER
PANEL
HARD WIRE
HOOKUP PANEL
O
U
V
W
BLACK RED BLUE WHITE GREEN
1Ø AND 3Ø,
480 -120 VAC
OUTPUT TERMINALS
NEUTRAL
TERMINAL
GROUND
TERMINAL
CIRCUIT BREAKERS
FOR CS-6369 TWIST
LOCK RECEPTACLES
