5 Mounting
Maschinenfabrik Reinhausen GmbH 201832 1800059/09 ENRS

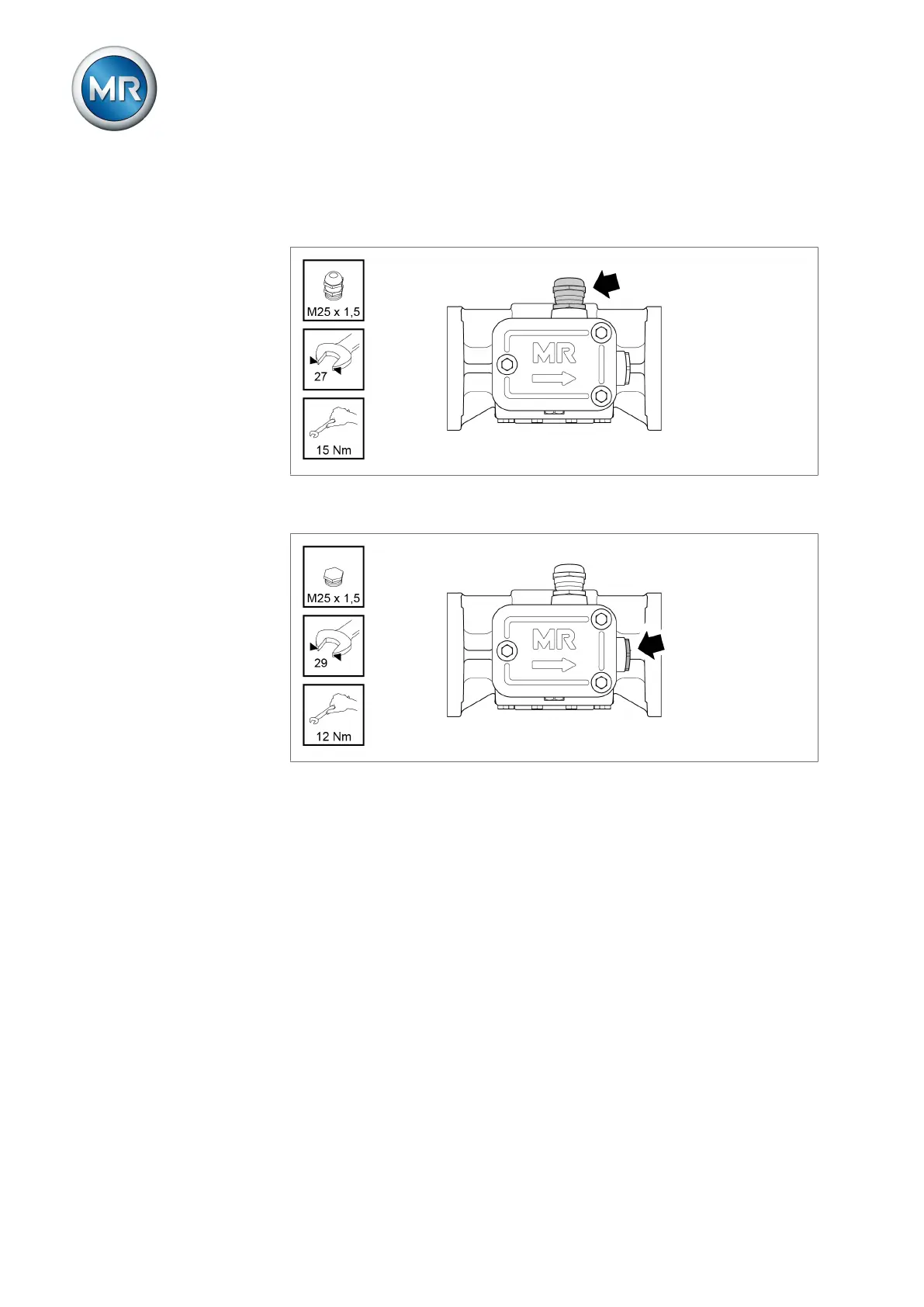

1. Insert cable gland (RS 2001, 2001/V, 2001/H, 2001/E, 2001/5, 2001/R) or
adapter (RS 2003 and RS 2004) in the tapped hole with the most favor-
able position.
Figure16: Tapped hole
2. Seal open tapped hole with dummy plug.
Figure17: Sealed with dummy plug
