5 Mounting
Maschinenfabrik Reinhausen GmbH 2018 331800059/09 EN RS

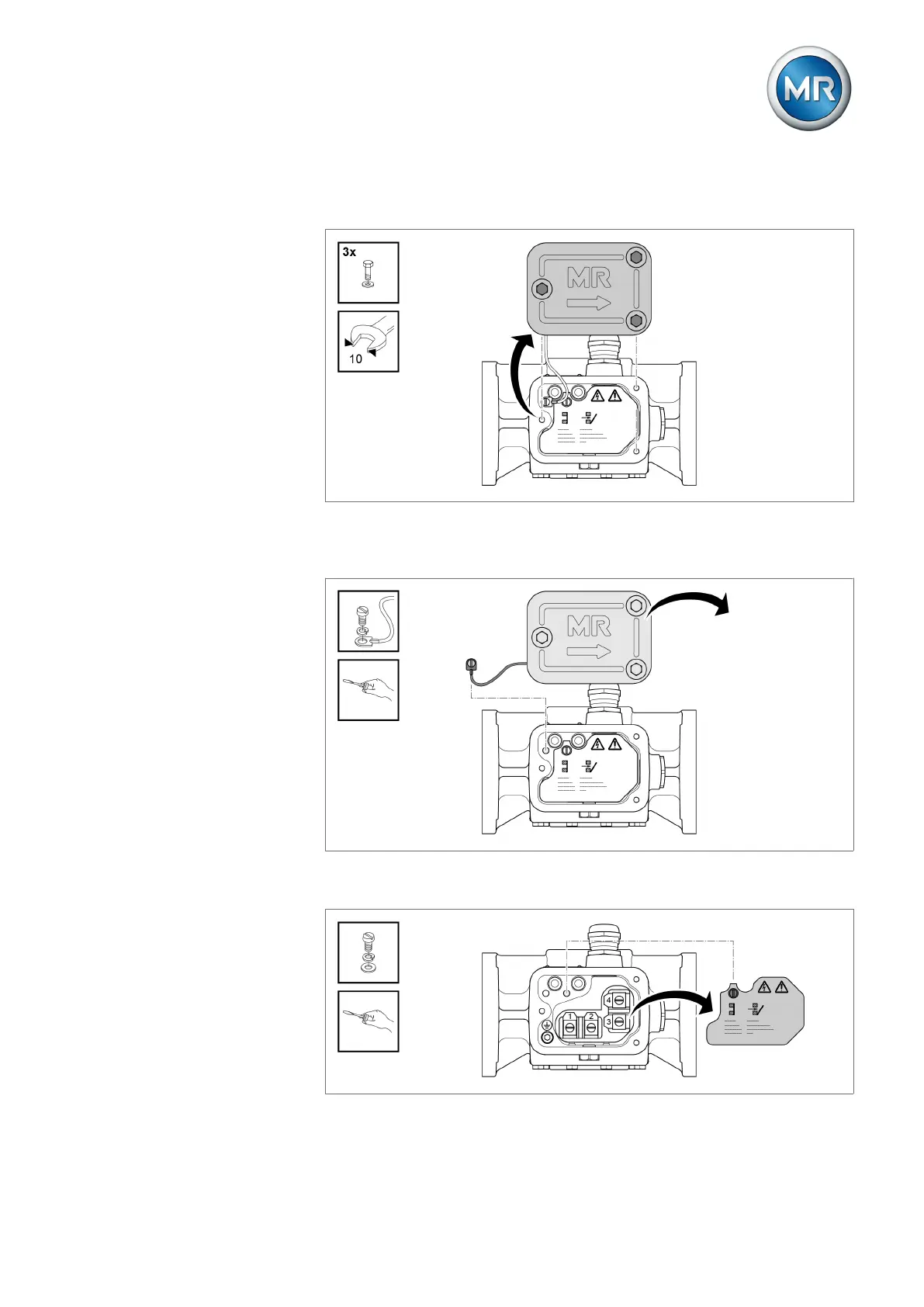

3. Loosen the three screws on the terminal box cover and lift off the terminal
box cover.
Figure18: Terminal box cover
4. Take off the slotted head screw for potential tie-in and remove the termi-
nal box cover with wire.
Figure19: Terminal box cover
5. Remove screw for the protective cover and take off the protective cover.
Figure20: Protective cover
