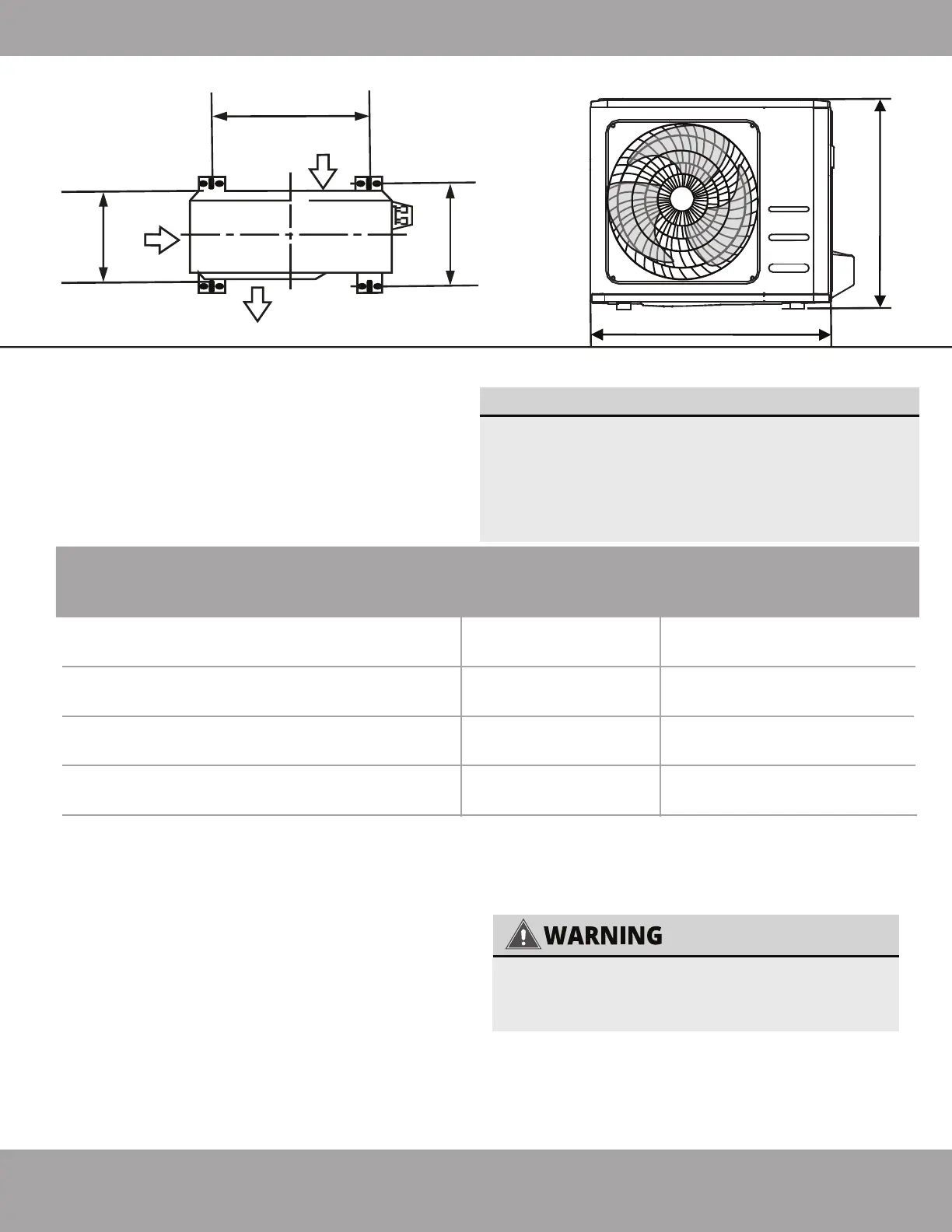

Outdoor Unit Installation
Outdoor Unit Dimensions:
Inches (Millimeters)
Width (W) x Height (H) x Depth (D)
Mounting Dimensions:
Inches (Millimeters)
Width (A)
Depth (B)
30.12 in x 21.85 in x 11.93 in
(765 mm x 555 mm x 303 mm)
17.8 in
(452 mm)
DIY-24-HP-C-230C
DIY-18-HP-C-230C
DIY-12-HP-C-115C
DIY-36-HP-C-230C
WHEN DRILLING INTO CONCRETE, EYE
PROTECTION IS RECOMMENDED AT ALL
TIMES.
W
H
D
Air Inlet
A
B
Air Outlet
Air Inlet
Fig. 5.5
If you are installing the outdoor unit on the
ground, or a concrete mounting platform, use
the following steps:
1. Mark the positions for four expansion bolts based
on dimensions in the Mounting Dimensions
chart and illustrations above.
2. Pre-drill holes for expansion bolts.
3. Clean concrete dust away from the holes.
4. Place a nut on the end of each expansion bolt.
5. Hammer expansion bolts into the pre-drilled holes.
6. Remove the nuts from the expansion bolts, and
place outdoor unit on bolts.
UNIT MOUNTING DIMENSIONS
The following is a list of different outdoor unit sizes
and the distance between their mounting feet. Prepare
the installation base of the unit according to the
dimensions in the table below, using the illustrations of
the unit above (Fig 5.5) as a guide to correspond with
the table.
35.04 in x 26.50 in x 13.46 in
(890 mm x 673 mm x 342 mm)
37.24 in x 31.89 in x 16.14 in
(946 mm x 810 mm x 410 mm)
37.24 in x 31.89 in x 16.14 in
(946 mm x 810 mm x 410 mm)
26.1 in
(663 mm)
26.5 in
(673 mm)
26.5 in
(673 mm)
11.3 in
(286 mm)
13.9 in
(354 mm)
15.9 in
(403 mm)
15.9 in
(403 mm)
TOP VIEW
7. Put a washer on each of the expansion bolts, then
reinstall the nuts.
8. Using a wrench, tighten each nut until snug.
Step 3: Anchor Outdoor Unit
The outdoor unit can be anchored to the ground or
to a wall-mounted bracket using M-10 bolts. Prepare
the installation base of the unit according to the
dimensions below. For instructions of how to mount
the unit to a wall mounted bracket, please refer to the
following page.
FRONT VIEW
