Electrical Connections

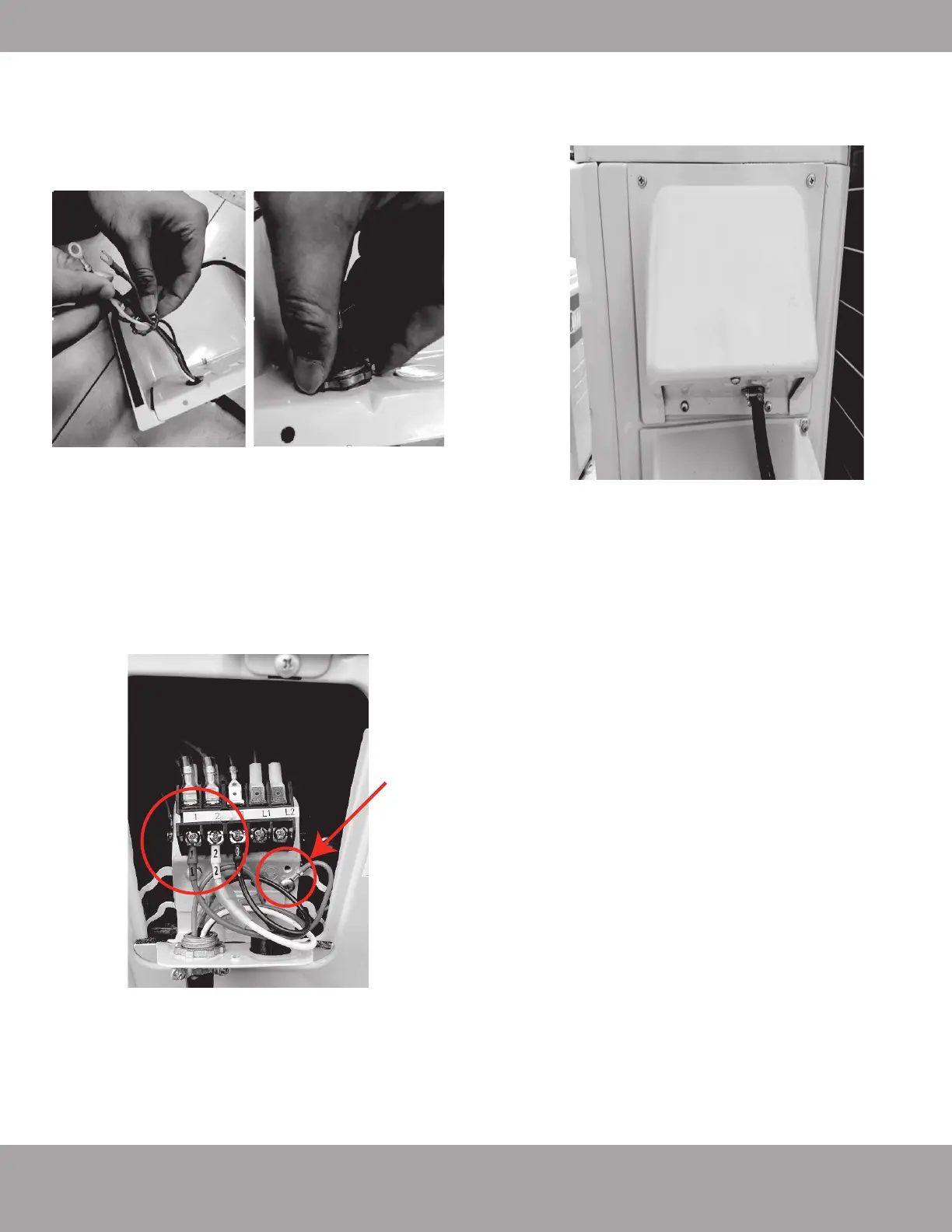

4. Now, secure the MC cable to the electrical cover
by pushing the threaded end of the cable into the
hole and reinstalling the retaining nut previously
removed onto the end of the cable. Please refer to
the images below.
5. Then, you will connect the wires to the terminal
block. Each wire should be numbered and
correspond with a connection port on the terminal
block. Match up each wire with the correct port,
and firmly screw the u-lug of each wire to its
corresponding terminal. Now, screw the ground
wire into the bottom screw of the terminal block,
as shown in the image below.
Ground wire
Connection
6. Finally, reinstall the electrical wiring cover and secure
it using by reinstalling the screws you previously
removed.
