 Outdoor Unit Disassembly 18 
4. CA30
Procedure Illustration
1) Turn off the air conditioner and the
power breaker.
2) Remove the screws of the shield and
then remove it.(3 screws) (see CJ_
Multi_CA30-001).
3) Remove the screws of the top cover
and then remove the top cover (3
screws). One of the screws is located
underneath the big handle (see CJ_
Multi_CA30-002).

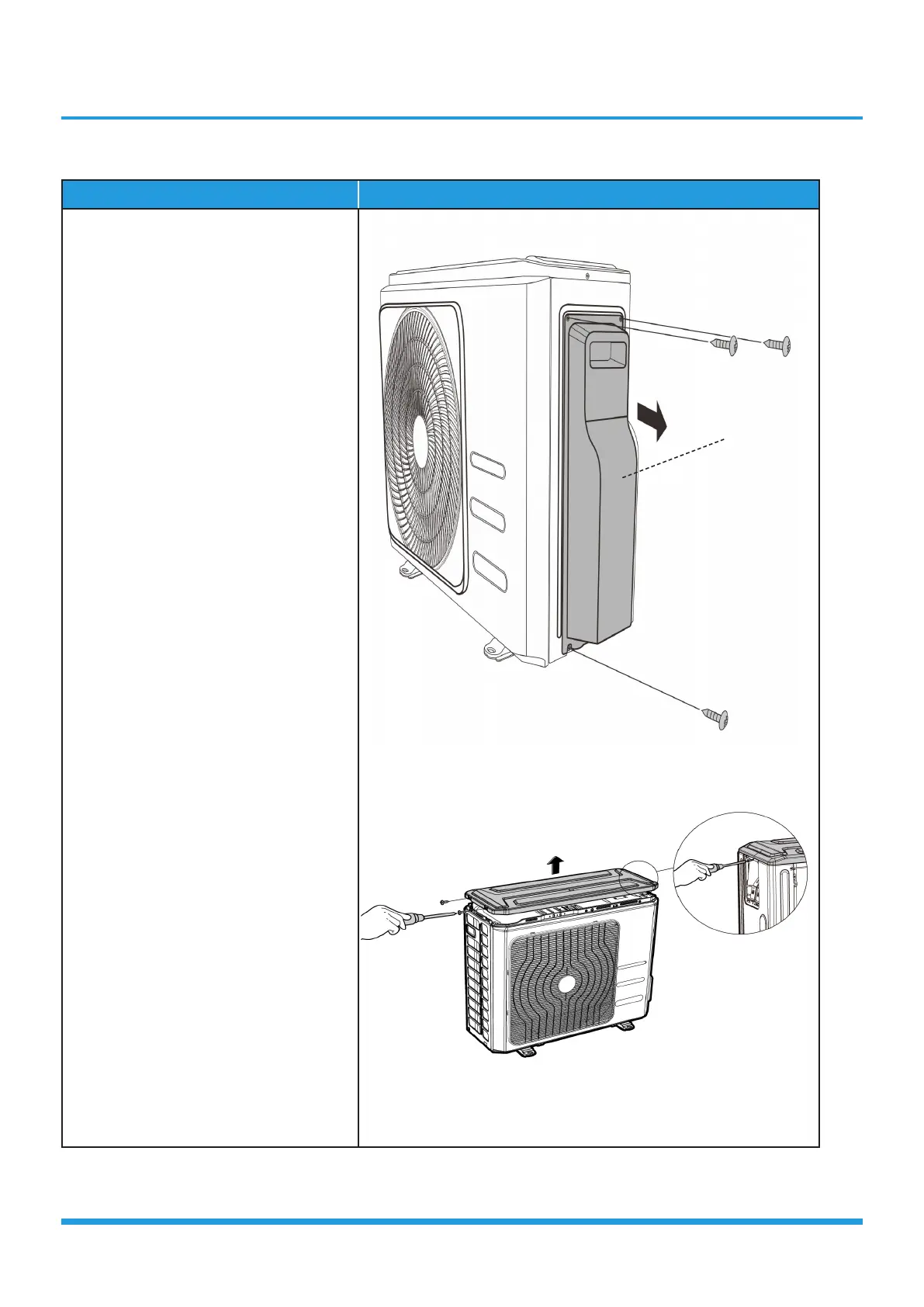

CJ_Multi_CA30-001
CJ_Multi_CA30-002
Note: This section is for reference only. Actual unit appearance may vary.
Shield
