MrCool DIY-MULTI3-27HP230C User Manual

 Outdoor Unit Disassembly 37 
Procedure Illustration

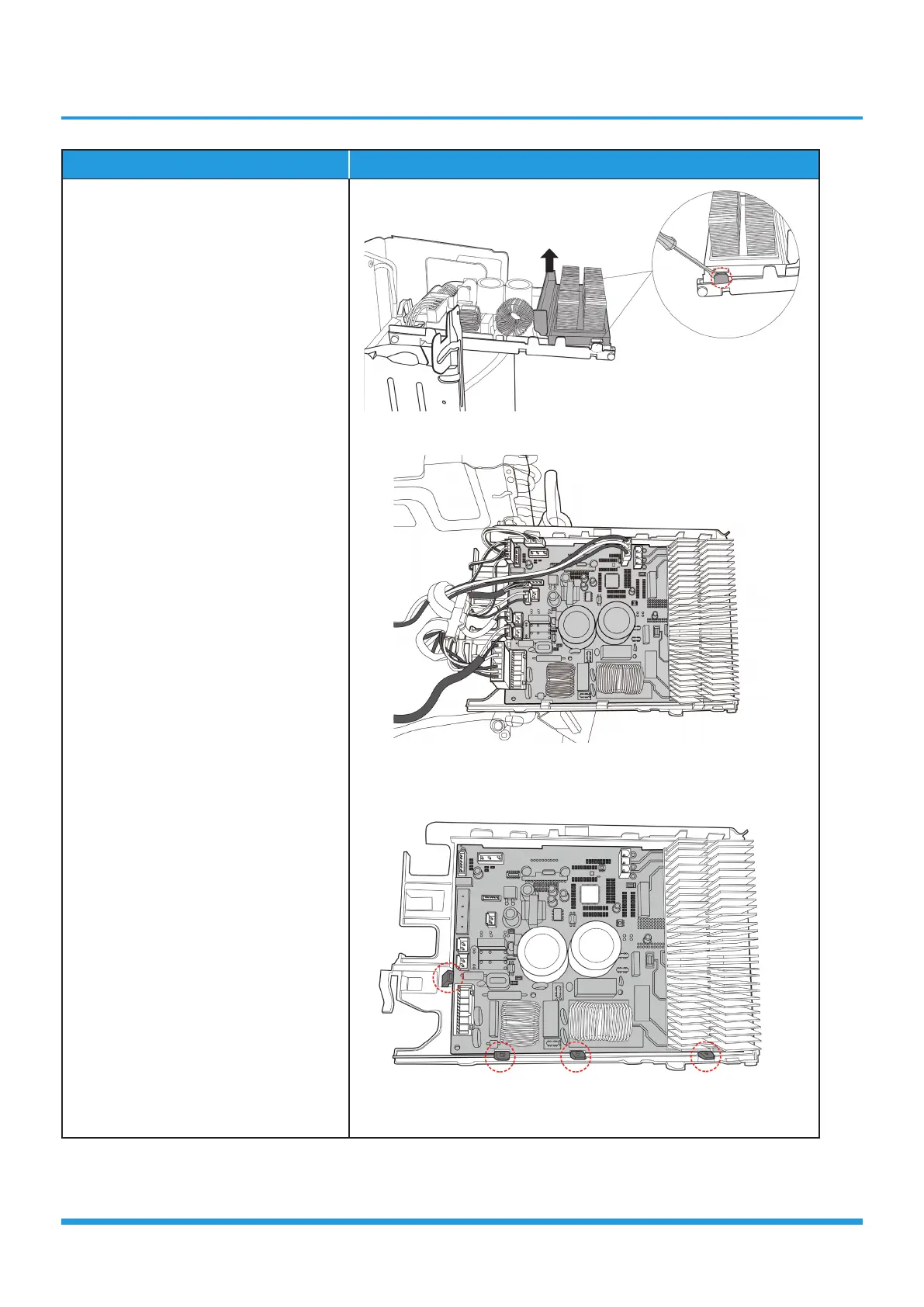

4) Remove the fixing board (2 hooks)
(see CJ_ODU_Multi_PCB_005-4).
5) Disconnect the connectors from
the electronic control board (see
CJ_ODU_Multi_PCB_005-5).
6) Then remove the electronic control
board (4 hooks).(see CJ_ODU_Multi_
PCB_005-6).
CJ_ODU_Multi_PCB_005-4
CJ_ODU_Multi_PCB_005-5
CJ_ODU_Multi_PCB_005-6
Note: This section is for reference only. Actual unit appearance may vary.
