MrCool Universal Series User Manual

Page 28mrcool.com
Unit Installation
Electrical Connection

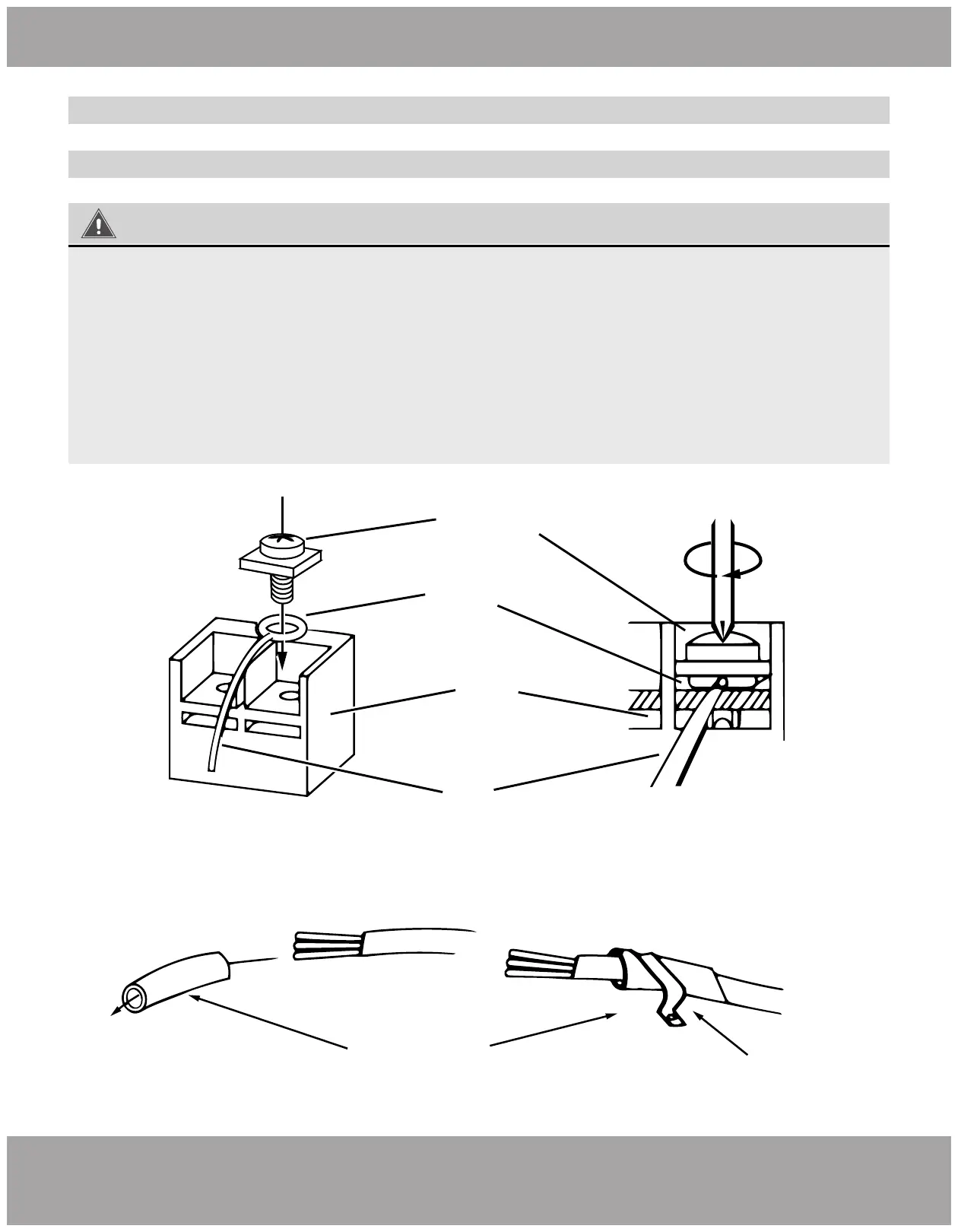

Connecting the Power Cord & Communication Wire
Screw with
Special Fastener
Round
Terminal
Wire
Terminal
Board
For all terminal wiring (Refer to Fig. 2.28):
Lead the connection wire and power cord through the insulation tube. Then fix
the wires with wire clamps (as shown in Fig. 2.28).
Fig. 2.28
Fig. 2.27
Cord Clamp
Insulation Tube
WARNING
1. Before work begins, please check to ensure the unit is powered OFF.
2. Improper wire connection may cause electrical components to burn.
3. Connect the wires firmly to the wiring box. Incomplete installation may create a fire hazard.
4. Use wire clamps to secure the external covers of connecting wires. Insulators must be clamped
securely; otherwise, electrical leakage may occur.
5. Ground wire must be connected.

MrCool Universal Series Specifications

General

Type	Inverter
Brand	MrCool
Series	Universal Series
Refrigerant	R410A
Phase	1
Heating Capacity	Varies by model
Cooling Capacity	Varies by model
Compatibility	Universal
HSPF Rating	10
Voltage	208/230V
Operating Temperature (Cooling)	Varies by model
Operating Temperature (Heating)	Varies by model
Indoor Noise Level (dB)	Varies by model
Outdoor Noise Level (dB)	Varies by model
Indoor Unit Dimensions (H x W x D)	Varies by model
Outdoor Unit Dimensions (H x W x D)	Varies by model
Indoor Unit Weight	Varies by model
Warranty	5 years
