7

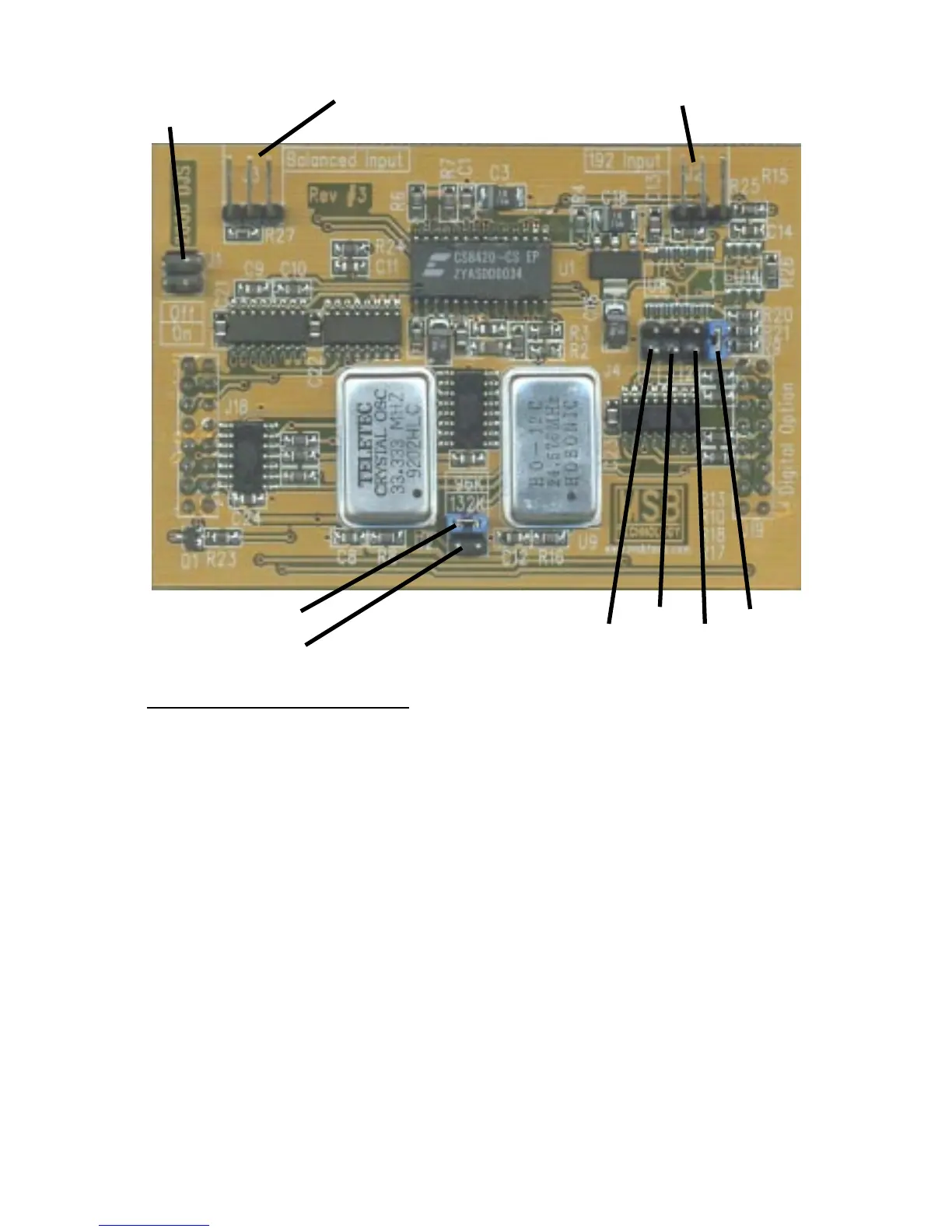

BALANCED INPUT
MSB NETWORK INPUTUPSAMPLING SWITCH
96K UPSAMPLING
132K UPSAMPLING
CH 4
CH 3
CH2
CH 1
MSB Network Channel Selection
The MSB Network supports 4 stereo channels of 192k data at once. Any DAC can
be configured to decode any of these 4 channels. For example, when an upgraded
DVD player is playing a DTS music CD, one DAC can be configured to Channel 1
and will receive the front channels. A second DAC can be attached to the same wire
at the same time and by selecting Channel 2 will receive and decode the rear chan-
nels. The 3rd channel is for the front and sub channels if you want to use them. The
4th channel is for future formats which may come along. Move the jumper located
on the upsampling board as shown in the diagram to select the channel.
More than one DAC can be attached to the same cable by taking advantage of a
DAC with both an input and output like the Platinum to create a daisy chain con-
figuration. A MSB Network output upgrade provides three identical connectors
allowing three DACs to be driven at once, each set up for a different channel.
