INSTALLATION INSTRUCTIONS 11
AUTOTRONIC CONTROLS CORPORATION • 1490 HENRY BRENNAN DR., EL PASO, TEXAS 79936 • (915) 857-5200 • FAX (915) 857-3344

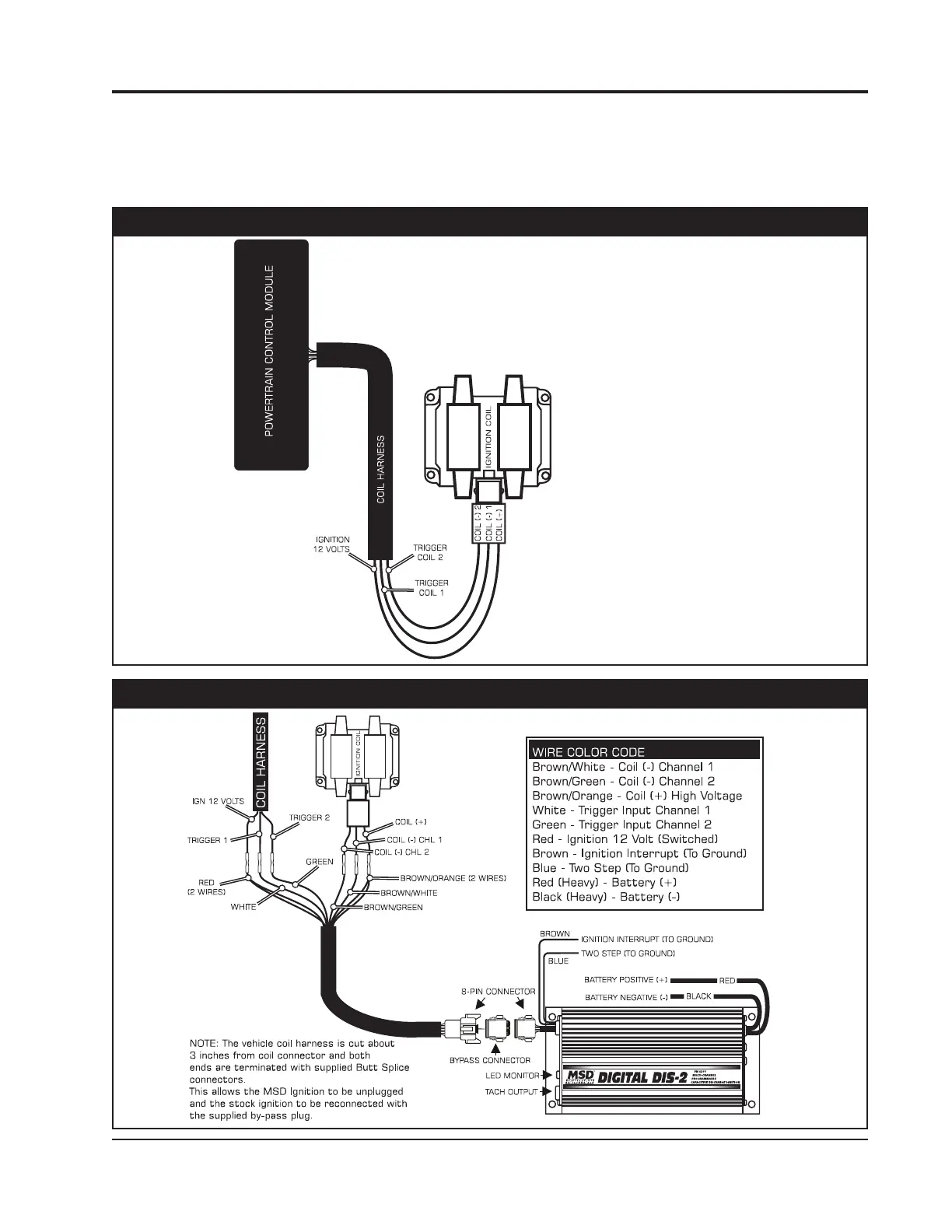

Figure 10 GENERAL DIS WIRING Typical 4-cylinder application (factory wiring)
Figure 11 GENERAL DIS WIRING Typical 4-cylinder application with DIS-2 Ignition.
WIRING DIAGRAMS
The following wiring diagrams illustrate numerous installations on different vehicles and applications.
If you experience difficulties when installing your MSD DIS-2 or DIS-4 Ignition, contact our Customer
Service Department at (915) 855-7123 Monday - Friday, 8am - 5pm mountain time or e-mail us at:
msdtech@msdignition.com.
