To change the springs, remove the cap and rotor and use needlenose pliers to remove the springs.
Be sure the new springs seat in the groove on the pin.
To change the springs, remove the cap and rotor and use needlenose pliers to remove the springs.
Be sure the new springs seat in the groove on the pin.
Figure 2 The Factory Equipped Curve.
Timing Curve From Factory
Figure 3 Spring Combination Chart.
SPRING COMBINATION RATE OF ADVANCE FIGURE 4
2- Heavy Silver SLOWEST A
1- Heavy Silver B
1- Light Blue
1-Heavy Silver C
1-Light Silver
2- Light Blue D
1- Light Silver E
1- Light Blue
2- Light Silver FASTEST F

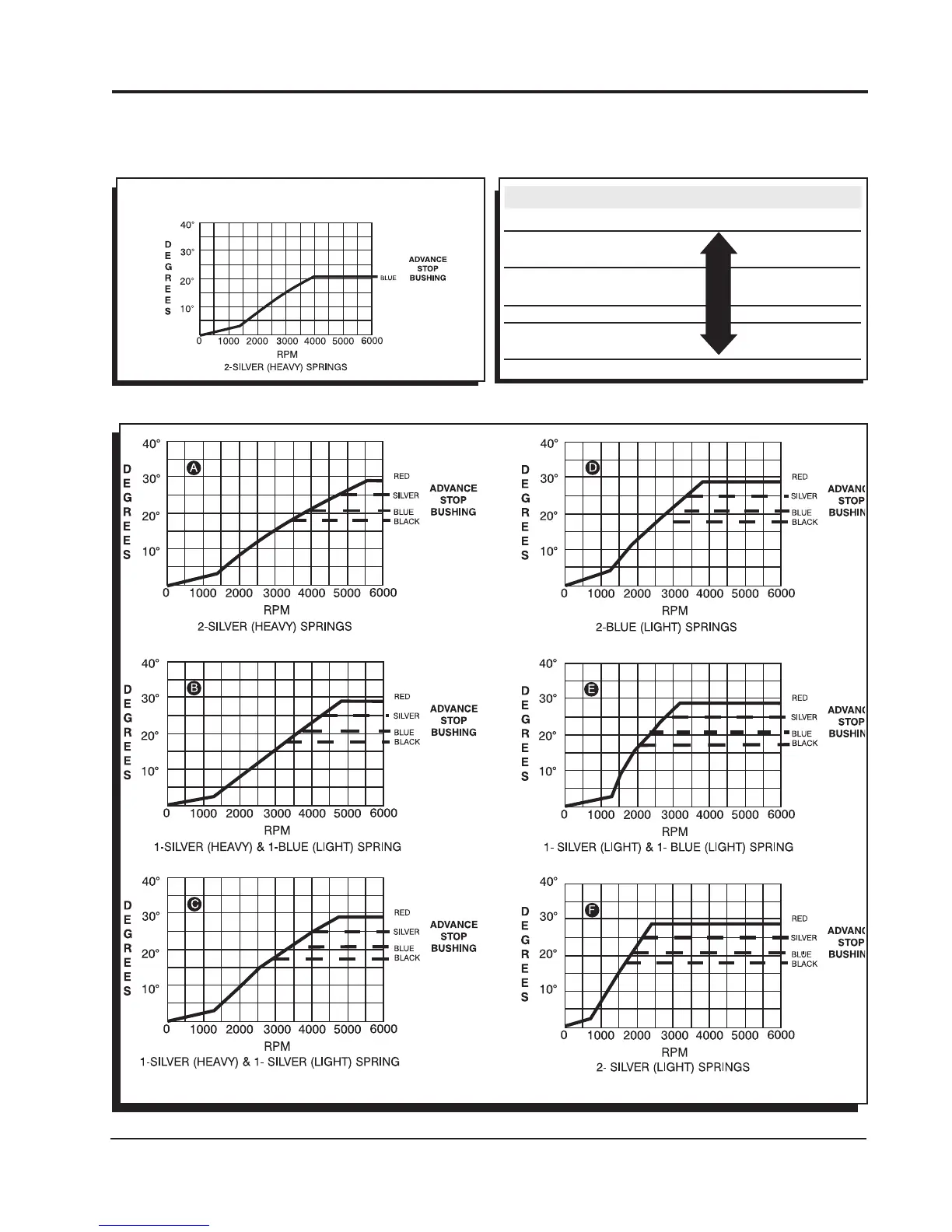

Figure 4 Advance Curves.
