INSTALLATION INSTRUCTIONS 3
M S D I G N I T I O N ww w . m s d i g n i t i o n . c o m (9 1 5 ) 85 7- 5 2 0 0 FA X (9 1 5 ) 85 7 - 3 3 4 4

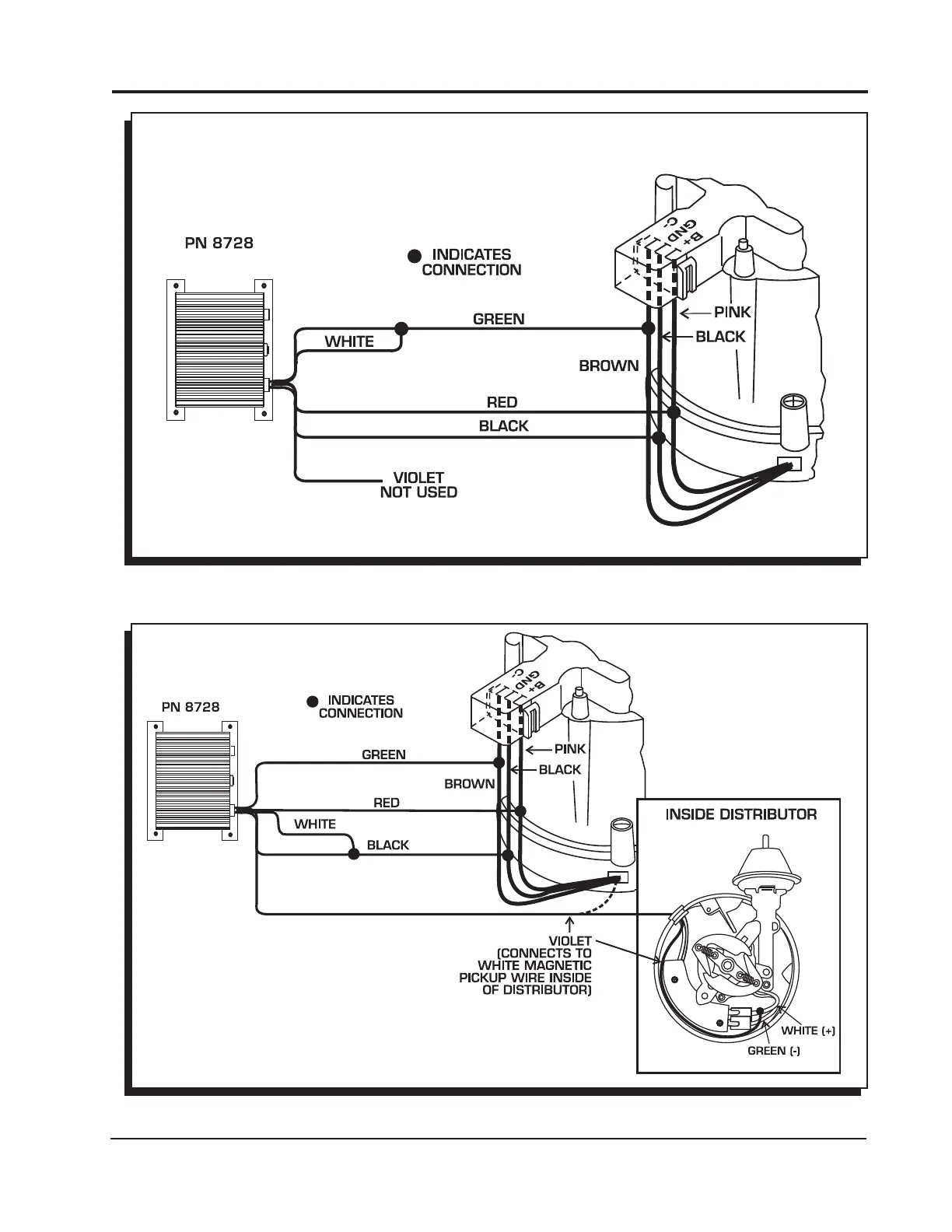

Figure 4 Wiring to a GM HEI Distributor, using the Module.
Figure 5 Wiring to a GM HEI Distributor using the Magnetic Pickup.
Note: The GM Unitized Coil,HEI Distributor was produced 
with  several  different  modules.  If  this  installation 
seems to cause a rough limit, try the wiring shown 
in Figure 5 below.
