2 INSTALLATION INSTRUCTIONS
M S D I G N I T I O N • ww w . m s d i g n i t i o n . c o m • (9 1 5 ) 85 7- 5 2 0 0 • FA X (9 1 5 ) 85 7 - 3 3 4 4
WIRING
WARNING: High voltage is present on the coil terminals. Do Not touch the coil terminals or tower
when the engine is cranking or running.
Red Connects to a switched 12 volt source.
Black Connects to ground on the engine.
Green Connects to the coil negative (-) terminal.
Trigger Pickup Wires
White If the distributor is triggered by breaker points or an amplifier, this wire needs to be
spliced to its trigger wire.
Violet If the distributor uses a magnetic pickup, this wire needs to be spliced into the positive
mag pickup wire.

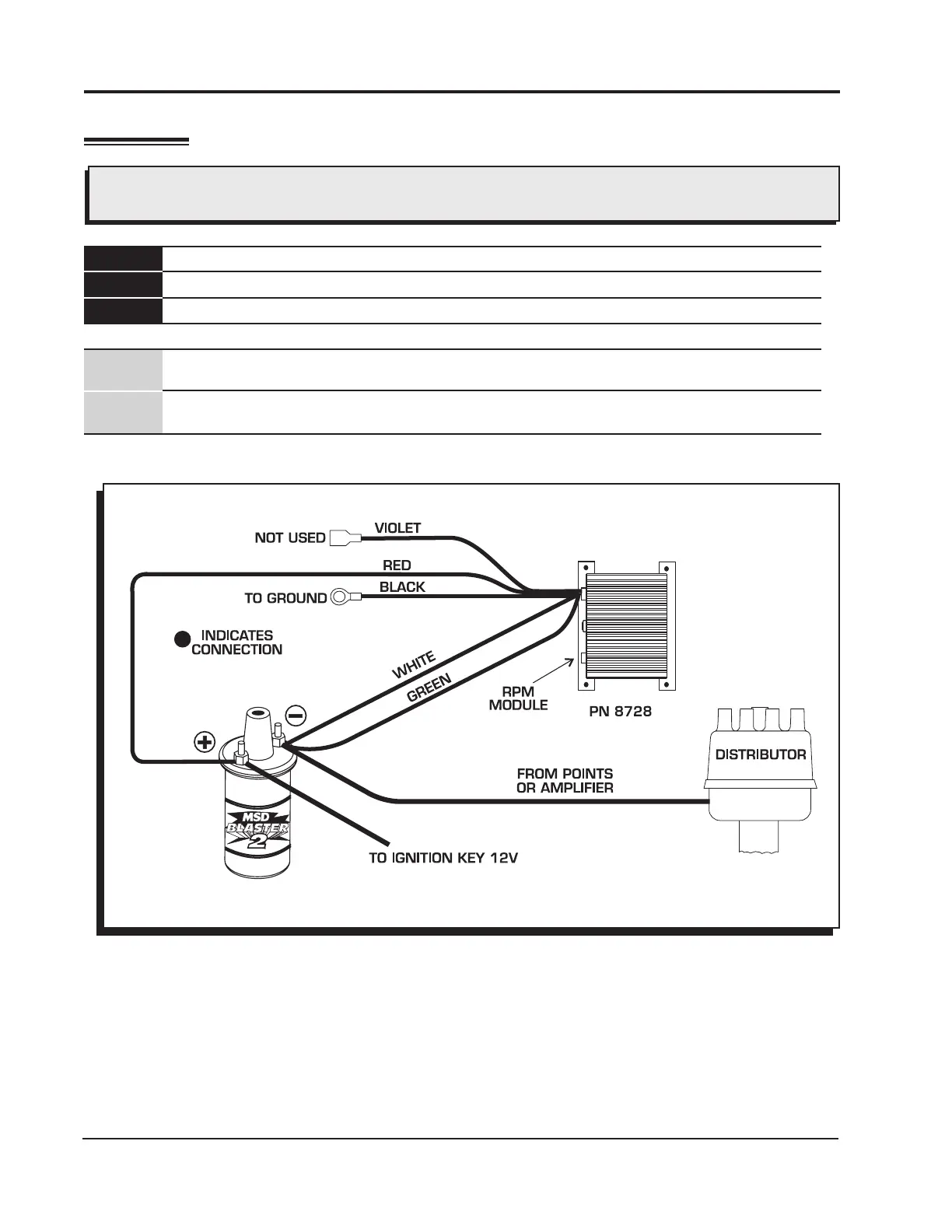

Figure 3 Wiring to a Points/Amplifier Ignition.
