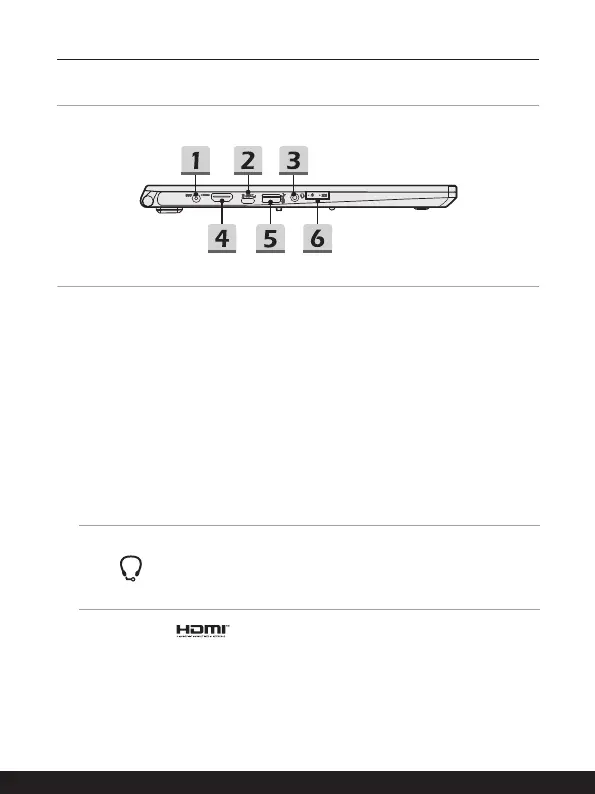

Left Side View
1. Power Connector
This connector is to connect the AC/DC adapter and supply power for the notebook.
2. USB 3.2 Gen 2 Port (Type C) (with DisplayPort function) (optional)
USB 3.2 Gen 2, the SuperSpeed USB, delivers the higher interface speeds for
connecting various devices, such as storage devices, hard drives, or video cameras,
and offers more advantages over high-speed data transferring.
The slim and sleek USB Type C connector features reversible plug orientation
and cable direction, and supports 5V/3A portable charging power when AC power
is connected. And it also supports scalable performance to future-proof solution,
including USB 3.x, DisplayPort, Audio.
3. Audio Port Connectors
Make high quality sound blaster with stereo system.
Combo Audio Connector
• A connector for headsets with attached microphones
• The Combo Audio Connector supports 4-Pole 3.5mm
headphone jack.
4. HDMI Connector
HDMI (High-Definition Multimedia Interface) technology is the industry-leading
interface and de-facto standard connecting high-definition (HD) and ultra high-
definition (UHD) equipment.
To Next Page
