MSI AE2410 User Manual

1-9
MS-AE32
8
Subwoofer (Optional)
- A subwoofer (a complete loudspeaker) is provided to reproduce
low-pitched audio frequencies (the bass).
9
TV Antenna Connector
- This connector is provided for digital TV antenna.
10
Power Jack
- The AC/DC adapter converts AC power to DC power for this jack.
Power supplied through this jack supplies power to the PC. To pre-
vent damage to the PC, always use the supplied power adapter.
11
VGA-Out Port
- The DB15-pin female connector is provided for VGA-interface de-
vice.
12
USB 2.0 Port
- The USB (Universal Serial Bus) port is for attaching USB devices
such as keyboard, mouse, or other USB-compatible devices. It
supports up to 480Mbit/s (Hi-Speed) data transfer rate.
13
USB 3.0 Port (Optional)
- The USB 3.0 port is backward-compatible with USB 2.0 devices. It
supports up to 5Gbit/s (SuperSpeed) data transfer rate.
14
USB 3.0 Port (with MSI Super Charger Technology) (Optional)
- The USB 3.0 port is backward-compatible with USB 2.0 devices. It
supports up to 5Gbit/s (SuperSpeed) data transfer rate.
With MSI Super Charger Technology, not only does it function as
normal USB 3.0 port, but it also enables users to charge USB
devices even when the system is turned o󰘯. Users will no longer
need to power on the system just to charge USB devices. Better
yet, it can reduce the charge time up to 40%, making life more
e󰘲cient than ever.

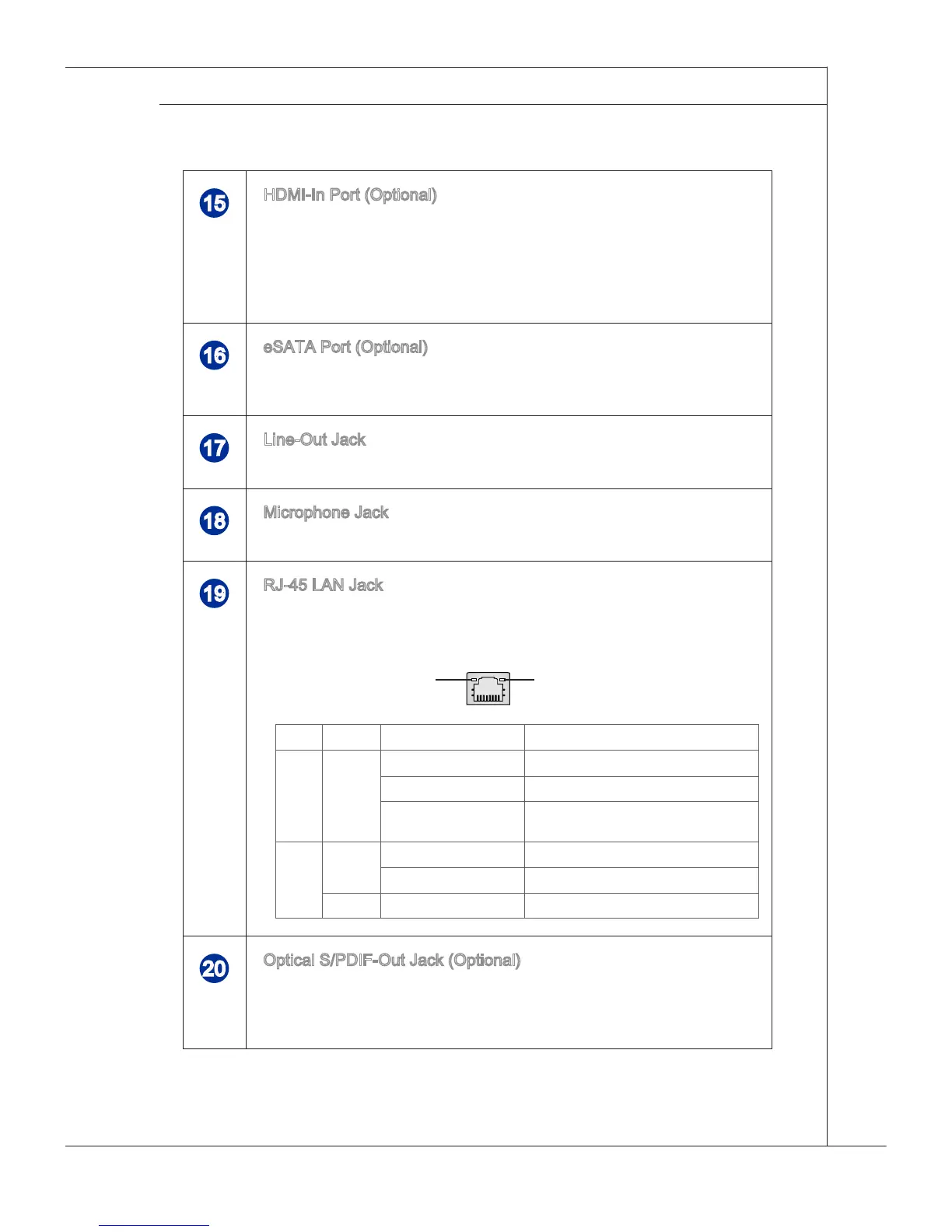

15
HDMI-In Port (Optional)
- The High-De󰘰nition Multimedia Interface (HDMI) is an all-digi-
tal audio/video interface capable of transmitting uncompressed
streams. HDMI supports all TV format, including standard, en-
hanced, or high-de󰘰nition video, plus multi-channel digital audio
on a single cable.
16
eSATA Port (Optional)
- The eSATA (external SATA) port is provided for eSATA hard disk
drives.
17
Line-Out Jack
- This connector is provided for headphones or speakers.
18
Microphone Jack
- This connector is provided for microphones.
19
RJ-45 LAN Jack
- The standard RJ-45 LAN jack is provided for connection to the Lo-
cal Area Network (LAN). You can connect a network cable to it.
Yellow Green/ Orange
LED Color LED State Condition
Left Yellow O󰘯 LAN link is not established.
On (steady state) LAN link is established.
On (brighter & pulsing) The computer is communicating with
another computer on the LAN.
Right Green O󰘯 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
20
Optical S/PDIF-Out Jack (Optional)
- This S/PDIF (Sony & Philips Digital Interconnect Format) jack
is provided for digital audio transmission to external speakers
through an optical 󰘰ber cable.
