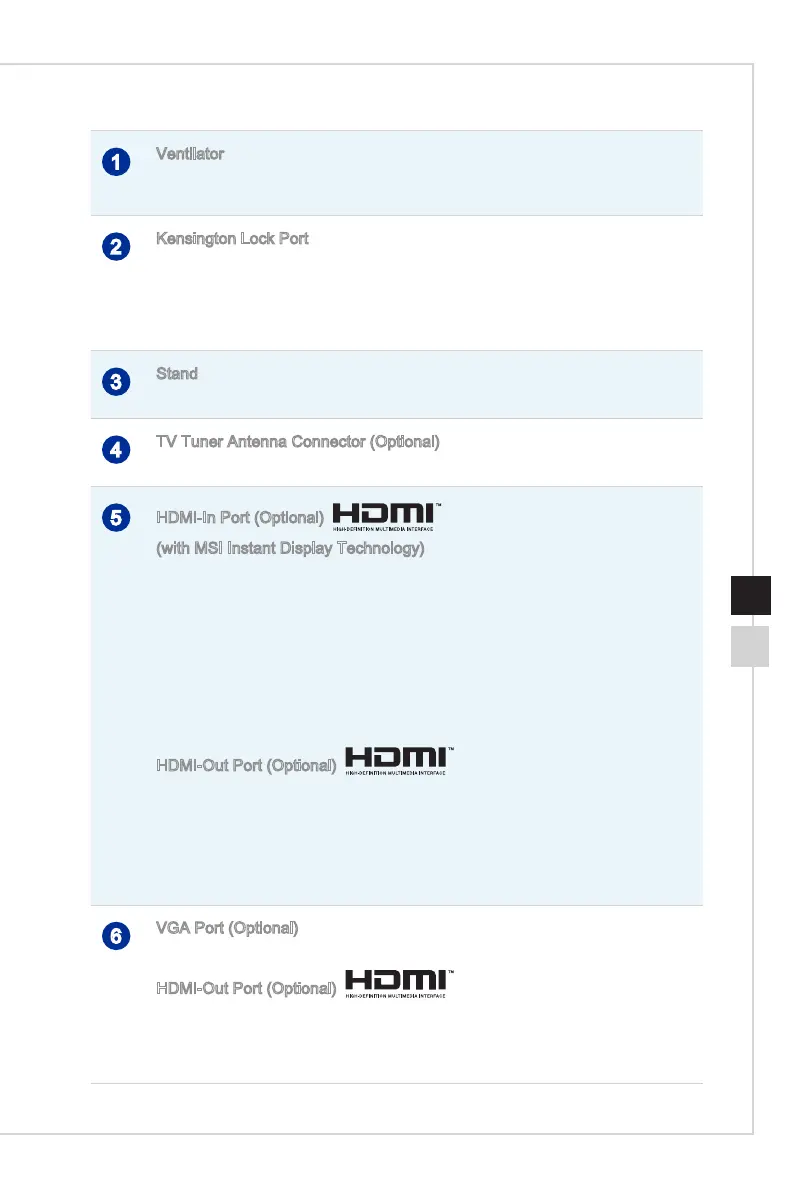

Overview
1-51-4
1
Ventilator
The ventilator on the enclosure is used for air convection and to prevent the equipment
from overheating� Do not cover the ventilator�
2
Kensington Lock Port
This AIO PC provides a Kensington lock port, which allows users to secure the AIO PC
in place with a key or some mechanical PIN device and attached through a rubberised
metal cable� The end of the cable has a small loop which allows the whole cable to be
looped around a permanent object, such as a heavy table or other similar equipment,
thus securing the AIO PC in place�
3
Stand
Use this stand to position your system on a at and stable surface.
4
TV Tuner Antenna Connector (Optional)
This connector is provided for digital TV tuner antenna�
5
HDMI-In Port (Optional)
(with MSI Instant Display Technology)
The High-Denition Multimedia Interface (HDMI) is an all-digital audio/video interface
capable of transmitting uncompressed streams� HDMI supports all TV format, including
standard, enhanced, or high-denition video, plus multi-channel digital audio on a single
cable�
With MSI Instant Display Technology, when you connect power to the AIO PC
successfully, the monitor will automatically enter “stand by” mode without pressing the
power button� When devices are connected to the HDMI-in port, the monitor will be
turn on immediately� You can also switch the modes through the Monitor Power / Mode
Button on the side panel if you have already turned on your AIO PC� This technology
helps saving more energy for your system�
HDMI-Out Port (Optional)
The High-Denition Multimedia Interface (HDMI) is an all-digital audio/video interface
capable of transmitting uncompressed streams� HDMI supports all TV format, including
standard, enhanced, or high-denition video, plus multi-channel digital audio on a single
cable�
* Please refer to the printed icon on the chassis for the exact position of HDMI-In Port
and HDMI-Out Port�
6
VGA Port (Optional)
The DB15-pin female connector is provided for VGA-interface device�
HDMI-Out Port (Optional)
The High-Denition Multimedia Interface (HDMI) is an all-digital audio/video interface
capable of transmitting uncompressed streams� HDMI supports all TV format, including
standard, enhanced, or high-denition video, plus multi-channel digital audio on a single
cable�
