Overview
1-71-6

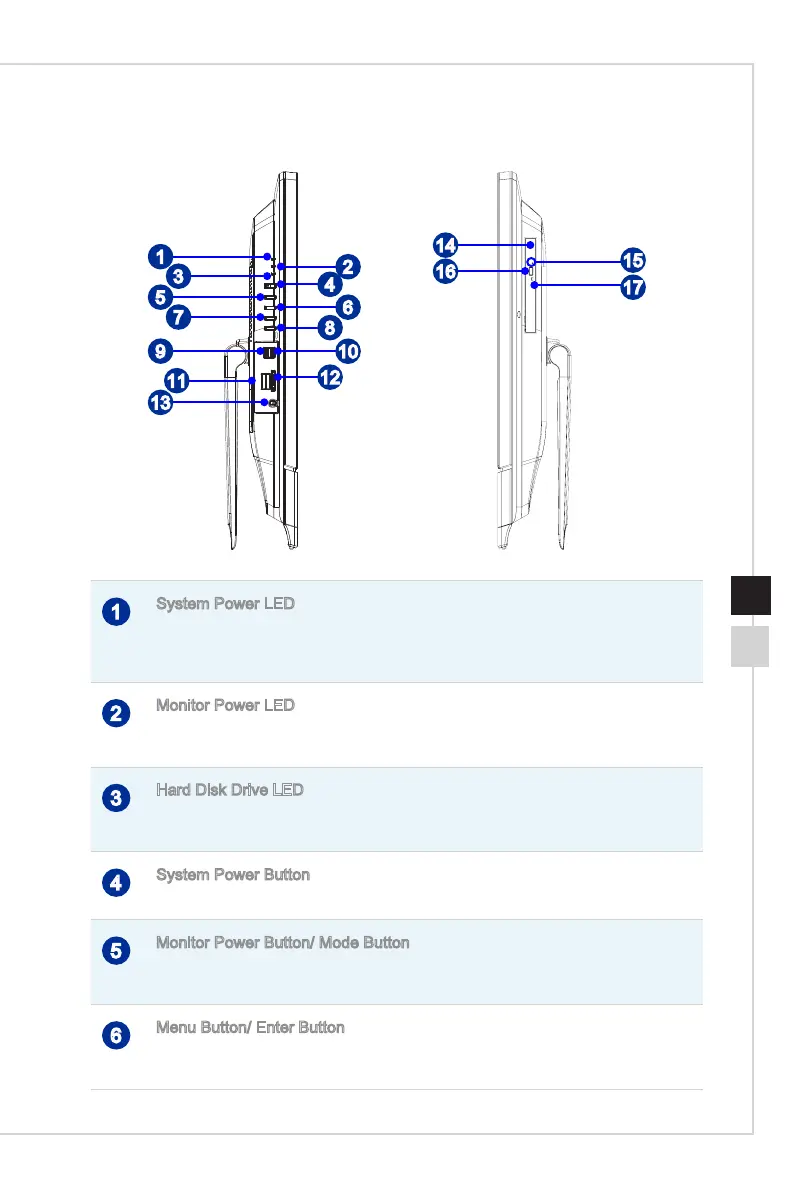

h Side View
14
16
17
15
10
12
2
4
6
8
13
3
5
7
1
11
9
1
System Power LED
The power LED glows when the system is turned on and goes o when the system is
shut down� In terms of power saving, the LED blinks in S3 (Suspend to RAM) mode and
goes o in S4 (Suspend to Disk) mode.
2
Monitor Power LED
The power LED glows when the monitor is turned on and goes o when the monitor is
shut down�
3
Hard Disk Drive LED
This indicator shows the activity status of the HDD. It ashes when the system is
accessing data on the HDD and remains o when no disk activity is detected.
4
System Power Button
Press the system power button to turn the system on or o.
5
Monitor Power Button/ Mode Button
Press this button to power on/o the monitor, switch between PC/HDMI modes, enter
OSD submenus, or exit OSD submenus�
6
Menu Button/ Enter Button
Press this button to view the OSD main menu, enter OSD submenus, or exit OSD
submenus�
To Next Page
