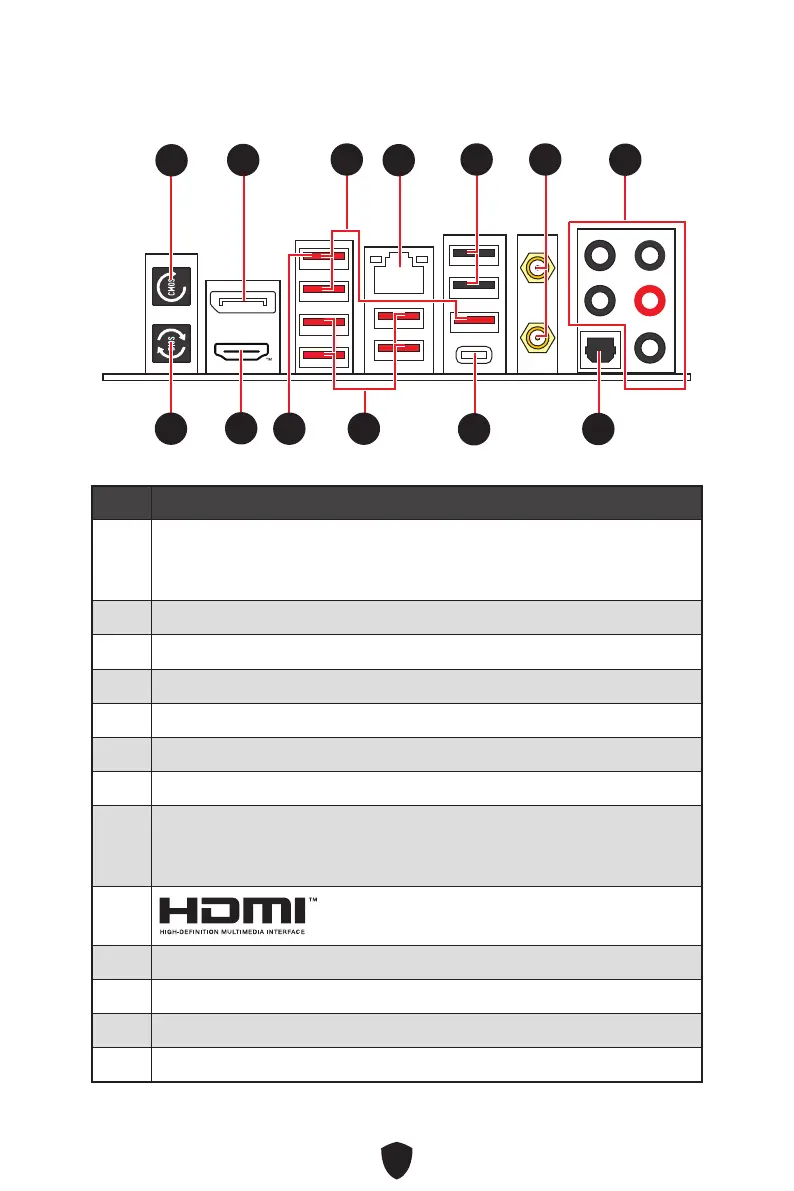

Back Panel Connectors
Item Description
1
Clear CMOS button
∙ Power off your computer. Press and hold the Clear CMOS button for
about 5-10 seconds to reset BIOS to default values.
2 DisplayPort
3 USB 3.2 Gen 2 10Gbps Type-A ports (From CPU)
4 2.5Gbps LAN (RJ45) port
5 USB 2.0 Type-A ports (From B650 chipset)
6 Wi-Fi antenna connectors
7 Audio ports
8
Flash BIOS button
∙ Please refer to page 57 for details about updating BIOS with Flash BIOS
button.
9
10 Flash BIOS port
11 USB 3.2 Gen 2 10Gbps Type-A ports (From B650 chipset)
12 USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset)
13 Optical S/PDIF Out connector
11
77
22
55
44
66
88
99
1212
1313
33
1010 1111

MSI B650 CARBON WIFI Specifications

General

Chipset	AMD B650
Form Factor	ATX
Socket	AM5
Memory Slots	4
Max Memory	128 GB
SATA Ports	6
Networking	Wi-Fi 6E, 2.5G LAN
Audio	Realtek ALC4080 Codec
Bluetooth	Bluetooth 5.2
PCIe Slots	1 x PCIe 3.0 x1
USB Ports	1 x USB 3.2 Gen 2x2 Type-C, 4 x USB 2.0
Memory Speed	DDR5-6400+ (OC)
