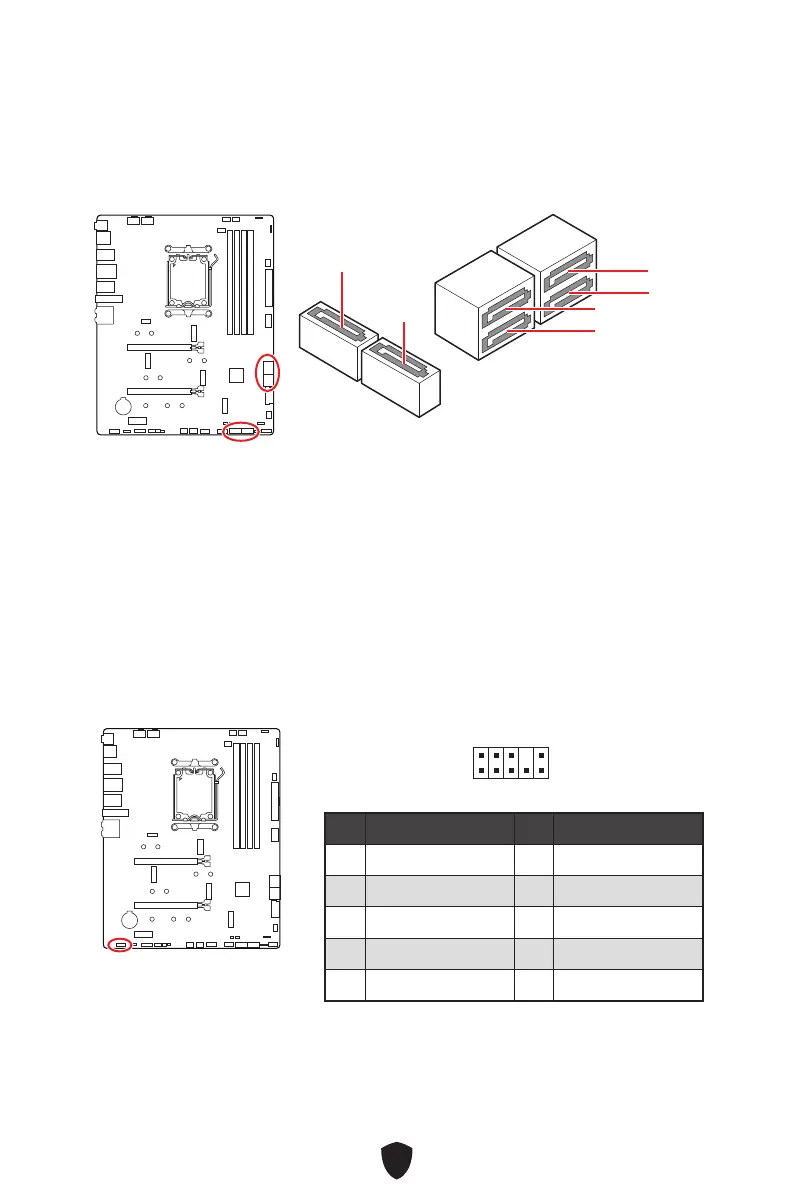

SATA_1~4 & SATA_A1~2: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one

SATA device.

⚠

Important

∙

Please do not fold the SATA cable at a 90-degree angle. Data loss may result during

transmission otherwise.

∙

SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the flat connector be connected to the motherboard for space

saving purposes.

SATA_1

SATA_3

SATA_2

SATA_4

SATA_A2

SATA_A1

JAUD1: Front Audio Connector

This connector allows you to connect audio jacks on the front panel.

2 10

Pin Signal Name Pin Signal Name

1 MIC L 2 Ground

3 MIC R 4 NC

5 Head Phone R 6 MIC Detection

7 SENSE_SEND 8 No Pin

9 Head Phone L 10 Head Phone Detection
