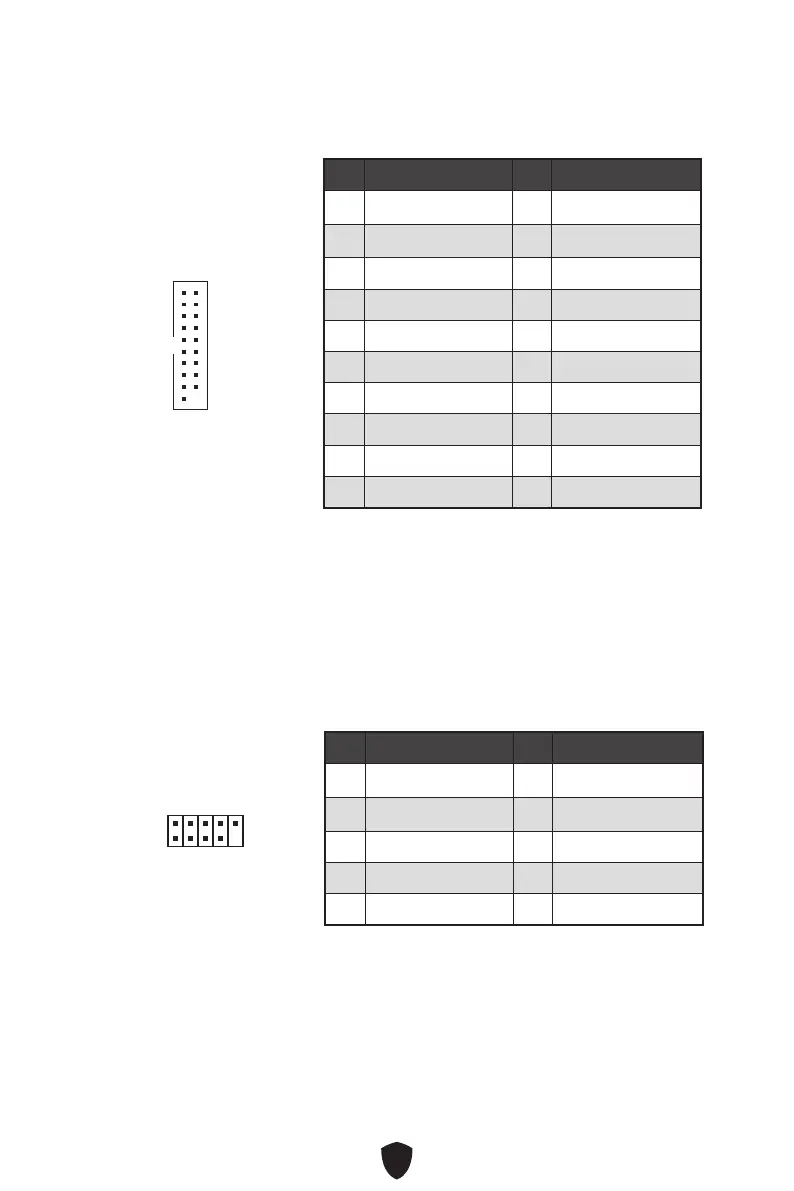

JUSB2: USB 3.2 Gen 1 Connector

This connector allows you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.



Important

Note that the Power and Ground pins must be connected correctly to avoid possible

damage.

Pin Signal Name Pin Signal Name

1 Power 2 USB3_RX_DN

3 USB3_RX_DP 4 Ground

5 USB3_TX_C_DN 6 USB3_TX_C_DP

7 Ground 8 USB2.0-

9 USB2.0+ 10 Ground

11 USB2.0+ 12 USB2.0-

13 Ground 14 USB3_TX_C_DP

15 USB3_TX_C_DN 16 Ground

17 USB3_RX_DP 18 USB3_RX_DN

19 Power 20 No Pin

10 11

JUSB1: USB 2.0 Connector

This connector allows you to connect USB 2.0 ports on the front panel.



Important



Note that the VCC and Ground pins must be connected correctly to avoid possible

damage.



In order to recharge your iPad, iPhone and iPod through USB ports, please install

MSI Center utility.

Pin Signal Name Pin Signal Name

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 Ground 8 Ground

9 No Pin 10 NC

2 10
