MSI B85-G43 Series User Manual

Appendix A
A-3 Realtek Audio
Device Selection
Here you can select a audio output source to change the related options. The check
sign (in orange) indicates the devices as default.
Volume Adjustment
You can control the volume or balance the right/left side of the speakers that you
plugged in front or rear panel by adjust the bar.
Application Enhancement
The array of options will provide you a complete guidance of anticipated sound e󰘯ect
for both output and input device.
Jack status panel
This panel depicts all render and capture devices currently connected with your
computer.

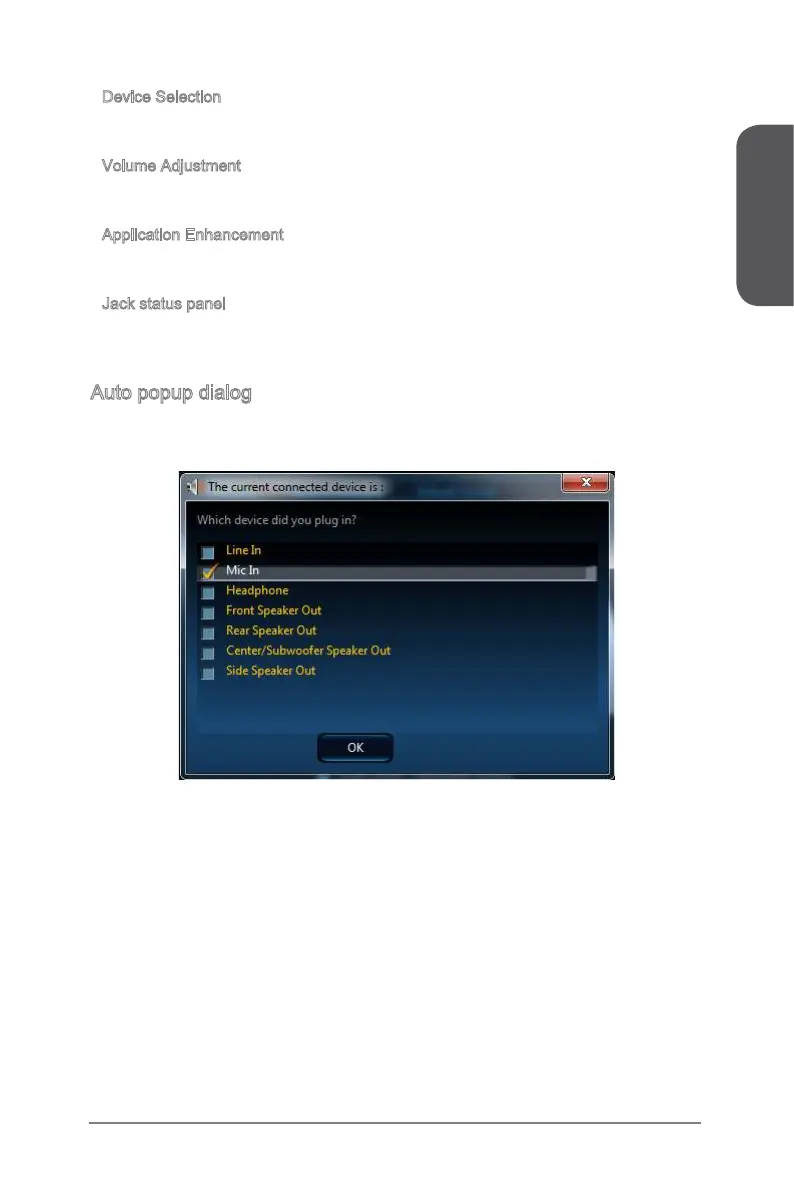

Auto popup dialog
When you plug into the device at the jack, a dialogue window will pop up asking you
which device is current connected.
As you know, each jack corresponds to its default setting, you can refer to the next
section Hardware Default Setting.
󰁈
󰁈
󰁈
󰁈

MSI B85-G43 Series Specifications

General

Chipset	Intel B85
Socket	LGA 1150
Memory Support	DDR3
Max Memory	32GB
Memory Standard	DDR3 1066/1333/1600 MHz
Form Factor	ATX
PCIe x1 Slots	2
PCI Slots	3
SATA 6Gb/s	4
SATA 3Gb/s	2
Audio	Realtek ALC892
Memory Slots	4
USB 3.0 Ports	4
USB 2.0 Ports	8
Ethernet	Realtek 8111G
RAID Support	RAID 0, RAID 1, RAID 5, and RAID 10
Onboard Video	Supported only by CPU with integrated graphics
