Ventilator
The ventilator on the enclosure is used for air convection and to prevent
the equipment from overheating� Do not cover the ventilator�
19
Power Supply Switch
Switch this switch to
I
can turn on the power supply� Switch it to
0
to cut
o the power circulation.
20
Power Jack
Power supplied through this jack supplies power to your system�
21
LED Button
Press the button to turn on or o the LED.
22
ODD Eject Button
Press the button to eject the optical disc drive�
23

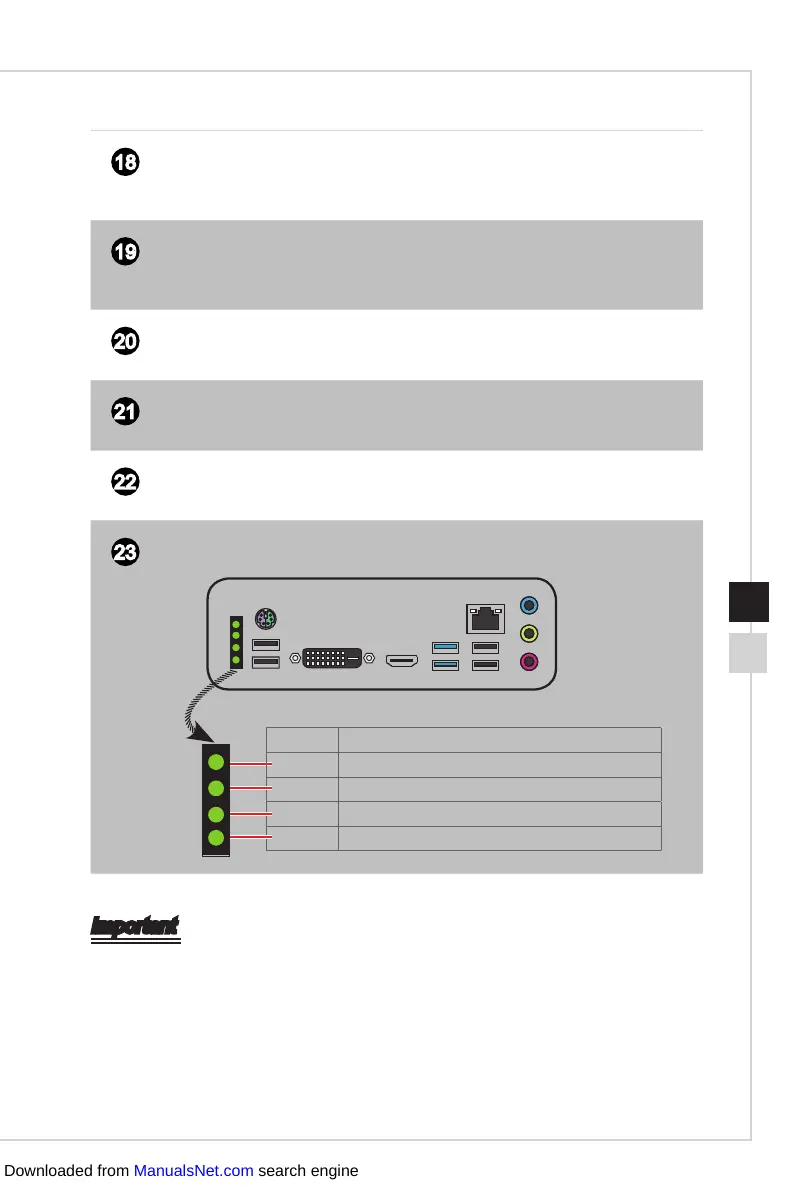

Debug LED
LED Description
CPU Indicates CPU is not detected or fails�
DRAM Indicates DRAM is not detected or fails�
VGA Indicates GPU is not detected or fails�
BOOT Indicates the booting device is not detected or fails�
Important
High-speed devices are recommended for USB 3�1 ports whereas low-speed devices,
such as mouse or keyboard, are suggested to be plugged into the USB 2�0 ports�
