Overview
1-71-6
11

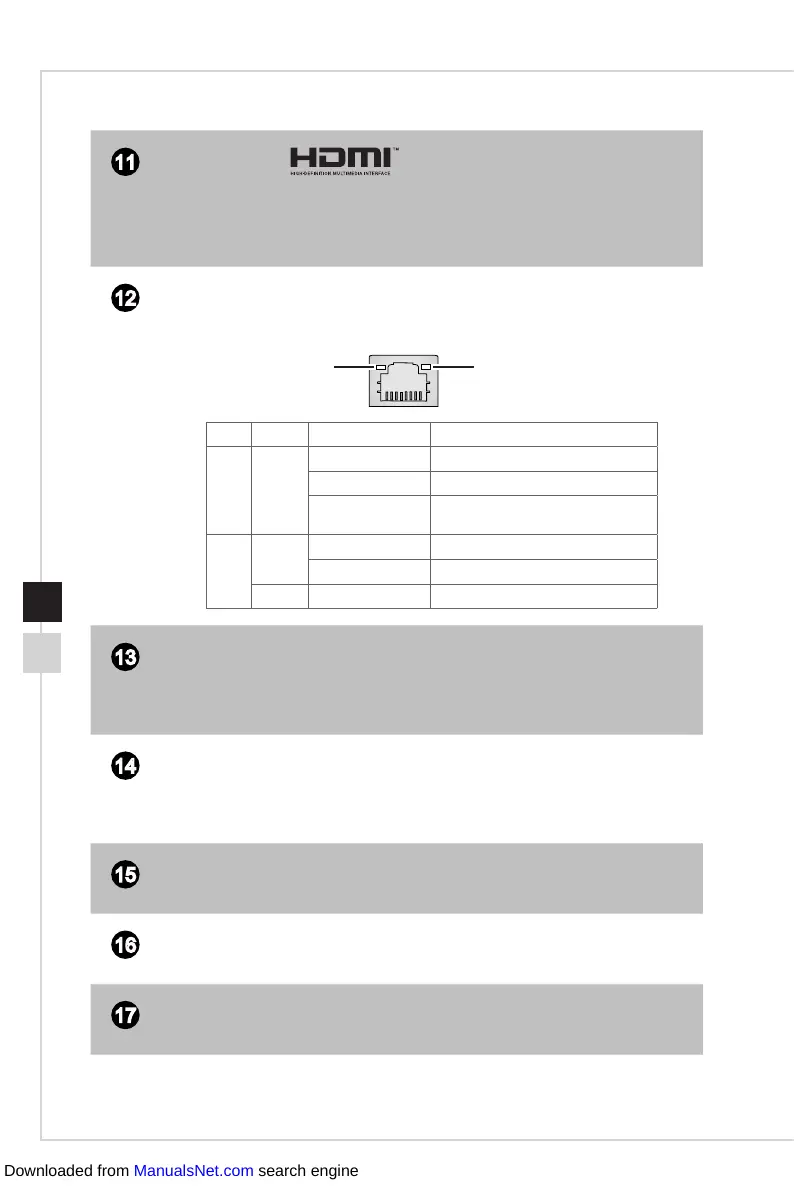

HDMI-Out Port
The High-Denition Multimedia Interface (HDMI) is an all-digital audio/
video interface capable of transmitting uncompressed streams� HDMI
supports all TV format, including standard, enhanced, or high-denition
video, plus multi-channel digital audio on a single cable�
12
LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local
Area Network (LAN)� You can connect a network cable to it�
Green/ OrangeYellow
LED Color LED State Condition
Left Yellow O LAN link is not established�
On (steady state) LAN link is established�
On (blinking) The computer is communicating with
another computer on the LAN�
Right Green O 10 Mbit/sec data rate is selected�
On 100 Mbit/sec data rate is selected�
Orange On 1000 Mbit/sec data rate is selected�
13
USB 3.1 Gen 1 Port
USB 3�1 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-speed
data transfer for various devices, such as storage devices, hard drives,
video cameras, etc�
14
USB 2.0 Port
The USB (Universal Serial Bus) port is for attaching USB devices such
as keyboard, mouse, or other USB-compatible devices� It supports up to
480Mbit/s (Hi-Speed) data transfer rate�
15
Line-In Jack
Used for connecting external audio outputting devices�
16
Line-Out Jack
Used as a connector for speakers or headphones�
17
Microphone Jack
This connector is provided for microphones�
