37
Overview of Components

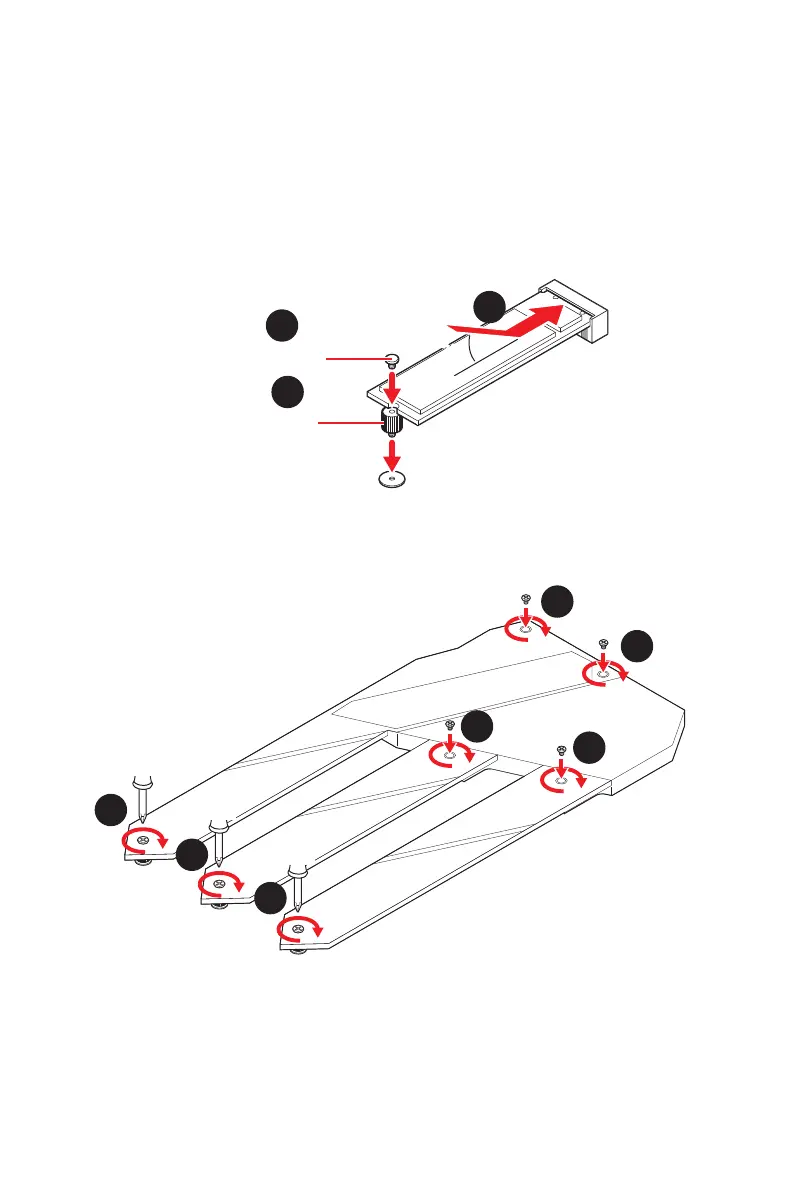

3. For 2242/ 2260 M.2 SSD, please move and fasten the M.2 standoff to the
appropriate position to your M.2 SSD.
For 2280 M.2 SSD, please skip this step.
For 22110 M.2 SSD, please remove the M.2 standoff.
4. Insert your M.2 SSDs into the M.2 slots at a 30-degree angle.
5. If the M.2 SSD is shorter than the M.2 SHIELD FROZR heatsink, please secure the
M.2 SSD in place with M.2 screw. If the length of M.2 SSD equals the M.2 SHIELD
FROZR heatsink, please skip this step.
6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
30º30º
5
4
3
M.2 screw
M.2 Standoff
6
6
6
6
6
6
6
