MSI Creator X299 - M2_1~3: M.2 Slots (Key M)

36
Overview of Components
M2_1~3: M.2 Slots (Key M)

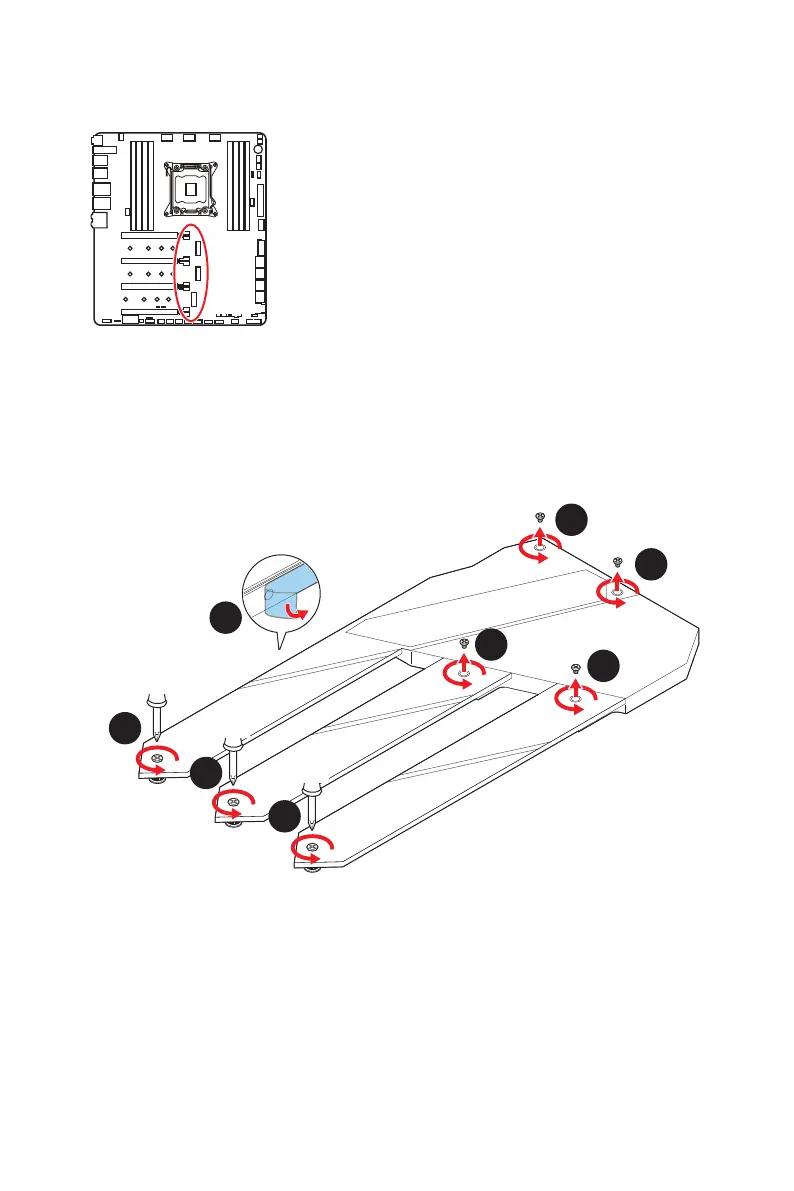

Installing M.2 module
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Lift the M.2 SHIELD FROZR heatsink and remove the protective films from the
thermal pads.
2
1
1
1
1
1
1
1
⚠
Important
∙ Intel
®
RST only supports PCIe M.2 SSD with UEFI ROM.
∙ Intel
®
Optane™ Memory Ready for M2_1 slot.
∙ M2_2 & M2_3 slots only support PCIe 3.0 interface.
M2_1
M2_2
M2_3
