Overview of Components
+
+
9
10
11
12
13
1
2 10
9
+ -
HDD LED
JFP1
PCI_E1/ PCI_E3

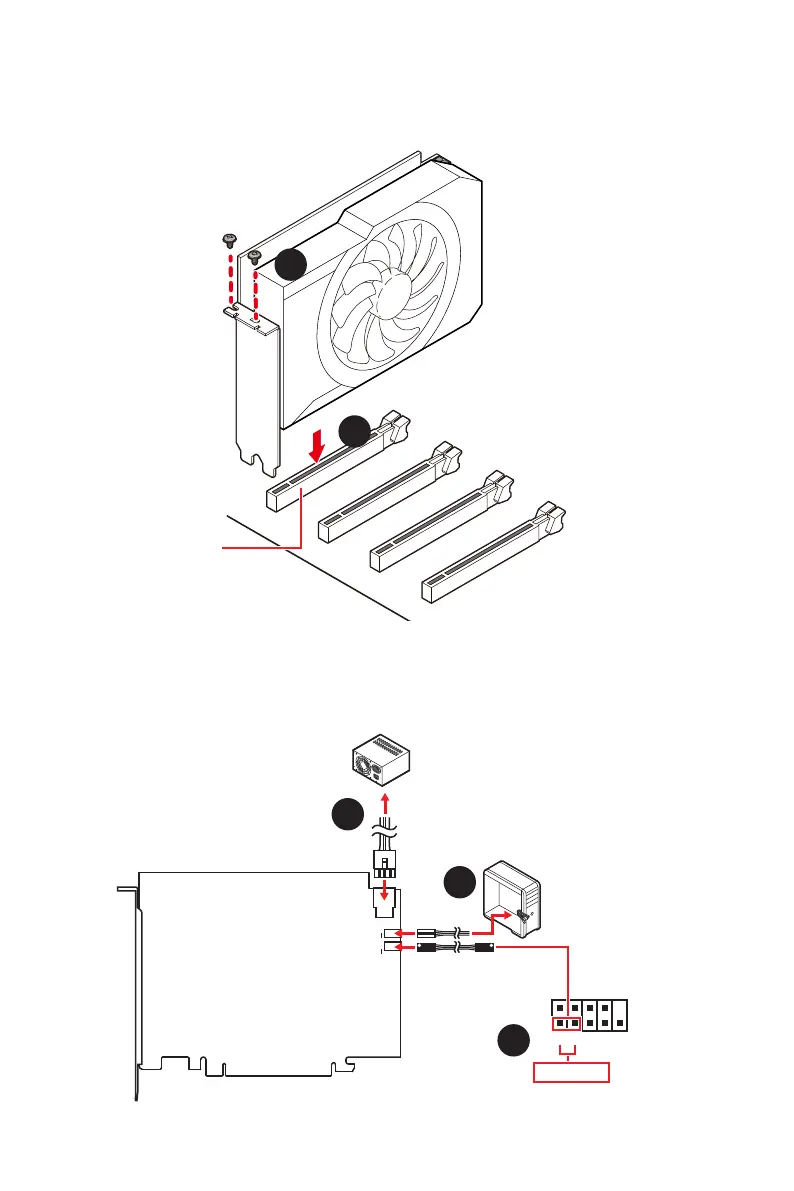

9. Insert the M.2 XPANDER-AERO card into the PCI_E1 or PCI_E3 slot.
10. Use the screw to secure the M.2 XPANDER-AERO card.
11. Connect the PCIE_PWR1 to the power supply.
12. Connect the case’s HDD LED cable to the JCASE connector.
13. Using the supplied HDD LED cable to connect the JMB connector and JFP1’s HDD
pins (pin 1 & pin3).
PCIE_PWR1
JCASE
JMB
